Home > M80-8871201
Active Product

M80-8871201

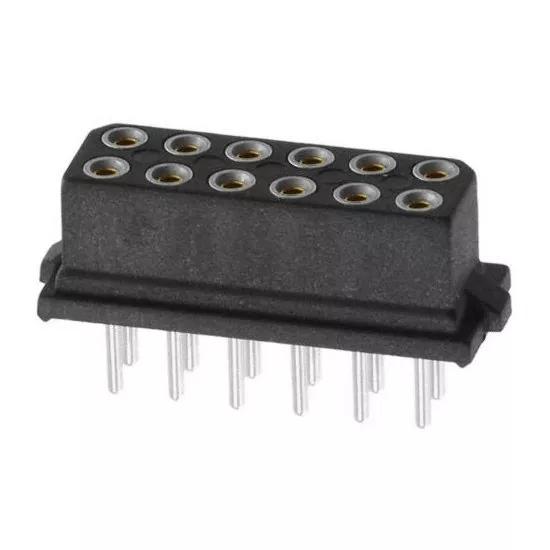

6+6 Pos. Female DIL Vertical Throughboard Conn. for Latches

2.00mm Pitch High-Reliability Connector - Datamate L-Tek

Add to Favorites

50 in stock   Check availability

3 similiar products View products

Samacsys account required

Download

No login is required

Product Description

  • Double Row female connector, 12 (6+6) x 3mm PC Tail contacts – Gold finish on contact area, Tin/Lead finish on termination.
  • If mating to a latched male connector, additional clearance holes in PCB are required.
  • For complete pin numbering or pin out information, see Component Specification C005XX.

Technical Details

Specification

Contact Pitch:

2.00mm (0.079")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

Ø0.5mm

Current Rating:

3.3A max individual contact, 3A max simultaneous (25°C)

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 235°C for 5 seconds

Style of Latches:

Compatible with latches

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

12

Entry Style:

Top Entry

Materials

Finish / Plating on Termination:

Tin/Lead

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper contact clip, Brass shell

Housing Material:

PBT

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Dimensions

Individual Part Weight:

0.826g

Overall Dimensions (L x W x D) in mm:

15.15 max x 3.40 x 8.10

Height of Connector above PCB:

5.10mm

Length of Throughboard Tail:

3.00mm

Frequently Asked Questions Ask a Question

Do you have a tool to help separate this connector when it is latched to the mating half?

The tool you need is the Z80-299. This is a kit of a handle, cross-bars and two latch separators, and has instructions to help you assemble the tool to the right size for your connector.

Was this answer useful?

Downloads

TECHNICAL DOCUMENTS

TEST REPORTS

ENVIRONMENTAL COMPLIANCE

Not RoHS Compliant (2015/863/EU)
