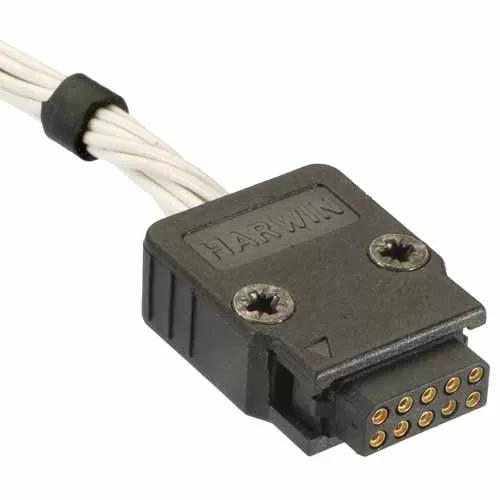

Use with Datamate L-Tek female Double Row crimp connector 26 (13+13) contacts, mate with male unlatched connectors only.
Hood kit of parts, including: body, cover, cable clamp and screws. See instruction sheet IS-08 for advice on use.
For complete pin numbering or pin out information, see the Component Specification C005XX.
Checking stock availability...
Technical Drawings & CADs
Jump to technical details
Technical Drawing
View
TraceParts
CAD/ECAD
TraceParts
3D Viewer
SamacSys
3D Model, PCB Symbol & Footprint
Related Products
Further Details
Jump To:
Technical Details
Product Characteristics
Materials
Dimensions
Downloads
Technical Documentation
Product Information
Environmental Compliance
Technical Details
Product Characteristics
End Stackable
No
Latching Style
None
Number of Rows
2
Connector Orientation
Straight
Country of Origin
GB
Side Stackable
No
Number of Signal Contacts
26
Operating Temperature
-55°C to +125°C
RoHS Status
RoHS Compliant (2015/863/EU) with no Exemption required
Current Rating
3.3A max individual contact, 3A max simultaneous (25°C)
Polarised
No
Cuttable
No
Materials
Housing Material
PBT
Flammability Rating
UL94V-0
Packaging Style
Single Pack
Housing Colour
Black
Dimensions
Contact Pitch
2.00mm (0.079")
Weight
4.119g
Dimensions
20.00 x 32.30 x 7.71 max
Downloads
Technical Documentation
Technical Drawing / Datasheet - M80-880.pdf
C005XX Component Specification - Datamate M80 and M83 Series (2.00mm + 4.00mm pitch High-Reliability)
C049XX Component Specification - Cable Assembly Specifications for all HRi products
Outgassing data for Harwin products (plastics)
Product Information
Product Training Module - Overview Guide to the Datamate range + 2 & 4mm pitch High-Reliability
Product Training Module - Cable Connectors and Assemblies from Harwin
Product Training Module - Cable Products from Harwin
IS-08 - M80-880 Datamate Cable Hood Instruction Sheet
Distributor part numbers for suitable cables for Datamate + Gecko + M300 & Kona
Product Datasheet - Datamate range: signal connectors (HRi)
Environmental Compliance
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement
Material composition for M80-880 series
RoHS Declaration - M80-8802698
