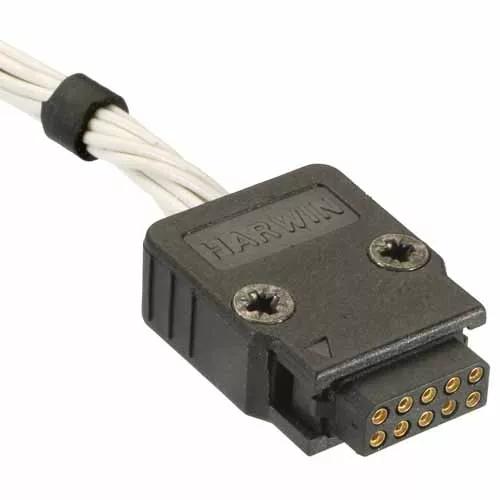

8+8 Pos. Female Plastic Hood/Backshell

HRi

Traceparts account required

M80-8801698

8+8 Pos. Female Plastic Hood/Backshell


2.00mm Pitch High-Reliability Connector - Datamate L-Tek

  • Use with Datamate L-Tek female Double Row crimp connector 16 (8+8) contacts, mate with male unlatched connectors only.

  • Hood kit of parts, including: body, cover, cable clamp and screws. See instruction sheet IS-08 for advice on use.

  • For complete pin numbering or pin out information, see the Component Specification C005XX.

View Technical Details & Downloads


Checking stock availability...

Check Availability

Further Details

Jump To:

Technical Details

Product Characteristics

Materials

Dimensions

Downloads

Technical Documentation

Product Information

Environmental Compliance

Technical Details

Product Characteristics

  • End Stackable:

    No

  • Latching Style:

    None

  • Number of Rows:

    2

  • Connector Orientation:

    Straight

  • Country of Origin:

    GB

  • Side Stackable:

    No

  • Number of Signal Contacts:

    16

  • Operating Temperature:

    -55°C to +125°C

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with no Exemption required

  • Current Rating:

    3.3A max individual contact, 3A max simultaneous (25°C)

  • Polarised:

    No

  • Cuttable:

    No

Materials

  • Housing Material:

    PBT

  • Flammability Rating:

    UL94V-0

  • Packaging Style:

    Single Pack

  • Housing Colour:

    Black

Dimensions

  • Contact Pitch:

    2.00mm (0.079")

  • Weight:

    3.103g

  • Dimensions:

    20.00 x 22.30 x 7.71 max

Downloads

    Technical Documentation

  • Technical Drawing / Datasheet - M80-880.pdf

  • C005XX Component Specification - Datamate M80 and M83 Series (2.00mm + 4.00mm pitch High-Reliability)

  • C049XX Component Specification - Cable Assembly Specifications for all HRi products

  • Outgassing data for Harwin products (plastics)

  • Product Information

  • Product Training Module - Overview Guide to the Datamate range + 2 & 4mm pitch High-Reliability

  • Product Training Module - Cable Connectors and Assemblies from Harwin

  • Product Training Module - Cable Products from Harwin

  • IS-08 - M80-880 Datamate Cable Hood Instruction Sheet

  • Distributor part numbers for suitable cables for Datamate + Gecko + M300 & Kona

  • Product Datasheet - Datamate range: signal connectors (HRi)

  • Environmental Compliance

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Environmental Legislation Statement - includes all material legislations

  • Material composition for M80-880 series

  • RoHS - M80-8801698
