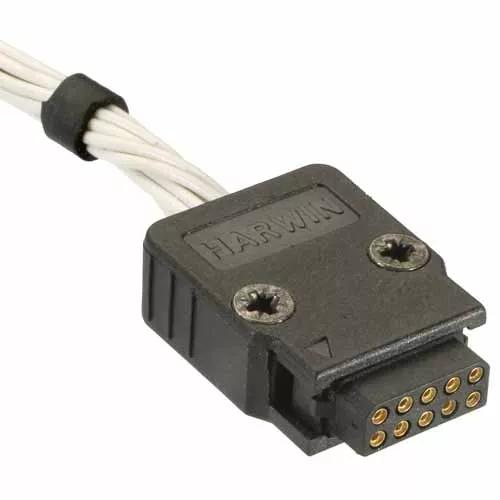

M80-8801298
6+6 Pos. Female Plastic Hood/Backshell
2.00mm Pitch High-Reliability Connector - Datamate L-Tek
In stock Check availability
2 similar products View products
Traceparts account required
Product Description
- Use with Datamate L-Tek female Double Row crimp connector 12 (6+6) contacts, mate with male unlatched connectors only.
- Hood kit of parts, including: body, cover, cable clamp and screws.
- For complete pin numbering or pin out information, see Component Specification C005XX.
Traceparts account required
Technical Details
Specification
EU RoHS Status:
Contact Pitch:
2.00mm (0.079")
Current Rating:
3.3A max individual contact, 3A max simultaneous (25°C)
Operating Temperature:
-55°C to +125°C
Polarising Features:
No
End Stackable:
No
Side Stackable:
No
Can be cut to another size:
No
Number of Rows:
2
Number of Signal Contacts:
12
Materials
Housing Material:
PBT
Housing Colour:
Black
Housing Material UL Rating:
UL94V-0
Packaging Style:
Single Pack
Dimensions
Individual Part Weight:
2.685g
Overall Dimensions (L x W x D) in mm:
20.00 x 18.30 x 7.71 max
