M80-8770322

3 Pos. Male SIL Vertical Throughboard Conn. Latches

2.00mm Pitch High-Reliability Connector - Datamate L-Tek

Order Sample

Add to Favorites

In stock Check availability

8 similar products View products

Traceparts account required

Product Description

Single Row, 3 x 3mm PC Tail contacts – Gold finish on contact area, Tin/Lead finish on termination.
Locking latches – tooling required to separate mated connectors.
For complete pin numbering or pin out information, see Component Specification C005XX.

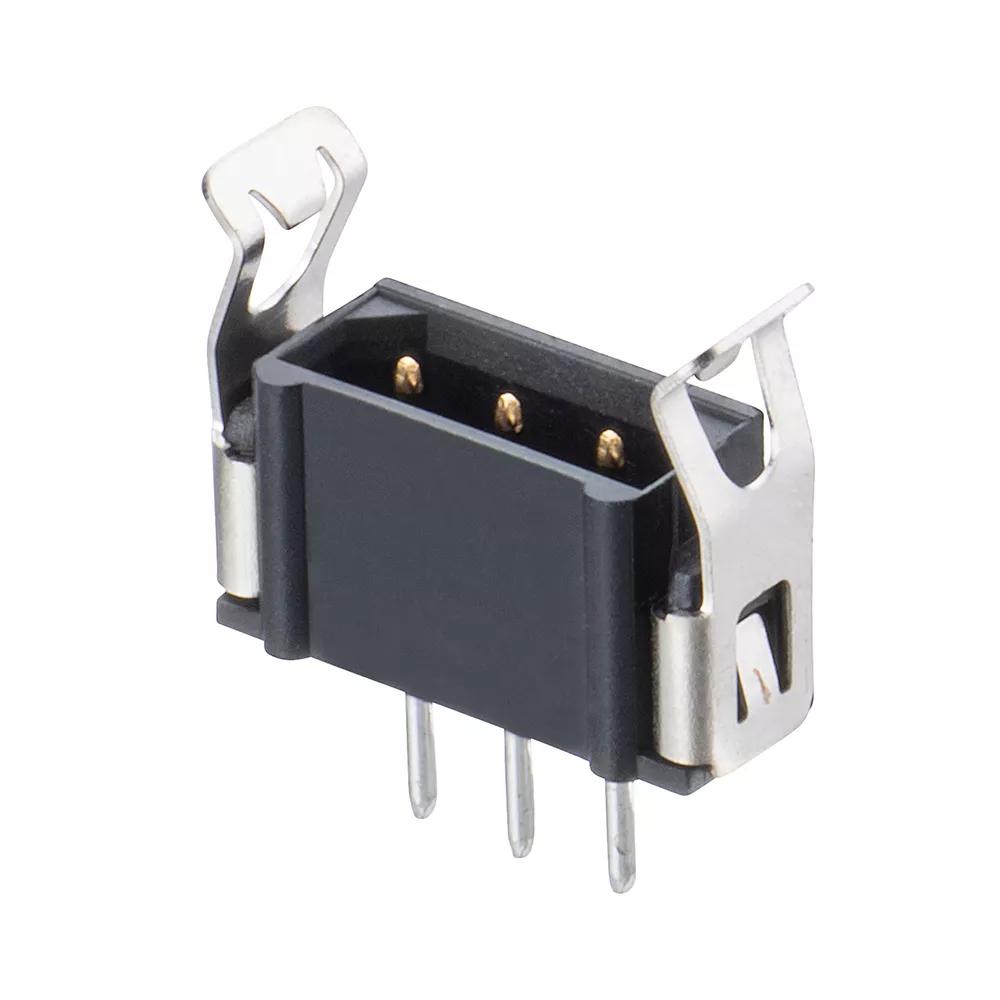

M80-8770322 - 3 Pos. Male SIL Vertical Throughboard Conn. Latches

Traceparts account required

Technical Details

EU RoHS Status:

Not RoHS Compliant (2015/863/EU)

Contact Pitch:

2.00mm (0.079")

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

Ø0.5mm

Current Rating:

3.3A max individual contact, 3A max simultaneous (25°C)

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 235°C for 5 seconds

Style of Latches:

Locking Latch

Polarising Features:

Yes

End Stackable:

Side Stackable:

Can be cut to another size:

Number of Rows:

Number of Signal Contacts:

Finish / Plating on Termination:

Tin/Lead

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

PBT

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Individual Part Weight:

0.316g

Overall Dimensions (L x W x D) in mm:

10.10 x 3.85 x 11.35

Height of Connector above PCB:

8.35mm

Length of Throughboard Tail:

3.00mm

Mating Profiles:

Catalog page - Datamate L-Tek Mating Profiles

Frequently Asked Questions Ask a Question

The tool you need is the Z80-299. This is a kit of a handle, cross-bars and two latch separators, and has instructions to help you assemble the tool to the right size for your connector.

Was this answer useful?
