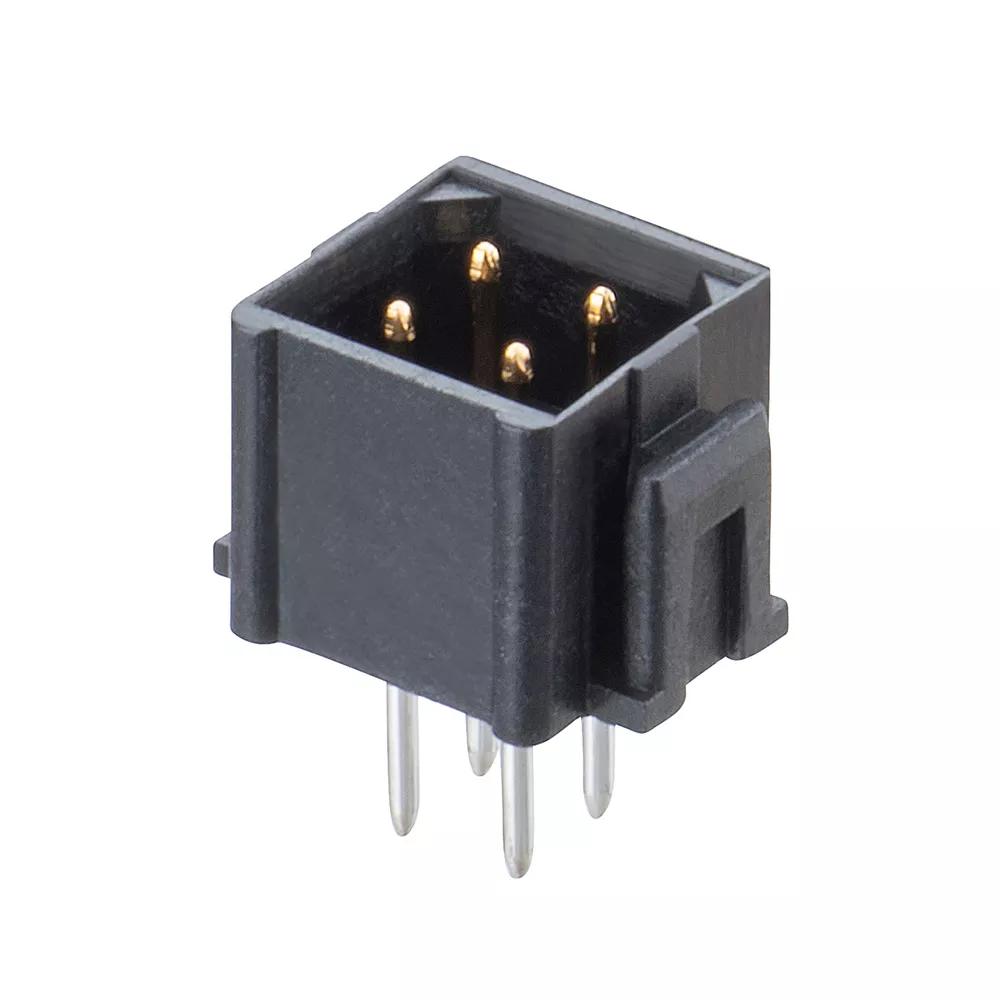

2+2 Pos. Male DIL Vertical Throughboard Conn. No Latches
2.00mm Pitch High-Reliability Connector - Datamate L-Tek
- Double Row, 4 (2+2) x 3mm PC Tail contacts – Gold finish on contact area, Tin/Lead finish on termination.
- Unlatched (latches not fitted).
- For complete pin numbering or pin out information, see Component Specification C005XX.
EU RoHS Status:
PC Tail / Throughboard
Mating Pin Size:
3.3A max individual contact, 3A max simultaneous (25°C)
-55°C to +125°C
Max Solder Temperature: 235°C for 5 seconds
Style of Latches:
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Termination:
Finish / Plating on Contact Surface:
Base Material of Contact:
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
7.60 x 5.85 x 8.40
Height of Connector above PCB:
Length of Throughboard Tail:
