Home > M80-8670605
Active Product

M80-8670605

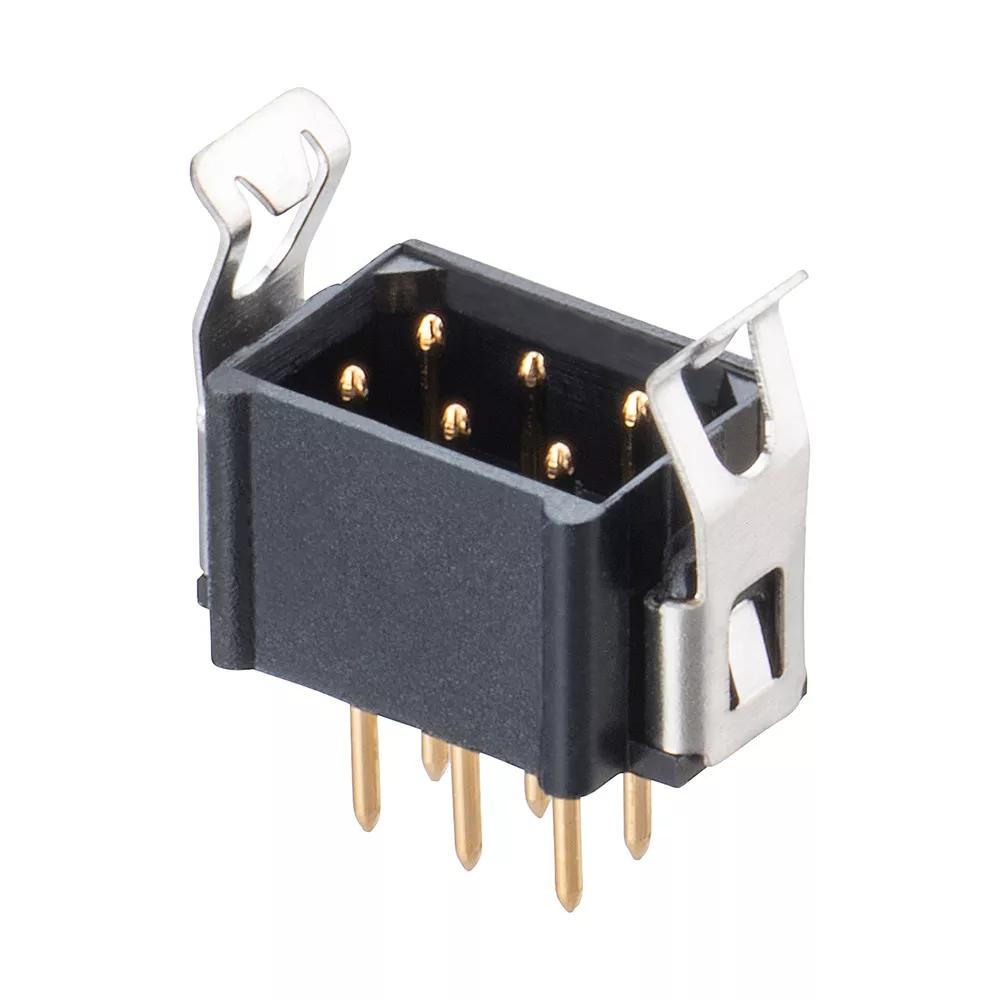

3+3 Pos. Male DIL Vertical Throughboard Conn. Latches

2.00mm Pitch High-Reliability Connector - Datamate L-Tek

Add to Favorites

Loading…   Check availability

8 similar products View products

Traceparts account required

Product Description

  • Double Row, 6 (3+3) x 3mm PC Tail contacts – Gold finish on contact area and termination.
  • Locking latches – tooling required to separate mated connectors.
  • For complete pin numbering or pin out information, see Component Specification C005XX.

Technical Details

Specification

Contact Pitch:

2.00mm (0.079")

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

Ø0.5mm

Current Rating:

3.3A max individual contact, 3A max simultaneous (25°C)

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 235°C for 5 seconds

Style of Latches:

Locking Latch

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

6

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

PBT

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Dimensions

Individual Part Weight:

0.413g

Overall Dimensions (L x W x D) in mm:

10.10 x 5.85 x 11.35

Height of Connector above PCB:

8.35mm

Length of Throughboard Tail:

3.00mm

Frequently Asked Questions Ask a Question

Do you have a tool to help separate this connector when it is latched to the mating half?

The tool you need is the Z80-299. This is a kit of a handle, cross-bars and two latch separators, and has instructions to help you assemble the tool to the right size for your connector.

Was this answer useful?

Downloads

TECHNICAL DOCUMENTS

TEST REPORTS

ENVIRONMENTAL COMPLIANCE

Not RoHS Compliant (2015/863/EU)

PDF Download

INSTRUCTION SHEETS

OTHER DOWNLOADS

How can we help you?

If you would like to talk to someone about Harwin’s product, technical knowledge or documentation, contact one of our Experts for assistance.


Contact us
