M80-8542642

13+13 Pos. Male DIL Vertical Throughboard Conn. No Latches

2.00mm Pitch High-Reliability Connector - Datamate L-Tek

Order Sample

Add to Favorites

Loading… Check availability

6 similar products View products

Traceparts account required

Product Description

Double Row, 26 (13+13) x 3mm PC Tail contacts – Gold finish on contact area, Tin finish on termination.
Unlatched (latches not fitted).
For complete pin numbering or pin out information, see Component Specification C005XX.

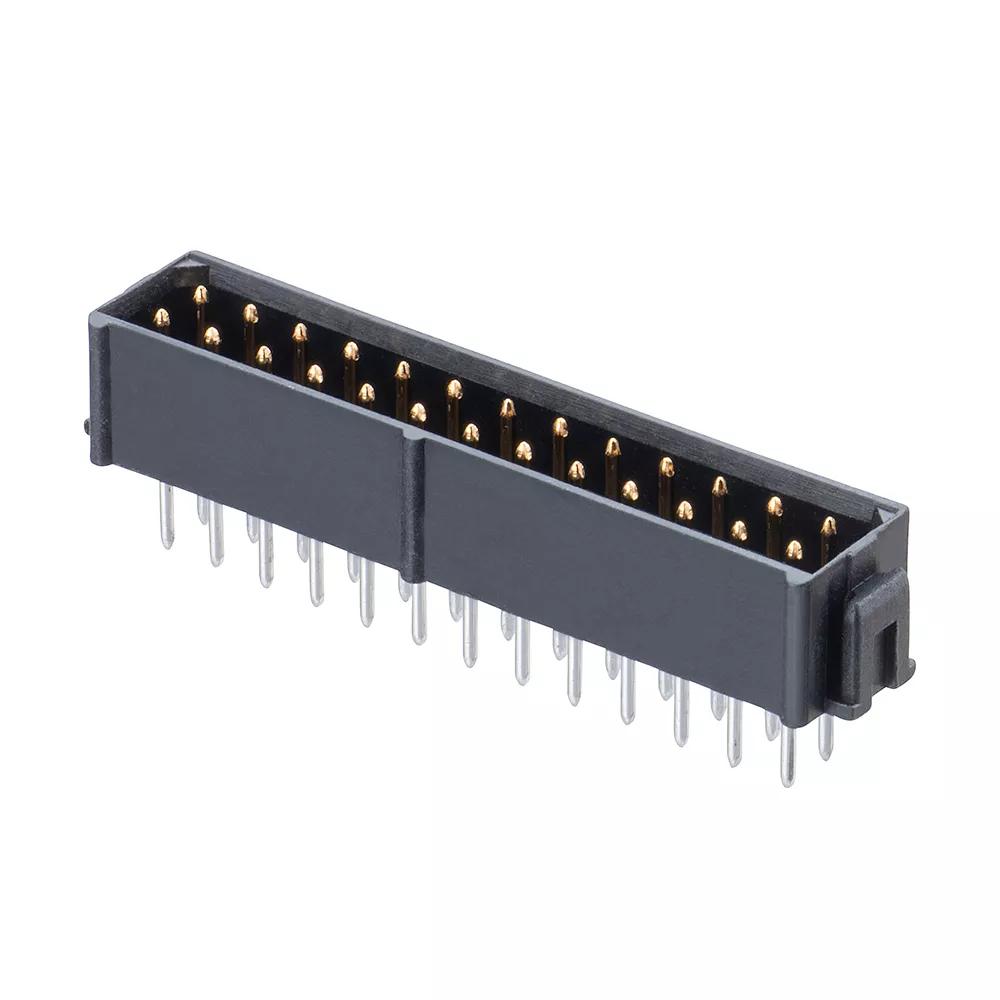

M80-8542642 - 13+13 Pos. Male DIL Vertical Throughboard Conn. No Latches

Traceparts account required

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with no Exemption required

Contact Pitch:

2.00mm (0.079")

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

Ø0.5mm

Current Rating:

3.3A max individual contact, 3A max simultaneous (25°C)

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Style of Latches:

None

Polarising Features:

Yes

End Stackable:

Side Stackable:

Can be cut to another size:

Number of Rows:

Number of Signal Contacts:

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

PPS

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Individual Part Weight:

1.065g

Overall Dimensions (L x W x D) in mm:

29.60 x 5.85 x 8.40

Height of Connector above PCB:

5.40mm

Length of Throughboard Tail:

3.00mm

Mating Profiles:

Catalog page - Datamate L-Tek Mating Profiles
