M80-8540645

M80-8540645

3+3 Pos. Male DIL Vertical Throughboard Conn. No Latches

HRi
HRi

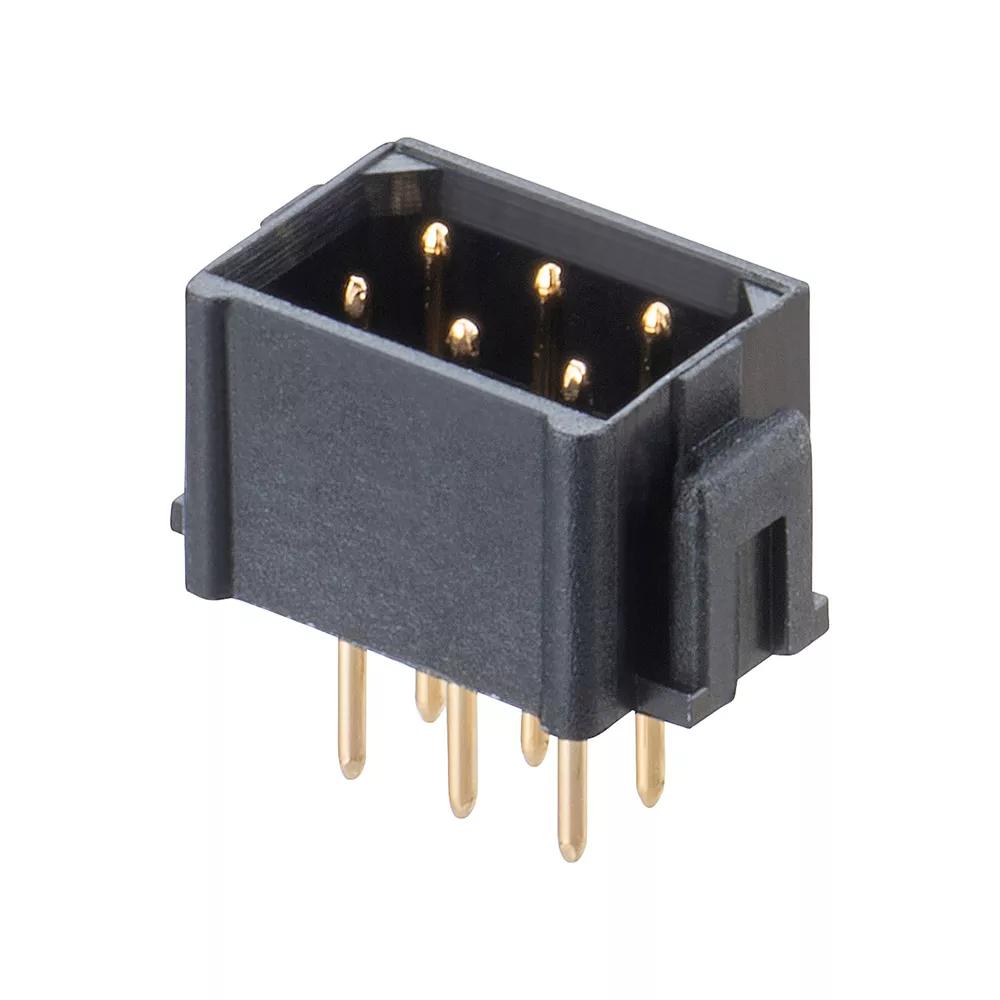

Image may be representative. Refer to the product title for more information.

M80-8540645

3+3 Pos. Male DIL Vertical Throughboard Conn. No Latches

2.00mm Pitch High-Reliability Connector - Datamate L-Tek

  • Double Row, 6 (3+3) x 3mm PC Tail contacts - Gold finish on contact area and termination.

  • Unlatched (latches not fitted).

  • For complete pin numbering or pin out information, see the Component Specification C005XX.

Checking stock availability...

Technical Drawings & CADs

Jump to technical details

  • TraceParts

    CAD/ECAD

  • TraceParts

    3D Viewer

  • SamacSys

    3D Model, PCB Symbol & Footprint

Further Details

Jump To:

Technical Details

Product Characteristics

Materials

Dimensions

Downloads

Product Change Notifications

Technical Documentation

Product Information

Test Reports

Environmental Compliance

Technical Details

Product Characteristics

  • End Stackable

    No

  • Latching Style

    None

  • Mating Pin Size

    Ø0.5mm

  • Number of Rows

    2

  • Connector Orientation

    Vertical

  • Country of Origin

    GB

  • Side Stackable

    No

  • Number of Signal Contacts

    6

  • Operating Temperature

    -55°C to +125°C

  • RoHS Status

    RoHS Compliant (2015/863/EU) with no Exemption required

  • Current Rating

    3.3A max individual contact, 3A max simultaneous (25°C)

  • Soldering Data

    Max Solder Temperature: 260°C for 10 seconds

  • Polarised

    Yes

  • Cuttable

    No

Materials

  • Finish / Plating on Contact Surface

    Gold

  • Housing Material

    PPS

  • Base Material of Contact

    Phosphor Bronze

  • Flammability Rating

    UL94V-0

  • Packaging Style

    Tube

  • Finish / Plating on Termination

    Gold

  • Housing Colour

    Black

Dimensions

  • Contact Pitch

    2.00mm (0.079")

  • Weight

    0.314g

  • Dimensions

    9.60 x 5.85 x 8.40

  • PC Tail Length

    3.00mm

  • Height of Connector above PCB

    5.40mm

Downloads

Product Change Notifications

  • Product Change Notification 03-Feb-2021 - Datamate L-Tek Throughboard Male

Technical Documentation

  • Technical Drawing / Datasheet - M80-854.pdf

  • C005XX Component Specification - Datamate M80 and M83 Series (2.00mm + 4.00mm pitch High-Reliability)

  • Outgassing data for Harwin products (plastics)

  • Plating thickness on Datamate signal contacts & T-Contact

Product Information

  • Catalog page - Datamate L-Tek Mating Profiles

  • Product Training Module - Overview Guide to the Datamate range + 2 & 4mm pitch High-Reliability

  • Product Training Module - Guide to Datamate Latches (L-Tek) + Jackscrews (J-Tek) and 101Lok

  • Product Training Module - Using the Datamate Strain Relief Strap M80-0030006

  • Product Datasheet - Datamate range: signal connectors (HRi)

Test Reports

  • Test Report HT001 - Datamate Mechanical Endurance - number of cycles + up to 10 +000

  • Test Report HT002 - Datamate Voltage Proof + Voltage Flashover + and Insulation Resistance

  • Test Report HT017 - Datamate L-Tek Contact Resistance after 3 and 15 years Artificial Aging

  • Test Report HT019 - Datamate Frequency Testing to EIA-364-108-2000(2007) + USB2.0

  • Test Report HT025 - Datamate L-Tek Environmental - Detailed Vibration + Shock and Bump

Environmental Compliance

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Environmental Legislation Statement

  • Material composition for M80-854 series

  • RoHS - M80-8540645
