Home > M80-8540642
Active Product

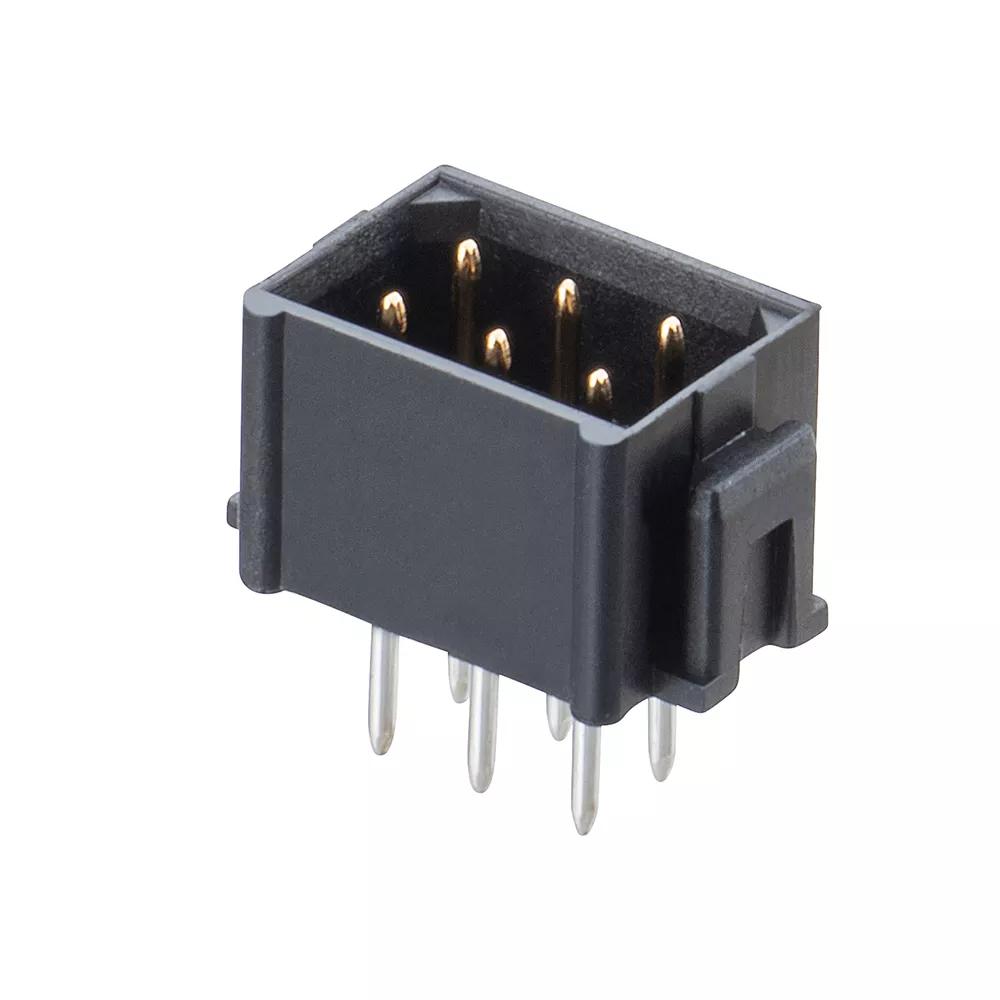

M80-8540642

3+3 Pos. Male DIL Vertical Throughboard Conn. No Latches

2.00mm Pitch High-Reliability Connector - Datamate L-Tek

Add to Favorites

Loading…   Check availability

8 similar products View products

Traceparts account required

Product Description

  • Double Row, 6 (3+3) x 3mm PC Tail contacts – Gold finish on contact area, Tin finish on termination.
  • Unlatched (latches not fitted).
  • For complete pin numbering or pin out information, see Component Specification C005XX.

Technical Details

Specification

Contact Pitch:

2.00mm (0.079")

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

Ø0.5mm

Current Rating:

3.3A max individual contact, 3A max simultaneous (25°C)

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Style of Latches:

None

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

6

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

PPS

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Dimensions

Individual Part Weight:

0.314g

Overall Dimensions (L x W x D) in mm:

9.60 x 5.85 x 8.40

Height of Connector above PCB:

5.40mm

Length of Throughboard Tail:

3.00mm

Frequently Asked Questions Ask a Question

What’s the part number of the latches that go with this connector?

You can fit latches M80-001 to these connectors. However this is not an easy fit to do, and can be slow and time-consuming. We would recommend instead that you purchase the connector with the latches already fitted – M80-8530642.

Was this answer useful?

Downloads

TECHNICAL DOCUMENTS

TEST REPORTS

ENVIRONMENTAL COMPLIANCE

RoHS Compliant (2015/863/EU) with no Exemption required

PDF Download

INSTRUCTION SHEETS

OTHER DOWNLOADS
