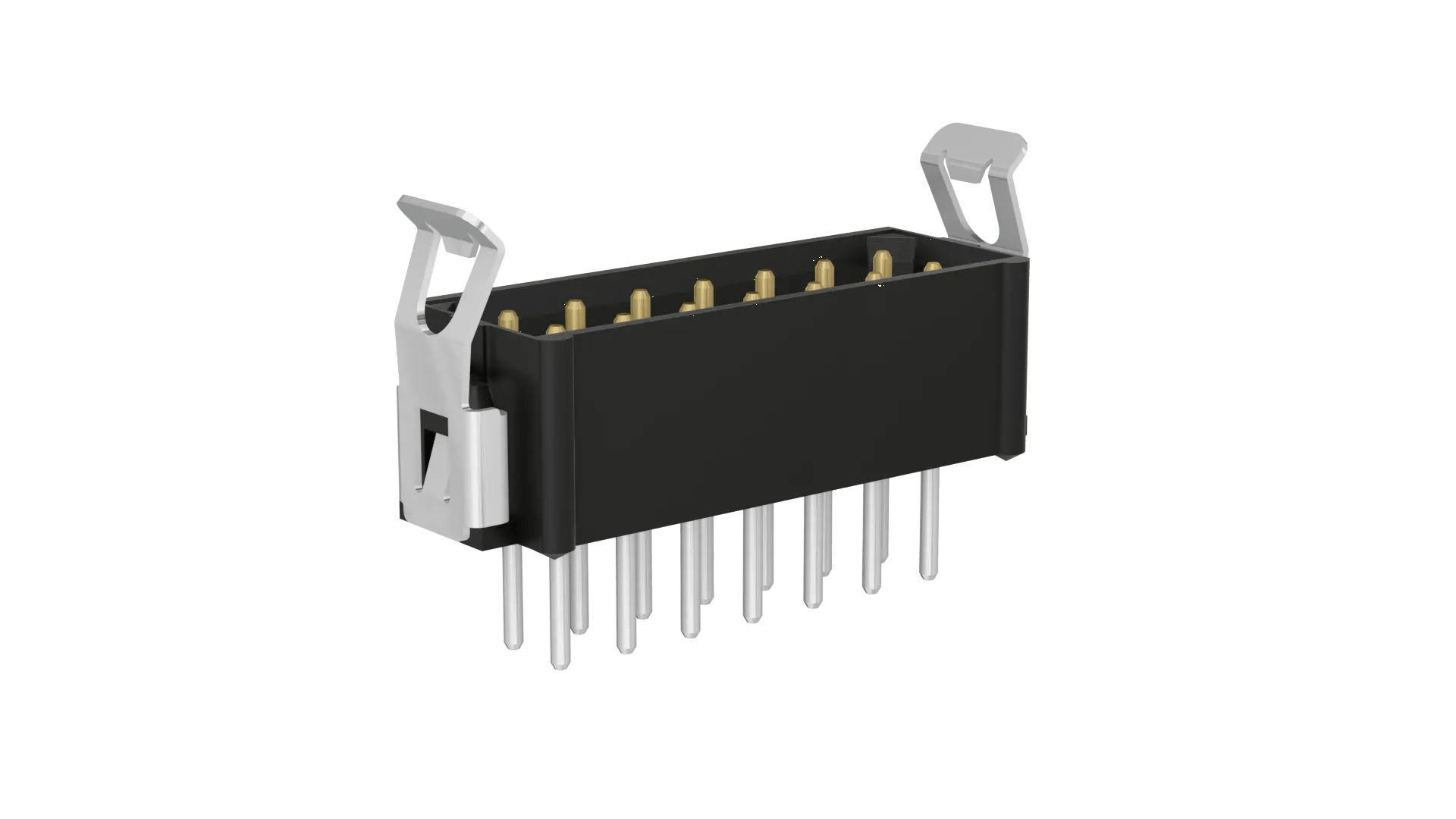

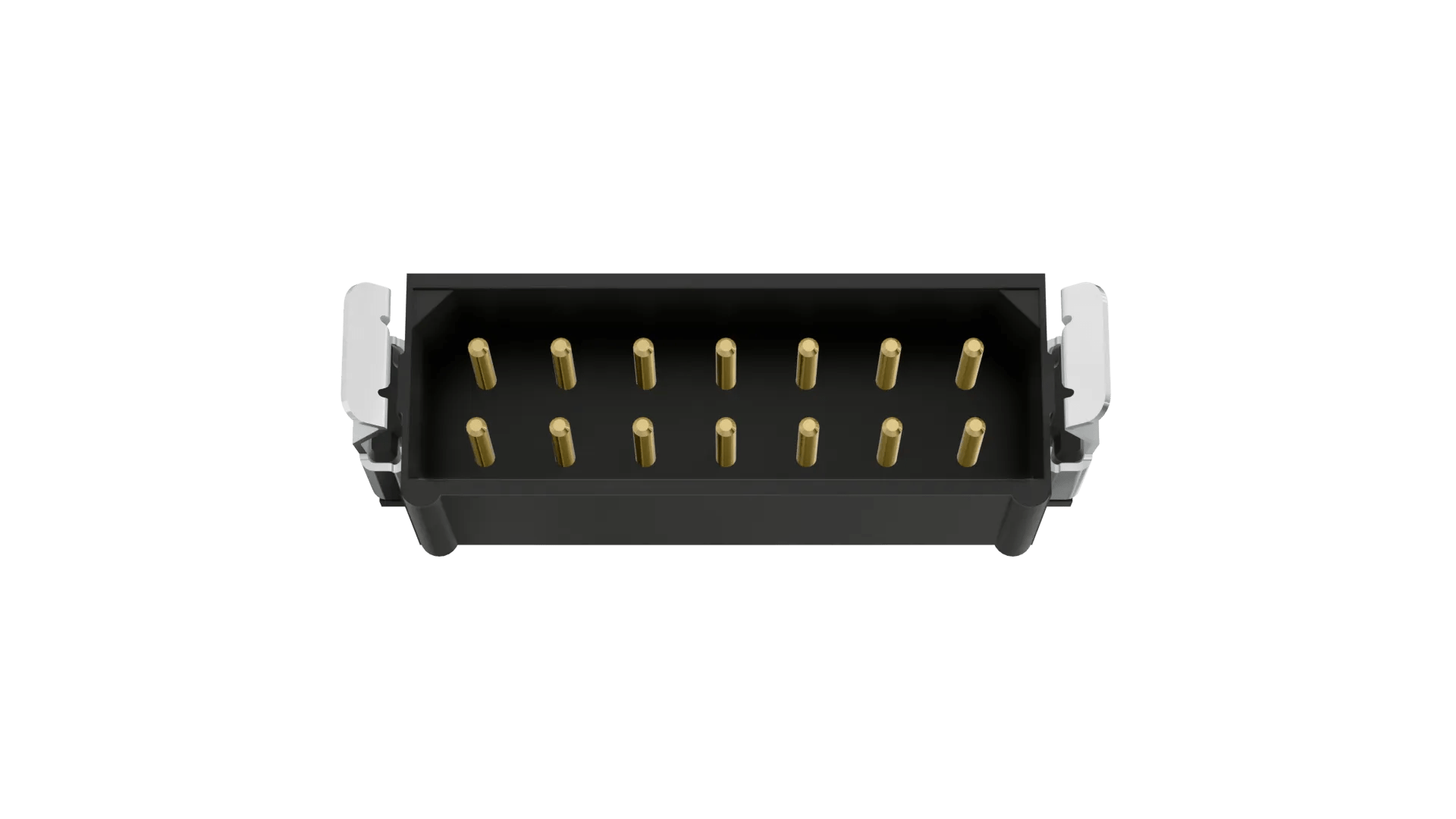

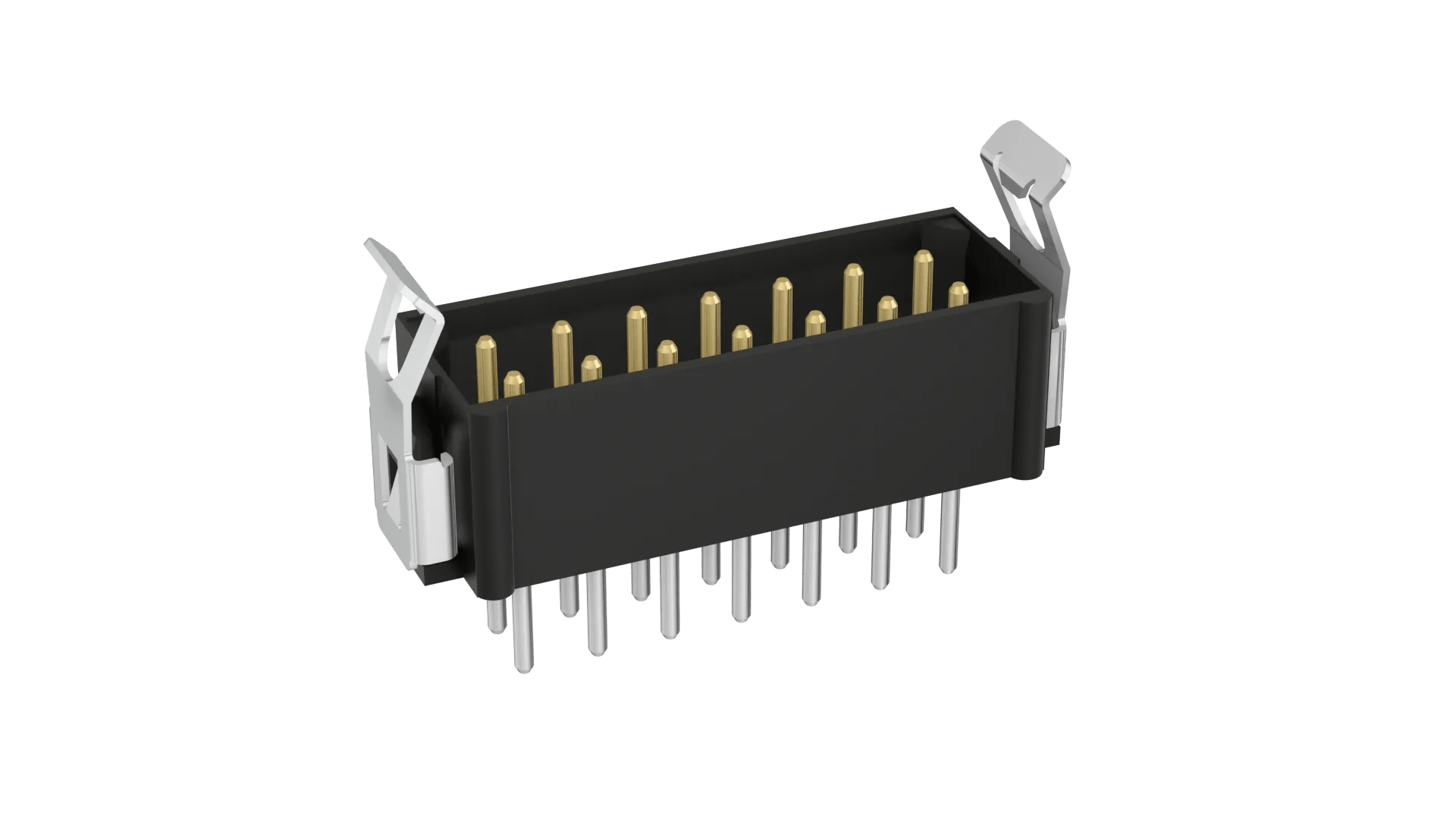

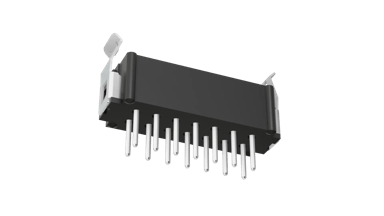

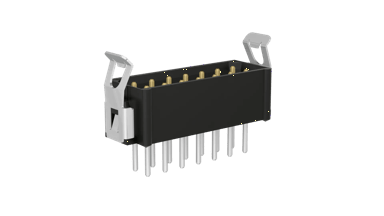

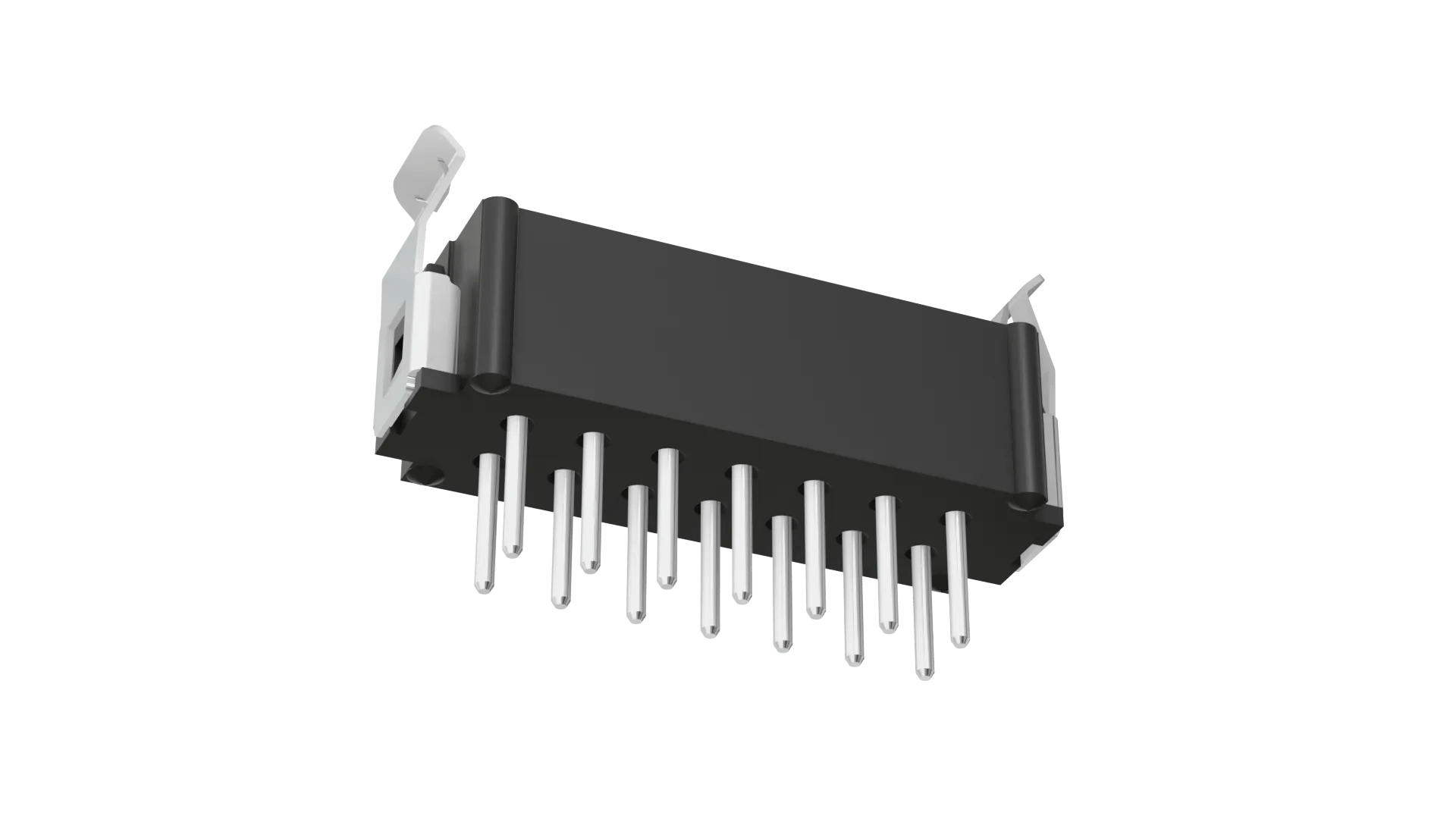

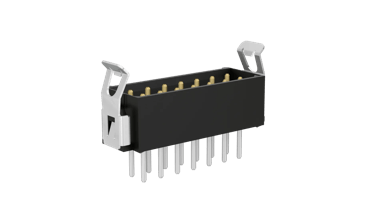

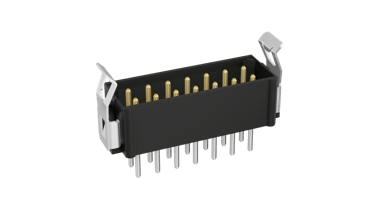

7+7 Pos. Male DIL Vertical Throughboard Conn. Latches
2.00mm Pitch High-Reliability Connector - Datamate L-Tek
- Double Row, 14 (7+7) x 3mm PC Tail contacts – Gold finish on contact area, Tin finish on termination.
- Locking latches – tooling required to separate mated connectors.
- For complete pin numbering or pin out information, see Component Specification C005XX.
EU RoHS Status:
PC Tail / Throughboard
Mating Pin Size:
3.3A max individual contact, 3A max simultaneous (25°C)
-55°C to +125°C
Max Solder Temperature: 260°C for 10 seconds
Style of Latches:
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Termination:
100% Tin over Nickel
Finish / Plating on Contact Surface:
Base Material of Contact:
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
18.10 x 5.85 x 11.35
Height of Connector above PCB:
Length of Throughboard Tail:
Frequently Asked Questions Ask a Question
Do you have a tool to help separate this connector when it is latched to the mating half?
The tool you need is the Z80-299. This is a kit of a handle, cross-bars and two latch separators, and has instructions to help you assemble the tool to the right size for your connector.
Was this answer useful?
RoHS Compliant (2015/863/EU) with no Exemption requiredPDF Download
How can we help you?
Contact one of our technical experts via “Ask an Expert”, or book a 30 minute technical consultation.
ECAD Download Options
Download 3D CAD product models directly from Harwin – STP and IGES.Download
No login is required.
