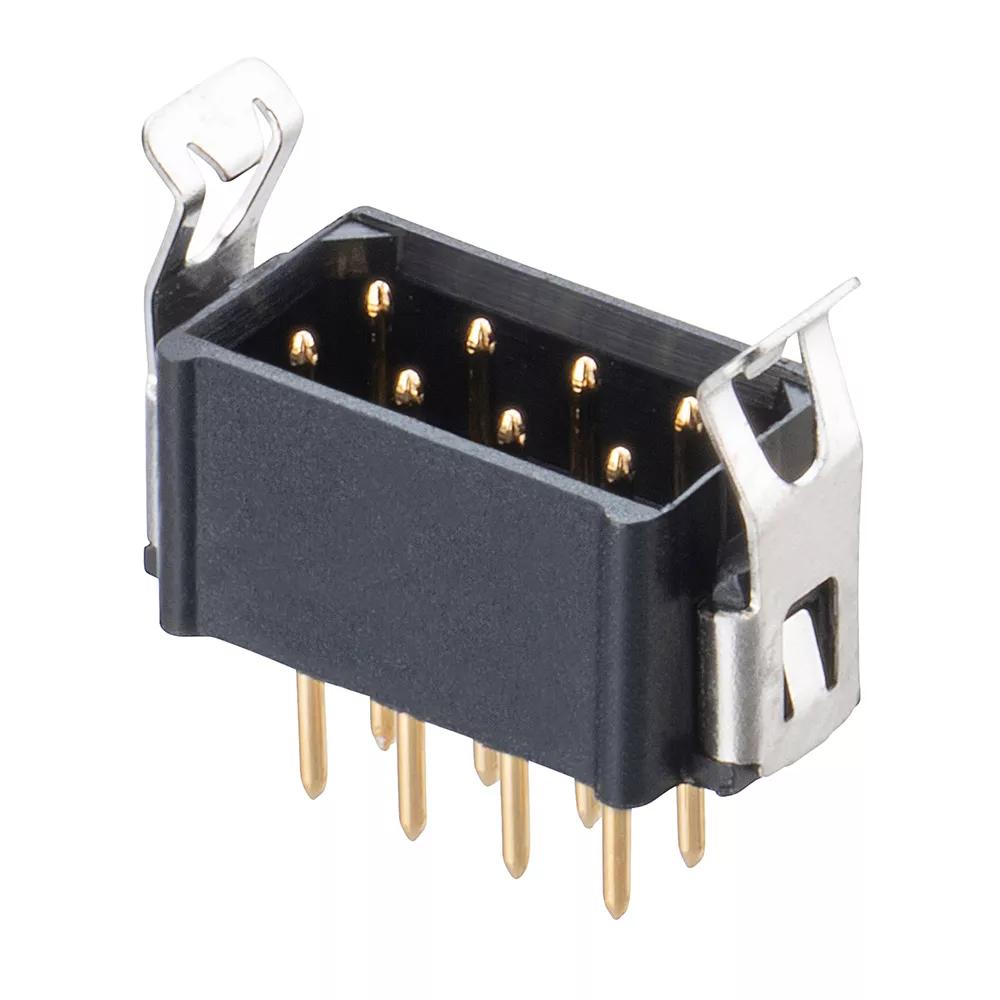

M80-8530845

4+4 Pos. Male DIL Vertical Throughboard Conn. Latches

2.00mm Pitch High-Reliability Connector - Datamate L-Tek

  • Double Row, 8 (4+4) x 3mm PC Tail contacts - Gold finish on contact area and termination.
  • Locking latches - tooling required to separate mated connectors.

Active

Limited availability or made-to-order (check alternatives for popular products)

RoHS Compliant - 2011/65/EU

(Does not require exemption)

Product Information

Specification

+
Product Type: 2.00mm Pitch High-Reliability Connector - Datamate L-Tek
Contact Pitch: 2.00mm (0.079")
Contact Gender: Male/Plug
Connector Orientation: Vertical
Connection Type: PC Tail / Throughboard
Mating Pin Size: Ø0.5mm
Current Rating: 3A
Operating Temperature: -55°C to +125°C
Style of Latches: Locking Latch
Maximum Soldering Temperature: 260°C for 10 seconds

Materials

+
Finish/Plating on Termination: Gold
Finish/Plating on Contact Surface: Gold
Base Material of Contact: Phosphor Bronze
Housing Material: Polyamide (Nylon) 46
Housing Color: Black
Housing Material UL Rating: UL94V-0
Individual Part Weight: 0.489g
Packaging Style: Tube

Dimensions

+
Number of Rows: 2
Total Number of Contacts: 8
Body Length: 12.1mm
Height of Connector above PCB: 5.4mm (8.35mm at latch)
End Stackable: No
Side Stackable: No
Polarising Features: Yes
Can be cut to another size: No
Length of PC Tail: 3mm
Mating Profiles/Heights

Related Products

+
Other products to be used with this item: M80-003
Separator Tool (to assist un-mating): Z80-299
Product Family: M80-853
