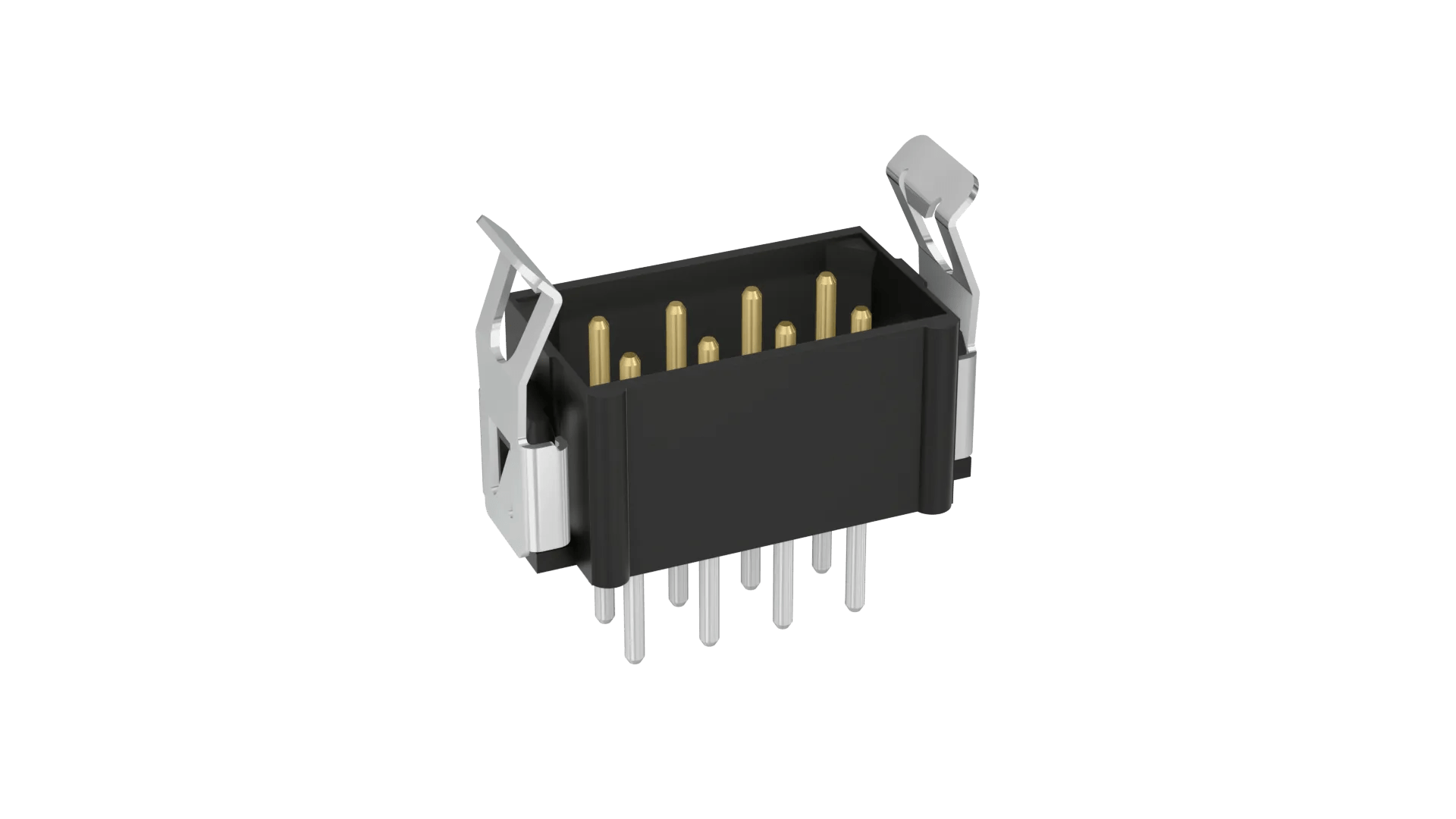

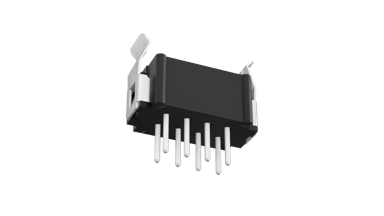

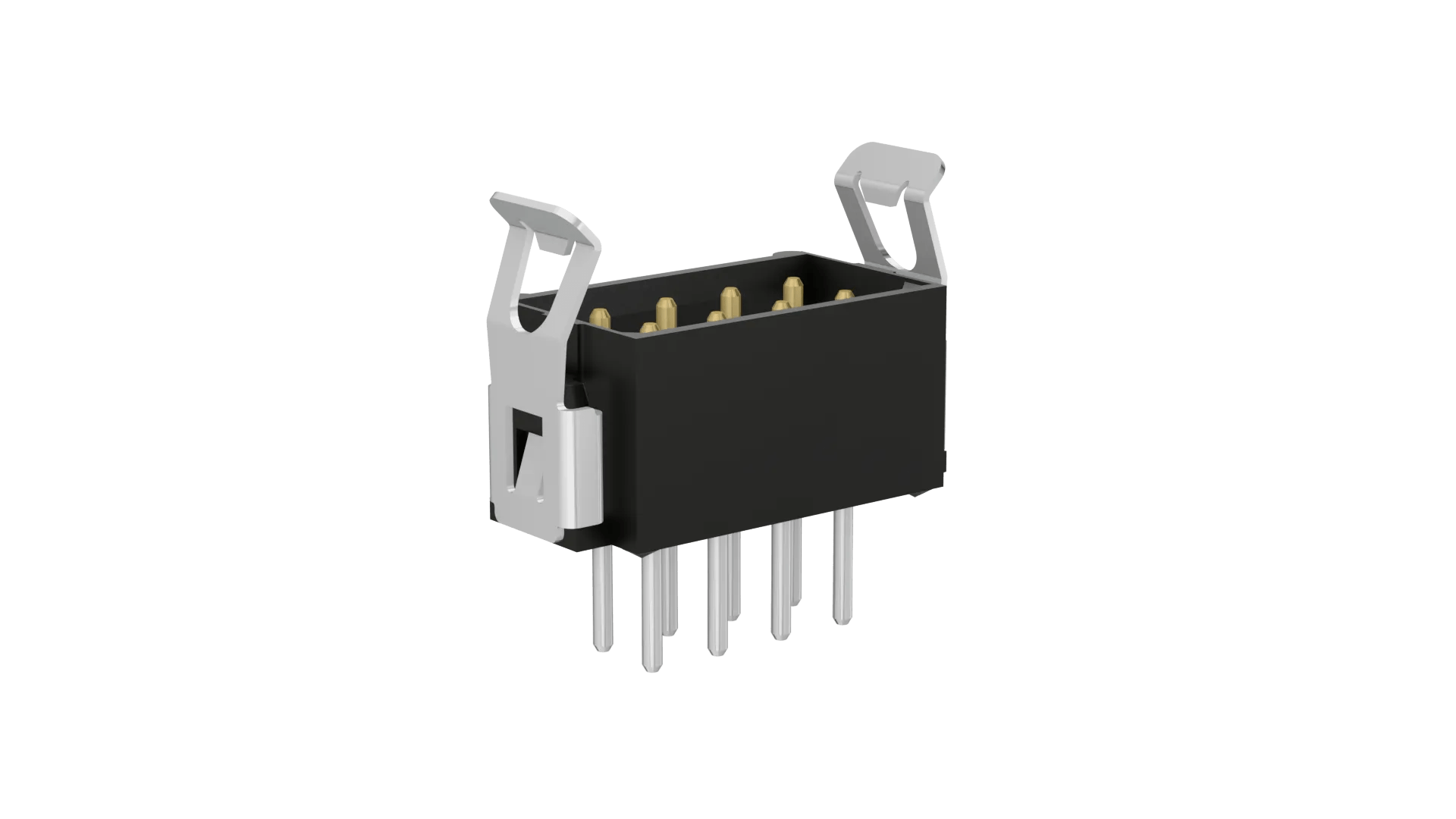

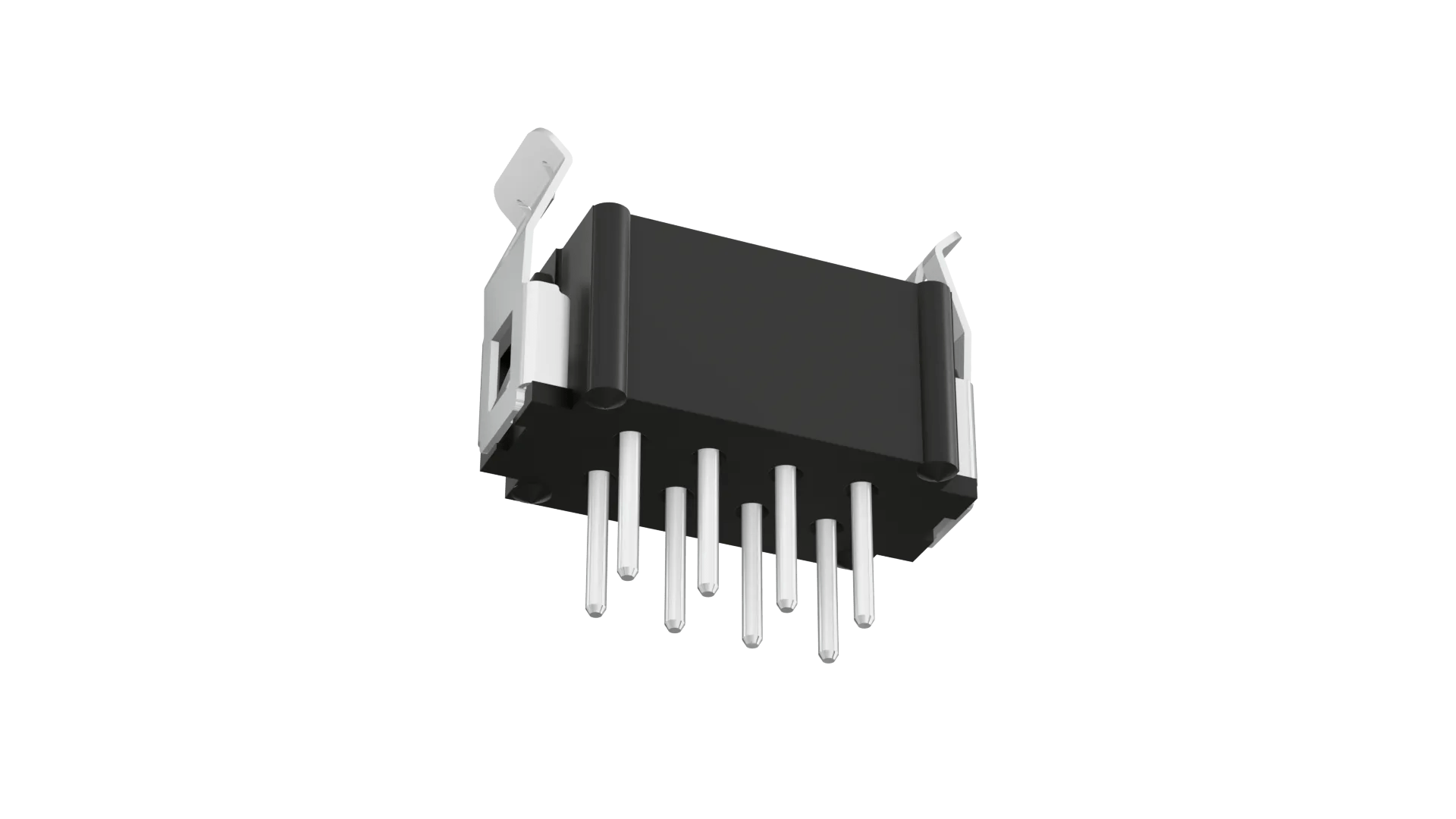

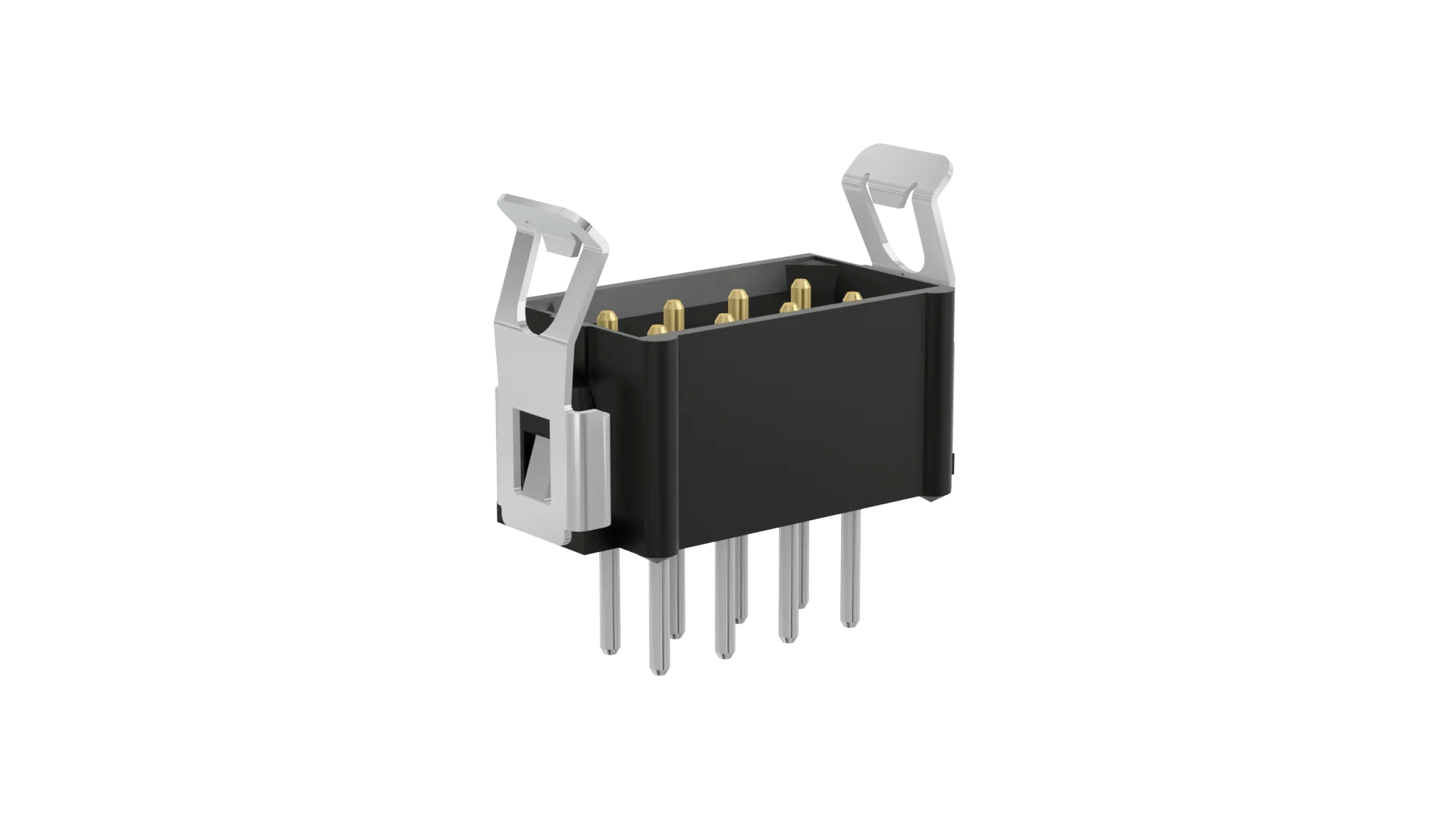

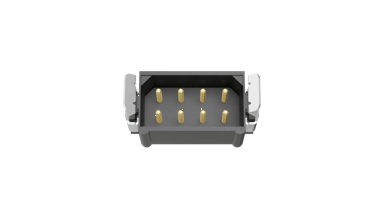

Datamate L-Tek Male DIL Vertical PCB Connector - M80-8530842

2.00mm Pitch Datamate L-Tek

  • Double Row, 8 (4+4) x 3mm PC Tail contacts - Gold finish on contact area, Tin finish on termination.
  • Locking latches - tooling required to separate mated connectors.
  • 2.00mm Pitch High-Reliability Datamate connector system.

Active

Popular product: currently in stock in network

RoHS Compliant - 2011/65/EU

(Does not require exemption)

Product Stock

Distributor Name Location of Stock Qty
Anglia Europe 1722
Avnet Abacus Europe 201 Buy Now
Digi-Key Global 992 Buy Now
Farnell Europe 408 Buy Now
Mouser Electronics Inc Global 776 Buy Now
RS Components Europe 362 Buy Now
Harwin Inc USA 84

Stock available: contact distributor to purchase

  • Specification

  • Related products

  • Materials

  • Dimensions

Product Type: 2.00mm Pitch Datamate L-Tek
Contact Pitch: 2.00mm (0.079")
Contact Gender: Male/Plug
Connector Orientation: Vertical
Connection Type: PC Tail / Throughboard
Mating Pin Size: Ø0.5mm
Current Rating: 3A
Operating Temperature: -55°C to +125°C
Style of Latches: Locking Latch
Maximum Soldering Temperature: 260°C for 10 seconds
Other products to be used with this item: M80-003
Separator Tool (to assist un-mating): Z80-299 T5746
Product Family: M80-853
Finish/Plating on Termination: 100% Tin over Nickel
Finish/Plating on Contact Surface: Gold
Base Material of Contact: Phosphor Bronze
Housing Material: Polyamide (Nylon) 46
Housing Color: Black
Housing Material UL Rating: UL94V-0
Individual Part Weight: 0.489g
Packaging Style: Tube
Number of Rows: 2
Total Number of Contacts: 8
Body Length: 12.1mm
Height of Connector above PCB: 5.4mm (8.35mm at latch)
End Stackable: No
Side Stackable: No
Polarising Features: Yes
Can be cut to another size: No
Length of PC Tail: 3mm
Mating Profiles/Heights
