Home > M80-8530442
Active Product

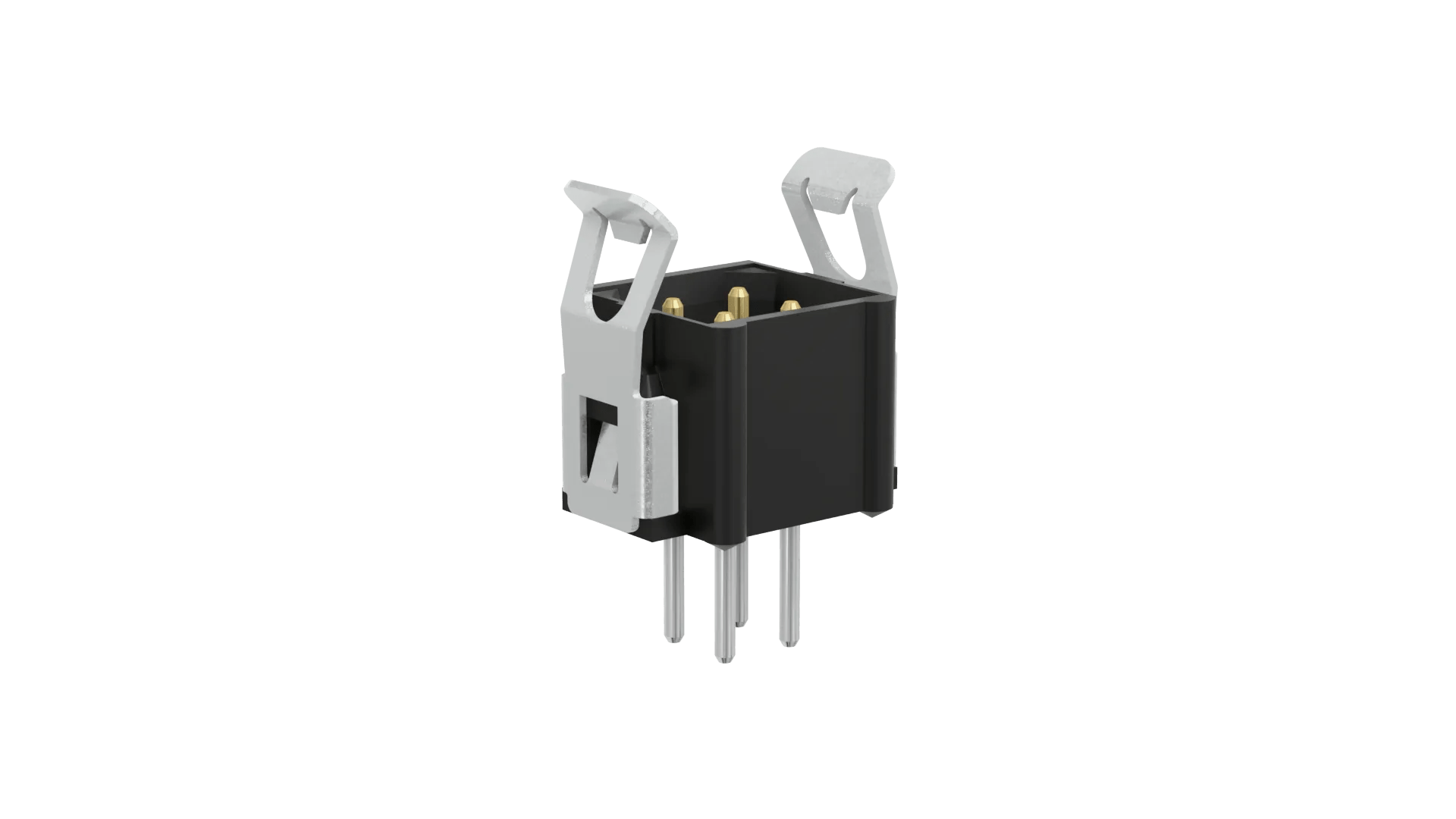

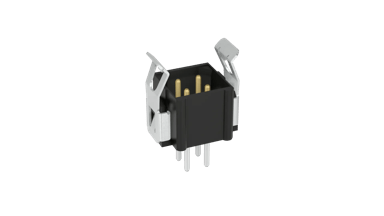

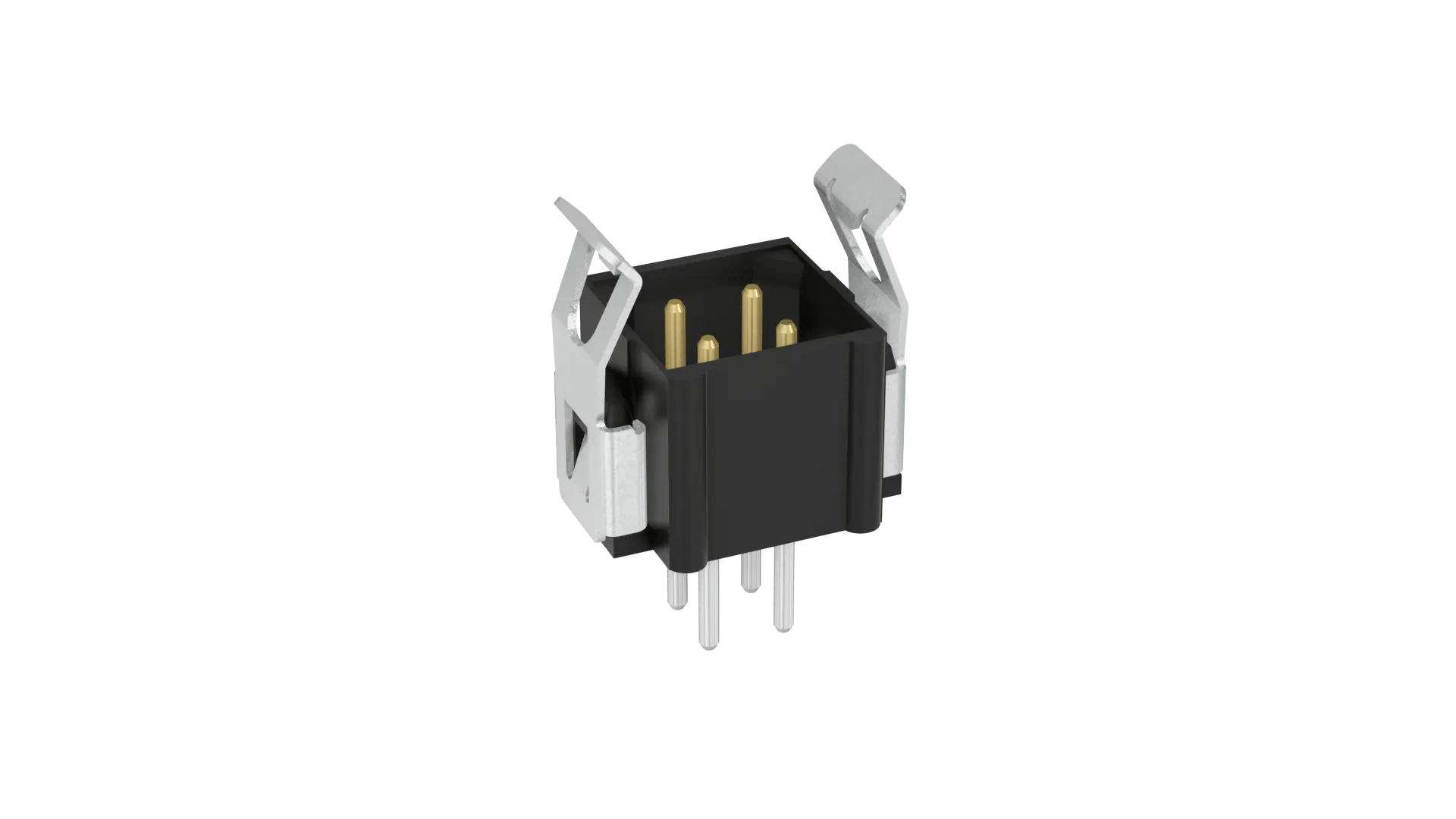

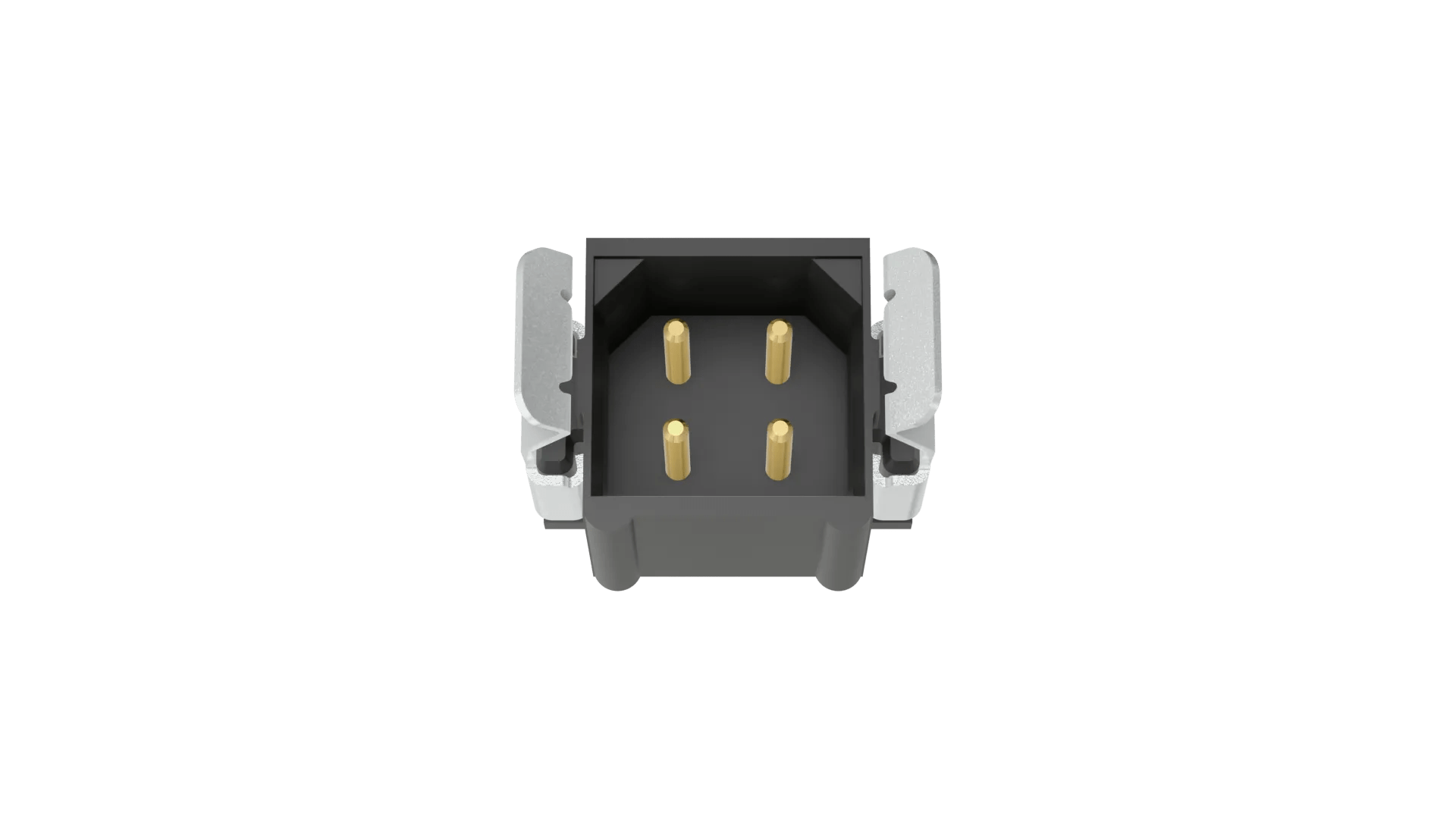

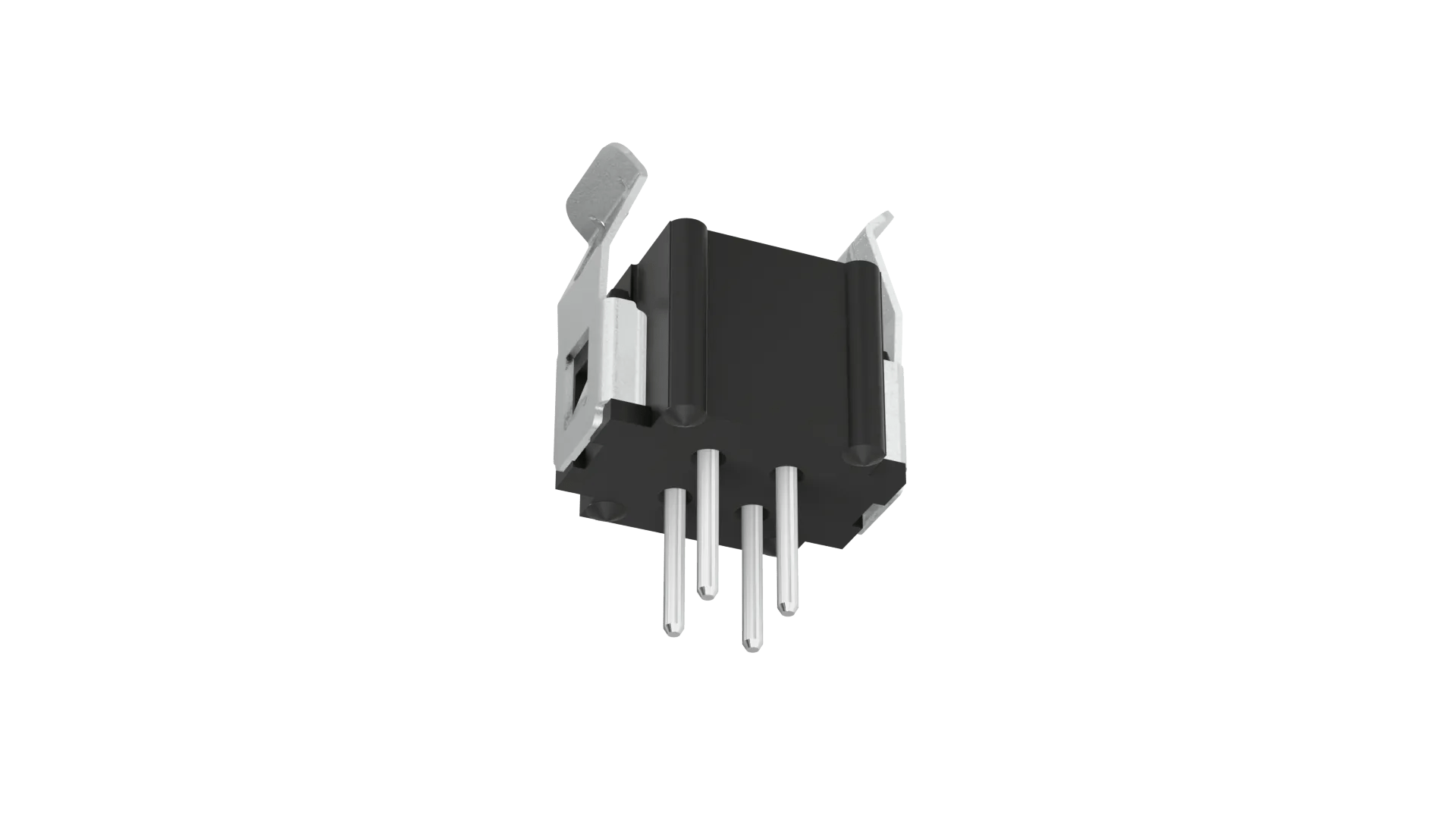

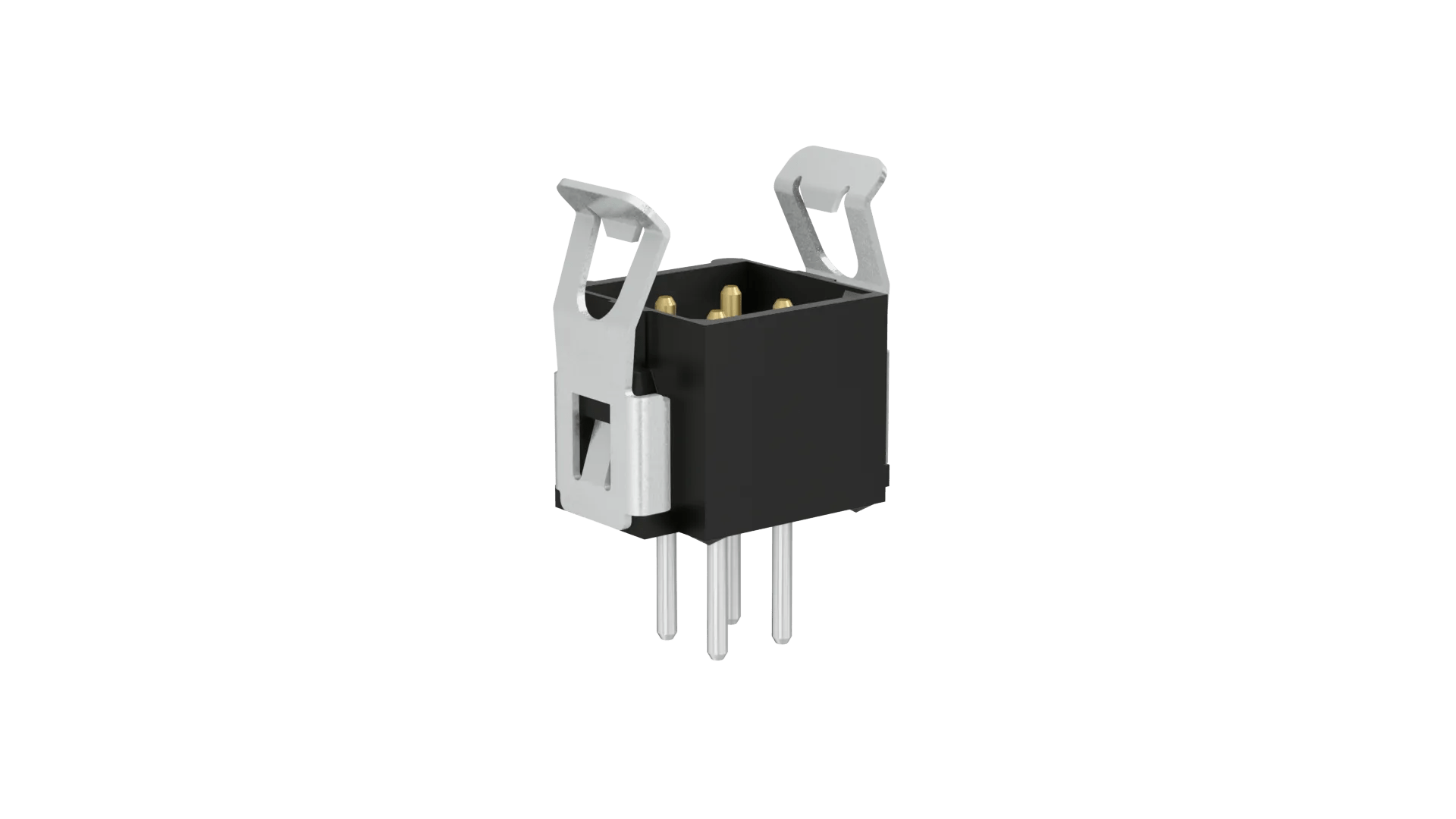

M80-8530442

2+2 Pos. Male DIL Vertical Throughboard Conn. Latches

2.00mm Pitch High-Reliability Connector - Datamate L-Tek

Add to Favorites

15,749 in stock   Check availability

8 similiar products View products

Samacsys account required

Download

No login is required

Product Description

  • Double Row, 4 (2+2) x 3mm PC Tail contacts – Gold finish on contact area, Tin finish on termination.
  • Locking latches – tooling required to separate mated connectors.
  • For complete pin numbering or pin out information, see Component Specification C005XX.

Technical Details

Specification

Contact Pitch:

2.00mm (0.079")

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

Ø0.5mm

Current Rating:

3.3A max individual contact, 3A max simultaneous (25°C)

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Style of Latches:

Locking Latch

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

4

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

PPS

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Dimensions

Individual Part Weight:

0.338g

Overall Dimensions (L x W x D) in mm:

8.10 x 5.85 x 11.35

Height of Connector above PCB:

8.35mm

Length of Throughboard Tail:

3.00mm

Frequently Asked Questions Ask a Question

Do you have a tool to help separate this connector when it is latched to the mating half?

The tool you need is the Z80-299. This is a kit of a handle, cross-bars and two latch separators, and has instructions to help you assemble the tool to the right size for your connector.
