Active

M80-8520442

4 Pos. Male SIL Vertical Throughboard Conn. No Latches

2.00mm Pitch High-Reliability Connector - Datamate L-Tek

Single Row, 4 x 3mm PC Tail contacts – Gold finish on contact area, Tin finish on termination.
Unlatched (latches not fitted).
For complete pin numbering or pin out information, see Component Specification C005XX.

Add to Basket

Availability

M80-8520442 - 4 Pos. Male SIL Vertical Throughboard Conn. No Latches

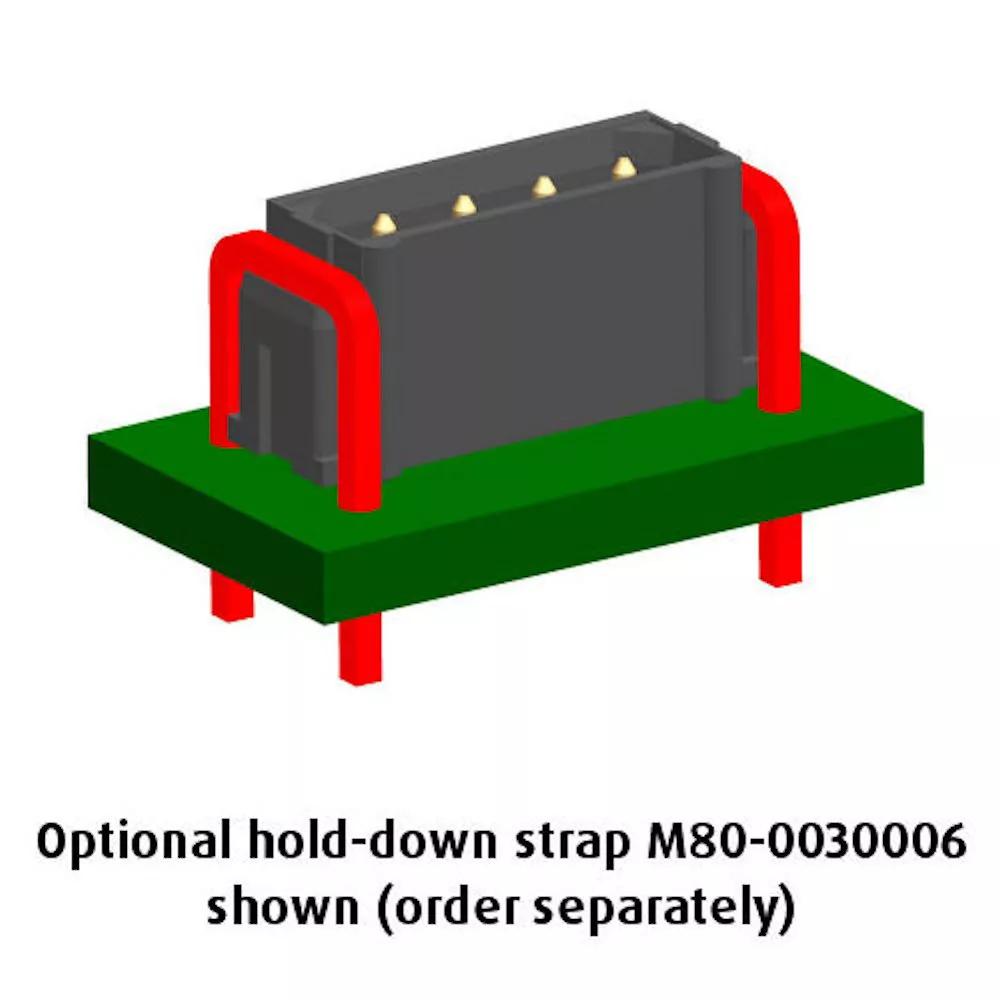

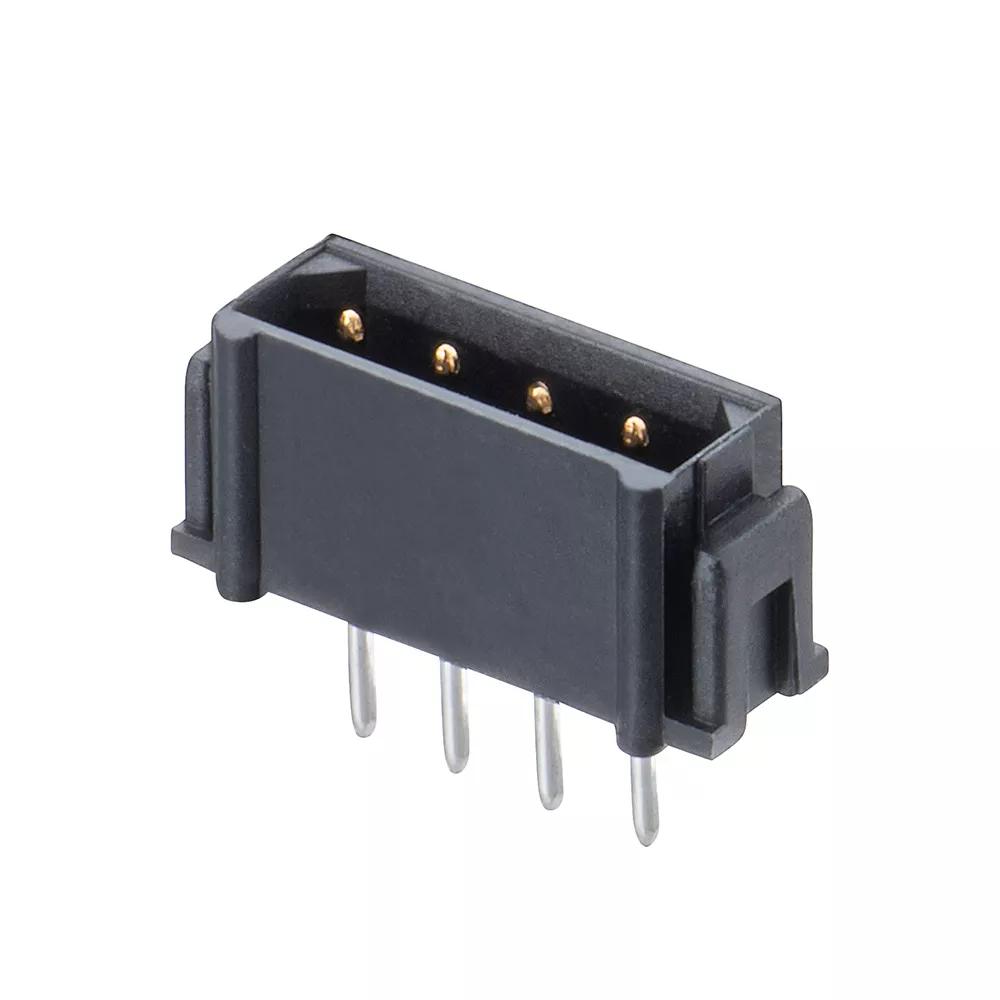

Representative image of product family

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with no Exemption required

Contact Pitch:

2.00mm (0.079")

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

Ø0.5mm

Current Rating:

3.3A max individual contact, 3A max simultaneous (25°C)

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Style of Latches:

None

Polarising Features:

Yes

End Stackable:

Side Stackable:

Can be cut to another size:

Number of Rows:

Number of Signal Contacts:

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

PPS

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Individual Part Weight:

0.265g

Overall Dimensions (L x W x D) in mm:

11.60 x 3.85 x 8.40

Height of Connector above PCB:

5.40mm

Length of Throughboard Tail:

3.00mm

Mating Profiles:

Catalog page - Datamate L-Tek Mating Profiles

Availability

1,106 in stock

Questions & Answers Ask a Question

What is the part number for a M80-8520442 connector with latches fitted?

The part number with latches is M80-8820442. You can see this listed in Related Products, under Alternatives.
