Home > M80-8501442
Active

M80-8501442

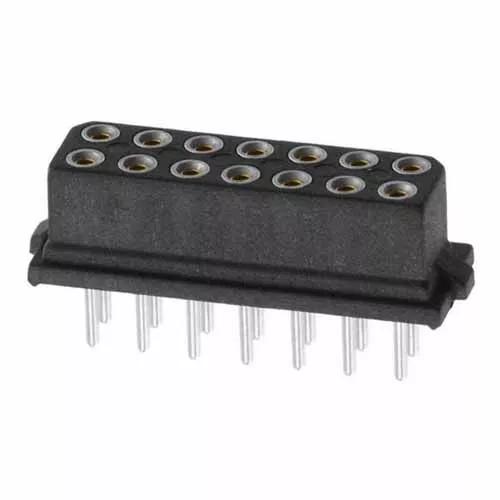

7+7 Pos. Female DIL Vertical Throughboard Conn. for Latches

2.00mm Pitch High-Reliability Connector - Datamate L-Tek

  • Double Row female connector, 14 (7+7) x 3mm PC Tail contacts – Gold finish on contact area, Tin finish on termination.
  • If mating to a latched male connector, additional clearance holes in PCB are required.
  • For complete pin numbering or pin out information, see Component Specification C005XX.
Add to Favorites

Technical Details

Specification

Contact Pitch:

2.00mm (0.079")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

Ø0.5mm

Current Rating:

3.3A max individual contact, 3A max simultaneous (25°C)

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Style of Latches:

Compatible with latches

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

14

Entry Style:

Top Entry

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper contact clip, Brass shell

Housing Material:

Polyamide (Nylon) 46

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Dimensions

Individual Part Weight:

0.957g

Overall Dimensions (L x W x D) in mm:

17.15 max x 3.40 x 8.10

Height of Connector above PCB:

5.10mm

Length of Throughboard Tail:

3.00mm

Availability

120 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 55
Distributor Anglia
Location Europe
Quantity (Updated Daily) 53
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 12

Questions & Answers Ask a Question

Do you have a tool to help separate this connector when it is latched to the mating half?

The tool you need is the Z80-299. This is a kit of a handle, cross-bars and two latch separators, and has instructions to help you assemble the tool to the right size for your connector.
