M80-8420242

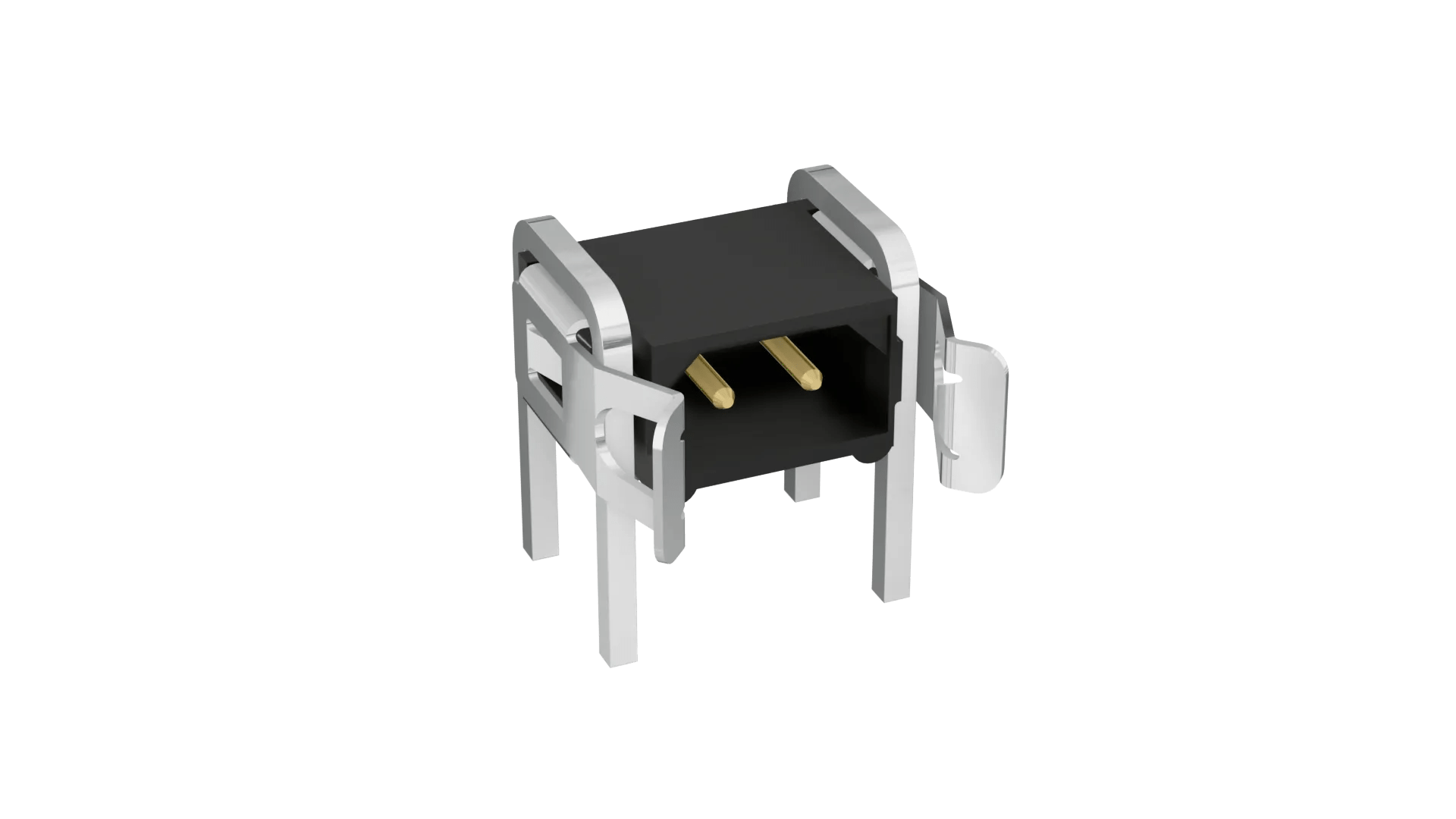

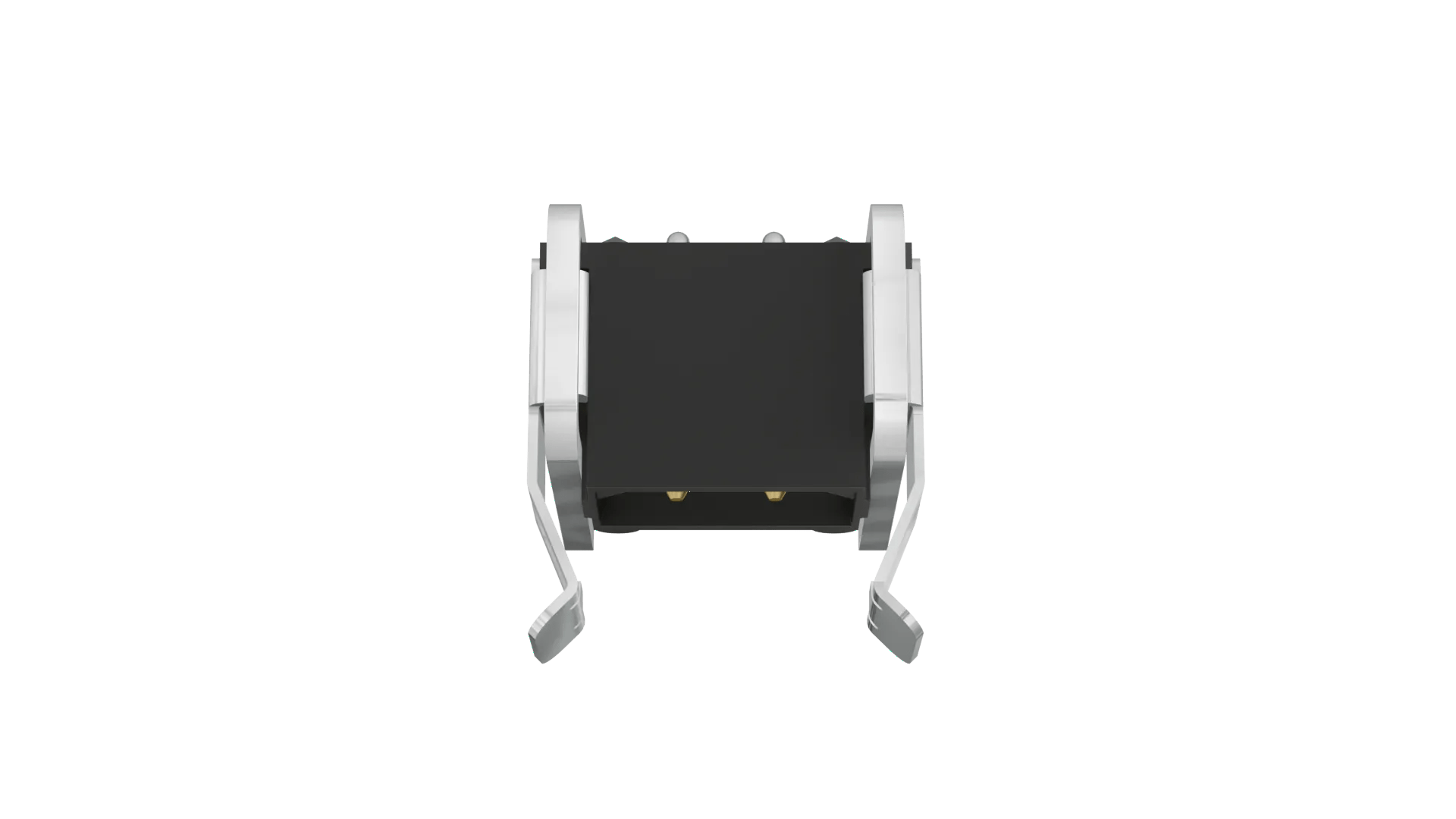

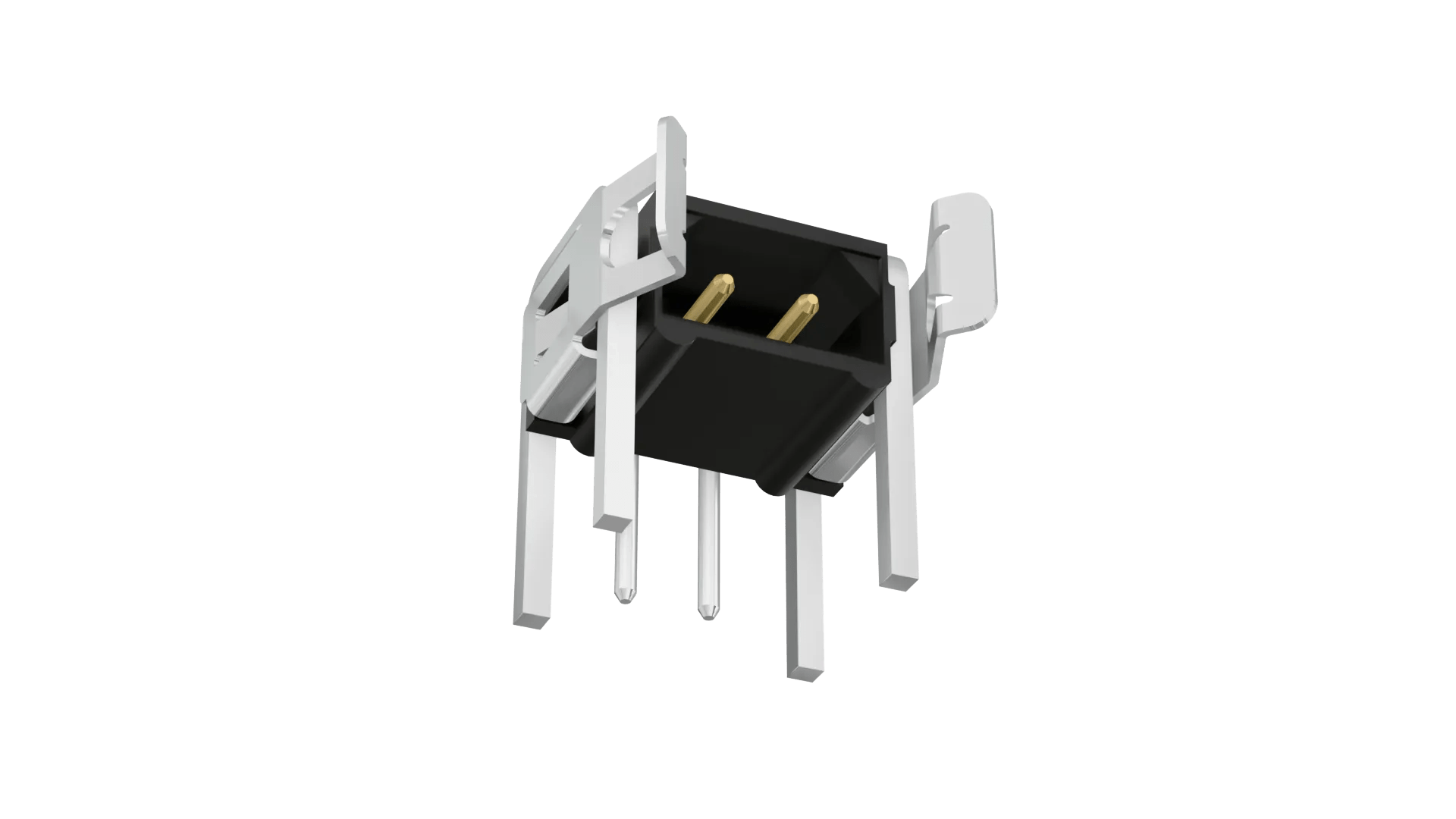

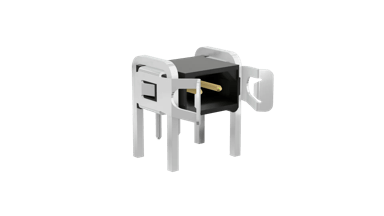

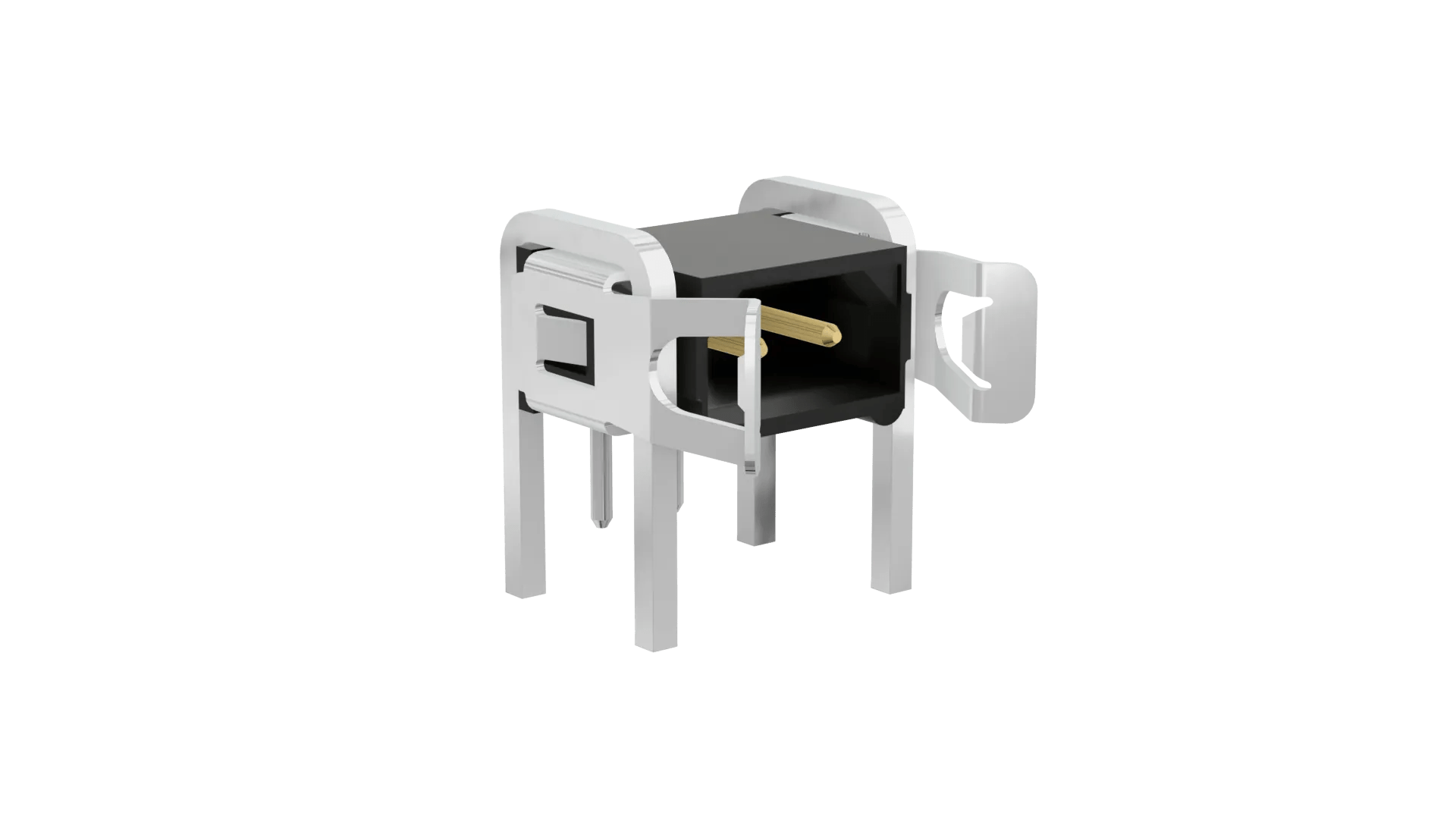

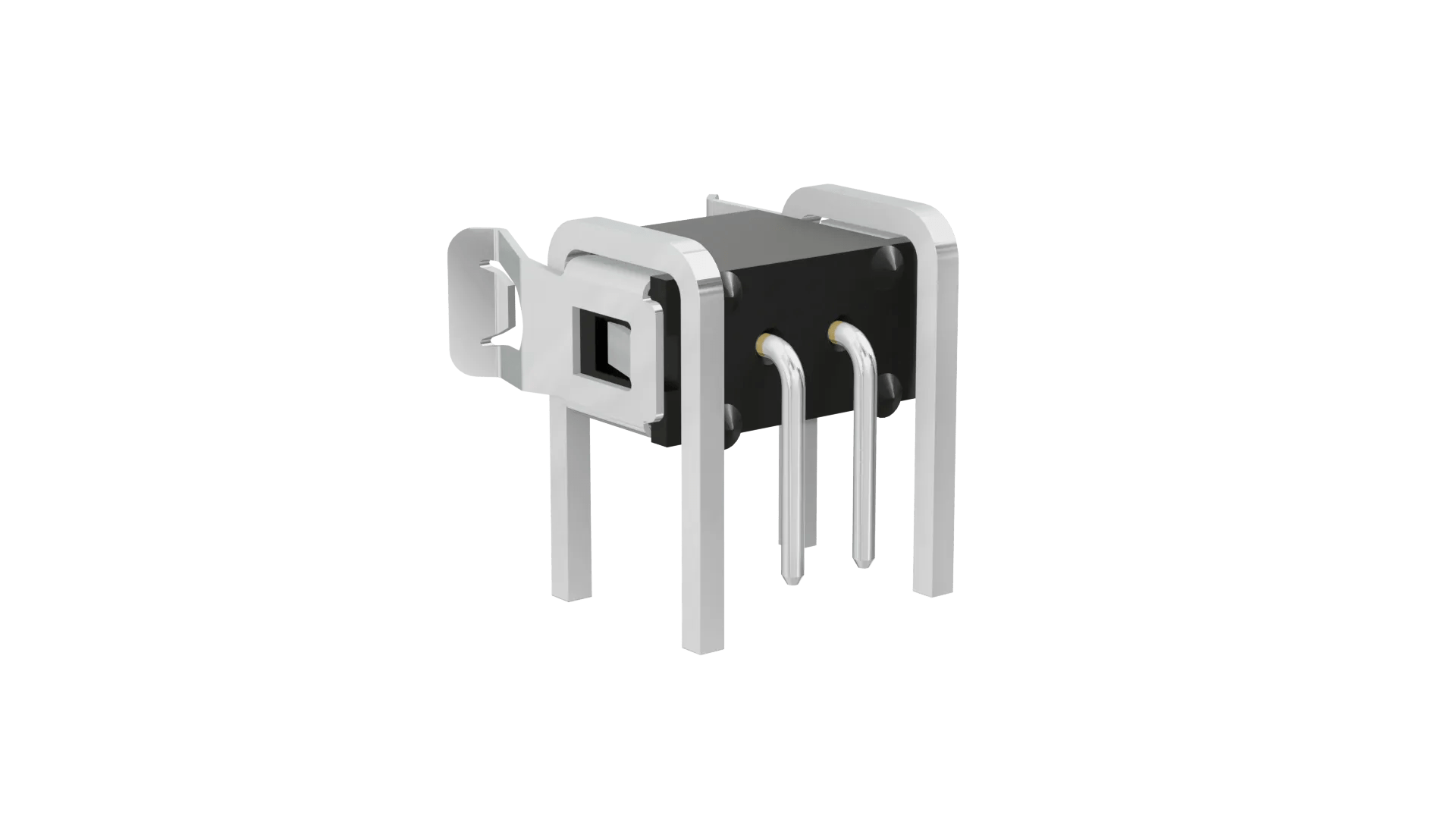

2 Pos. Male SIL Horizontal Throughboard Conn. Latches

2.00mm Pitch High-Reliability Connector - Datamate L-Tek

  • Single Row, 2 x 3mm PC Tail contacts – Gold finish on contact area, Tin finish on termination.
  • Locking latches – tooling required to separate mated connectors. Supplied with strain relief straps (M80-0030006).
  • For complete pin numbering or pin out information, see Component Specification C005XX.
Add to Favorites

Technical Details

Specification

Contact Pitch:

2.00mm (0.079")

Contact Gender:

Male/Plug

Connector Orientation:

Horizontal

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

Ø0.5mm

Current Rating:

3.3A max individual contact, 3A max simultaneous (25°C)

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Style of Latches:

Locking Latch

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

1

Number of Signal Contacts:

2

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

PPS

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Dimensions

Individual Part Weight:

0.429g

Overall Dimensions (L x W x D) in mm:

8.10 x 6.85 x 9.10

Height of Connector above PCB:

3.85mm

Length of Throughboard Tail:

3.00mm

Availability

6,290 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor TTI Inc
Location USA
Quantity (Updated Daily) 3552
Distributor TTI Europe
Location Europe
Quantity (Updated Daily) 928
Distributor Avnet Abacus
Location Europe
Quantity (Updated Daily) 896
Distributor Anglia
Location Europe
Quantity (Updated Daily) 456
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 208
Distributor Powell Electronics
Location Global
Quantity (Updated Daily) 160
Distributor Farnell
Location Europe
Quantity (Updated Daily) 70
Distributor Genalog
Location Europe
Quantity (Updated Daily) 18
Distributor Newark
Location USA
Quantity (Updated Daily) 2

Questions & Answers Ask a Question

What are the U-shaped plugs/staples supplied with this connector?

These U-shaped plugs (that look like staples) are throughboard hold-down straps, supplied with all horizontal male Datamate L-Tek. You can see them shown red in the inset pictures on the relevant Datamate L-Tek catalog pages, and we have a Product Training Module on their use. It can also be used with vertical male L-Tek, purchased separately under part number M80-0030006.

The Technical Drawing will show the 4 holes required for using these straps in your assembly, and they can be either soldered to the PCB on the underside, or with pin-in-paste soldering.

Do you have a tool to help separate this connector when it is latched to the mating half?

The tool you need is the Z80-299. This is a kit of a handle, cross-bars and two latch separators, and has instructions to help you assemble the tool to the right size for your connector.
