4+4 Pos. Male DIL Horizontal Throughboard Conn. No Latches
2.00mm Pitch High-Reliability Connector - Datamate L-Tek
EU RoHS Status:
PC Tail / Throughboard
Mating Pin Size:
Dependent on mating connector
-55°C to +125°C
Max Solder Temperature: 260°C for 10 seconds
Style of Latches:
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Termination:
100% Tin over Nickel
Finish / Plating on Contact Surface:
Base Material of Contact:
Polyamide (Nylon) 46
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
11.60 x 8.85 x 8.15
Height of Connector above PCB:
Length of Throughboard Tail:
Questions & Answers Ask a Question
What are the U-shaped plugs/staples supplied with this connector?

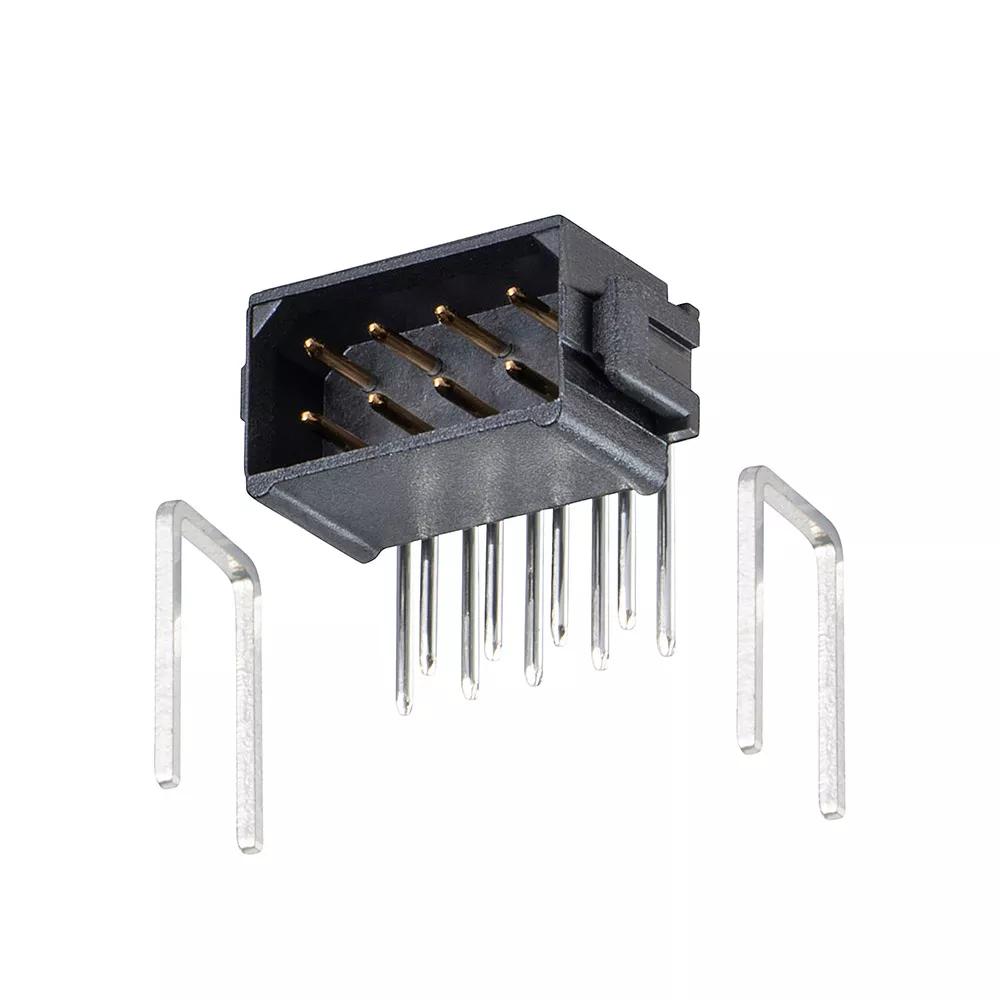

These U-shaped plugs (that look like staples) are throughboard hold-down straps, supplied with all horizontal male Datamate L-Tek. You can see them shown red in the inset pictures on the relevant Datamate L-Tek catalog pages, and we have a Product Training Module on their use. It can also be used with vertical male L-Tek, purchased separately under part number M80-0030006.
The Technical Drawing will show the 4 holes required for using these straps in your assembly, and they can be either soldered to the PCB on the underside, or with pin-in-paste soldering.
M80-8410842 CAD Model (ZIP file containing STP and IGES)Download
