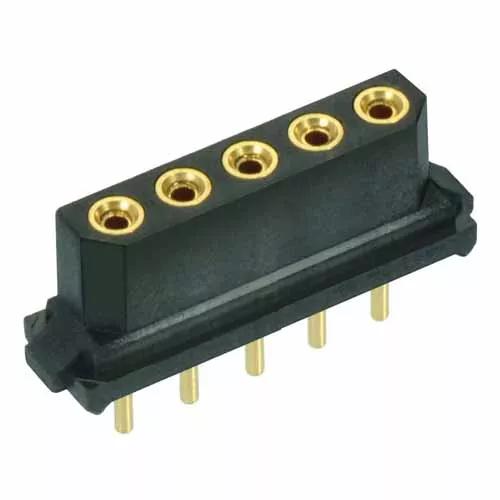

5 Pos. Female SIL Vertical Throughboard Conn. for Latches

HRi

Image may be representative. Refer to the product title for more information.

M80-8400545

5 Pos. Female SIL Vertical Throughboard Conn. for Latches

2.00mm Pitch High-Reliability Connector - Datamate L-Tek

  • Single Row female connector, 5 x 3mm PC Tail contacts - Gold finish on contact area and termination.

  • If mating to a latched male connector, additional clearance holes in PCB are required.

  • For complete pin numbering or pin out information, see the Component Specification C005XX.
