M80-8281242

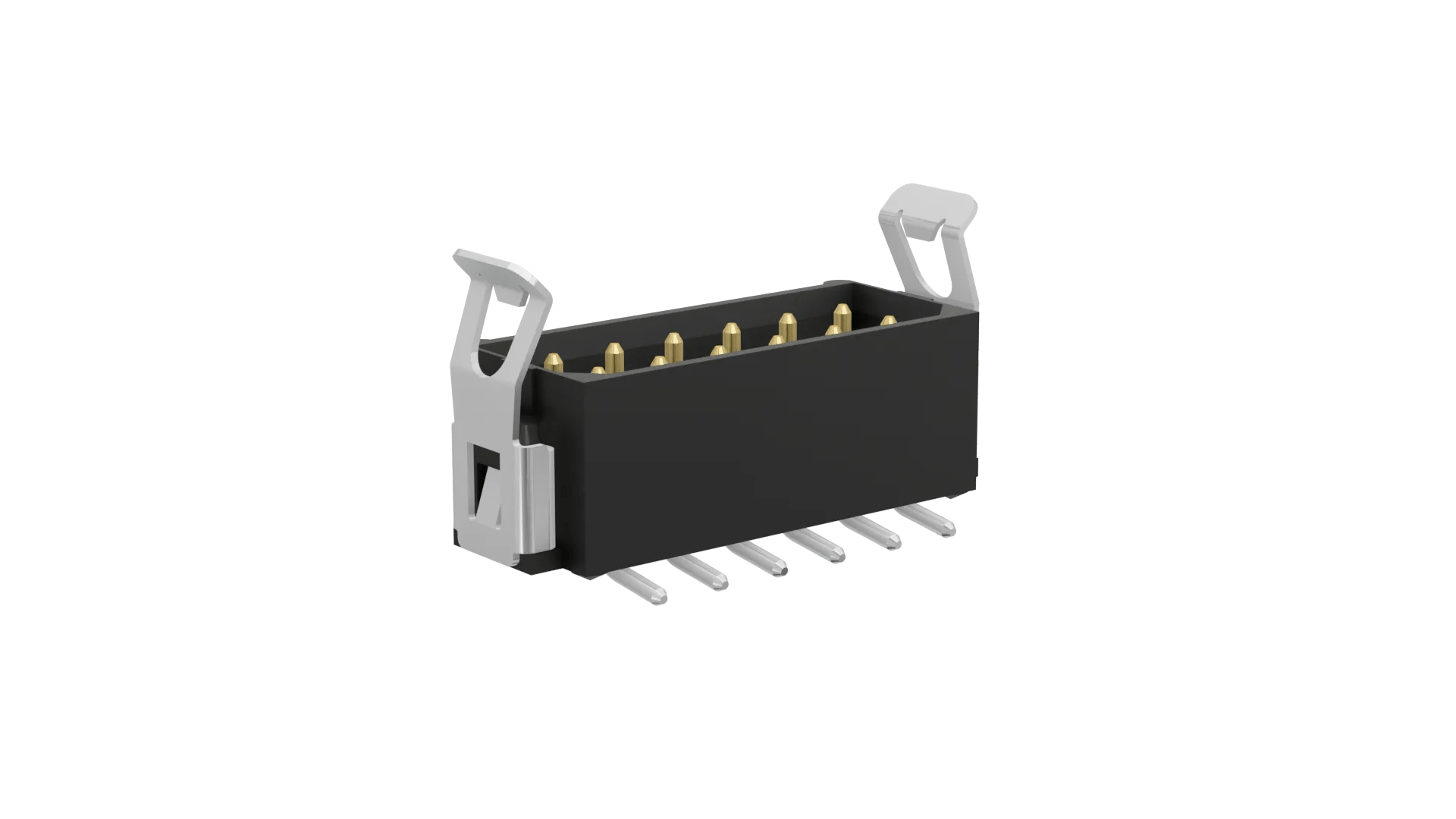

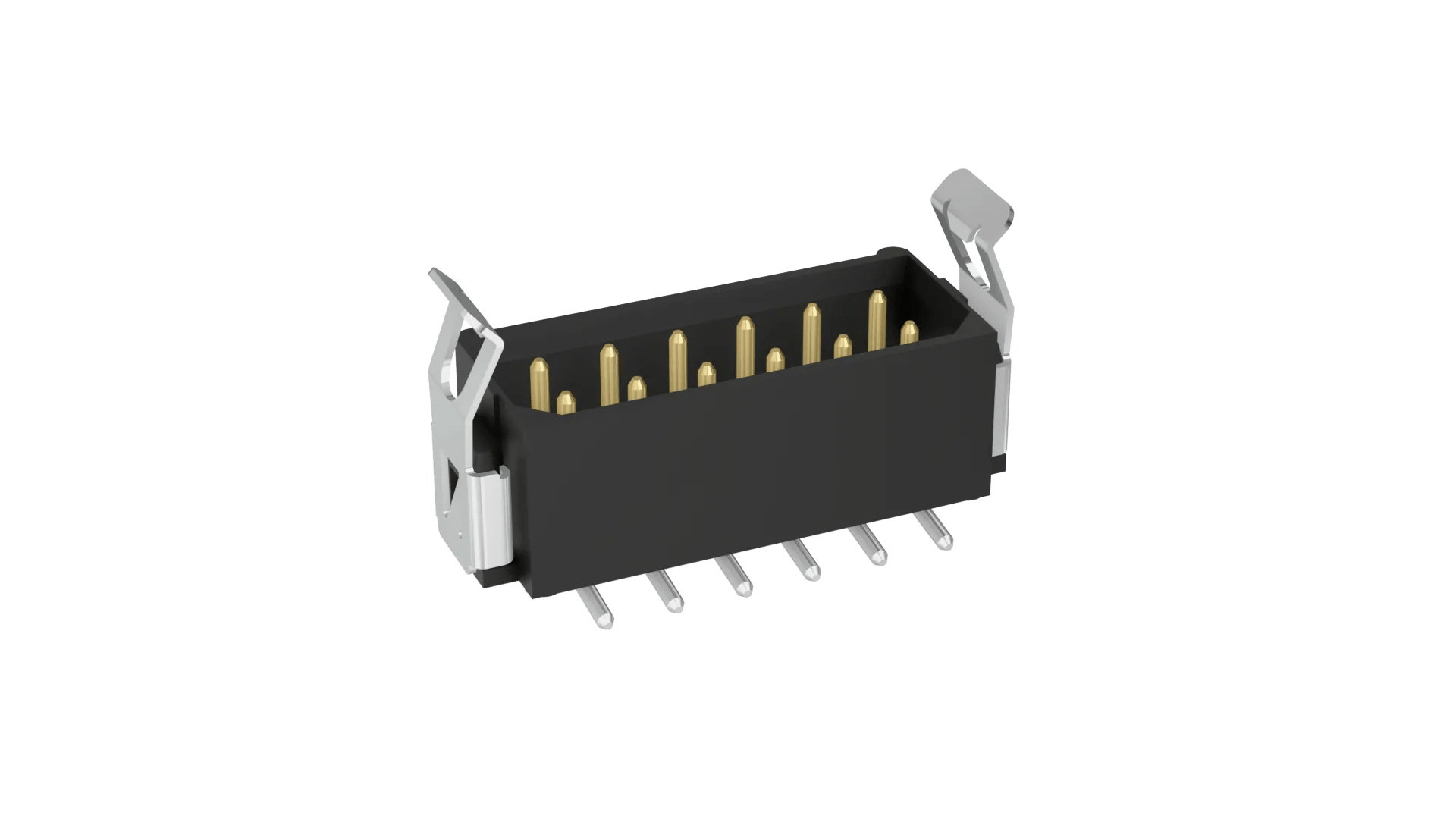

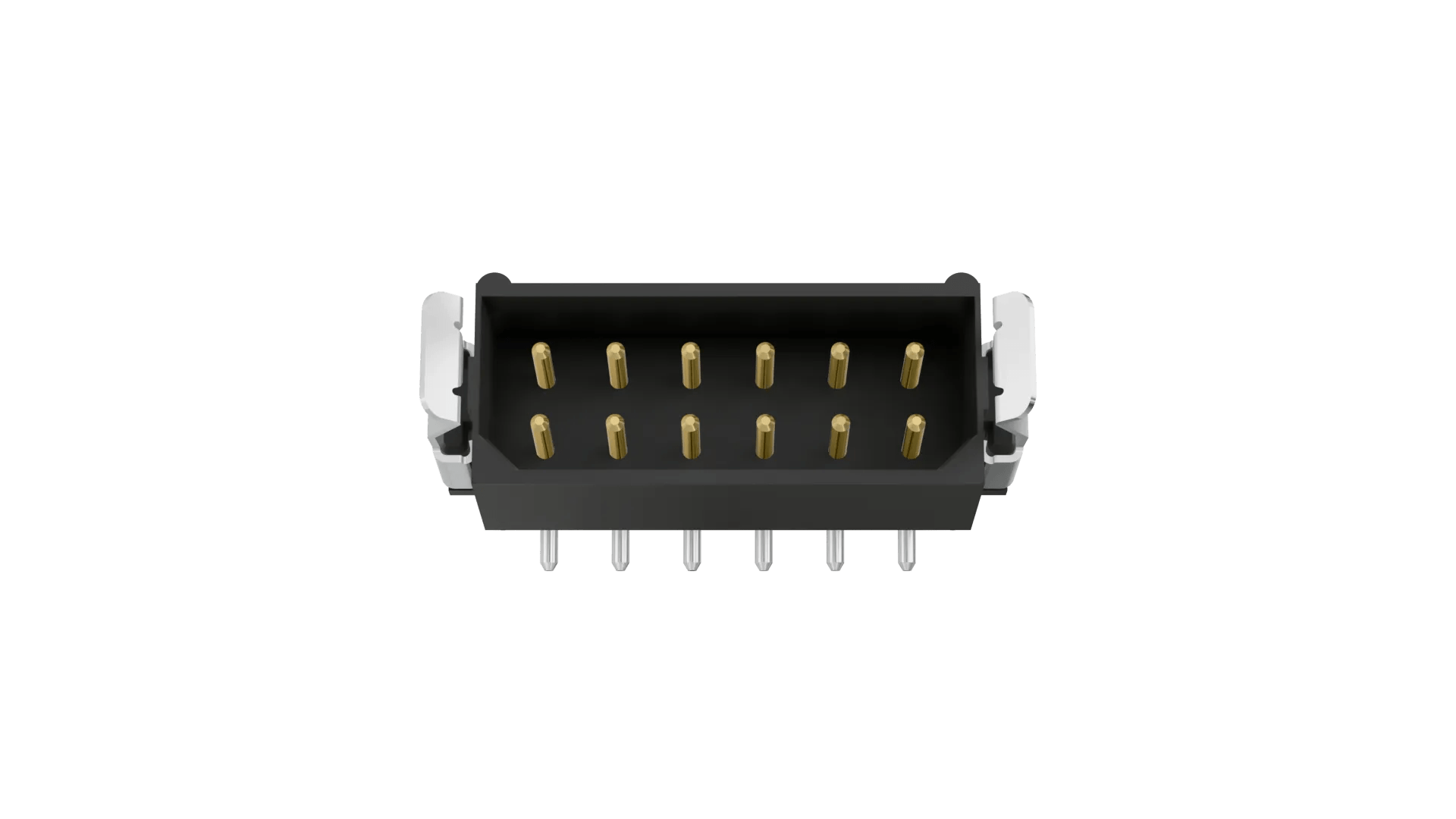

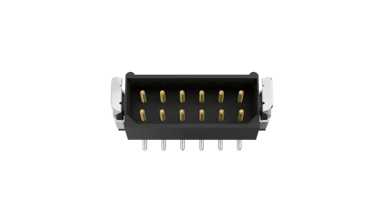

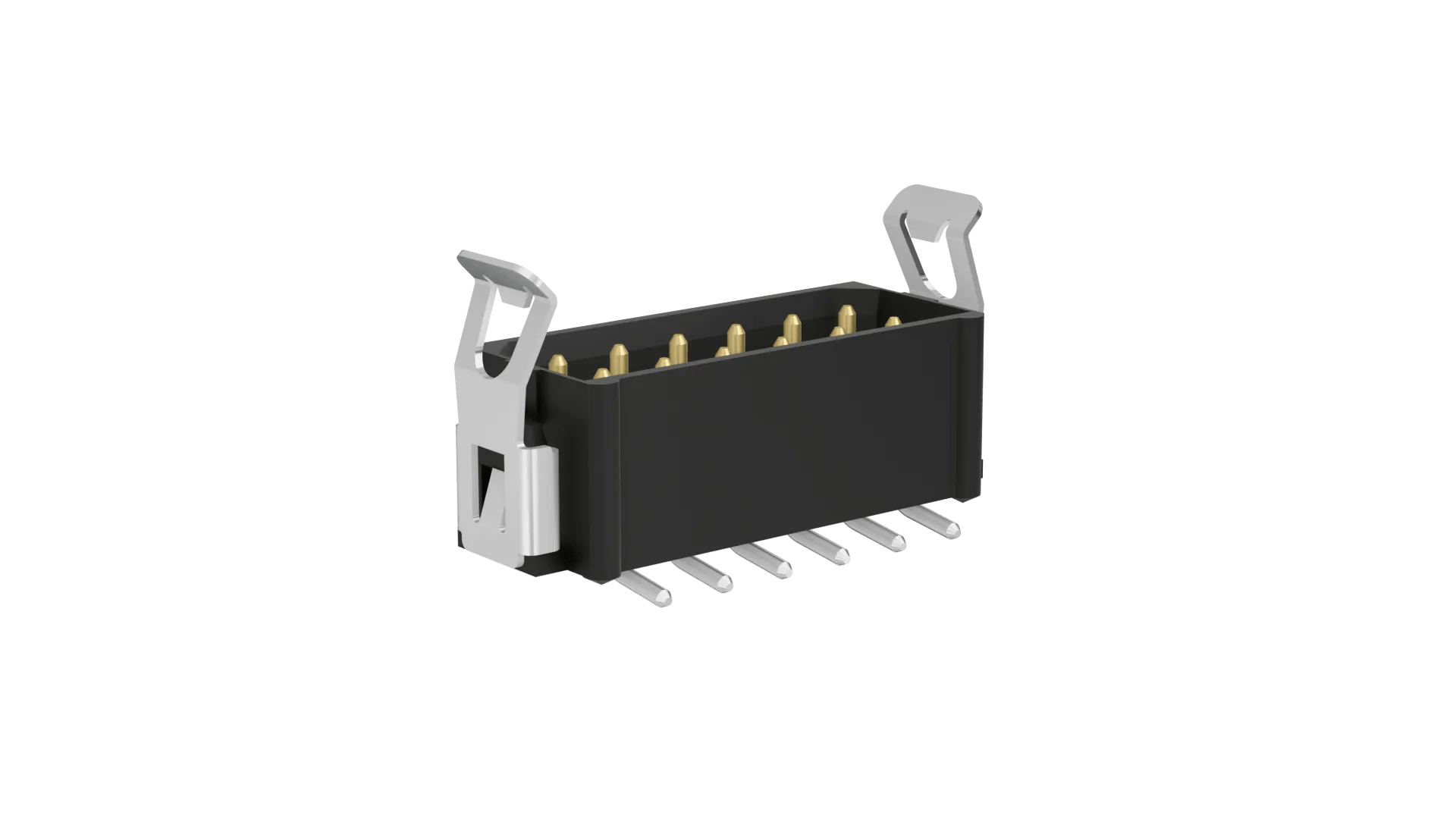

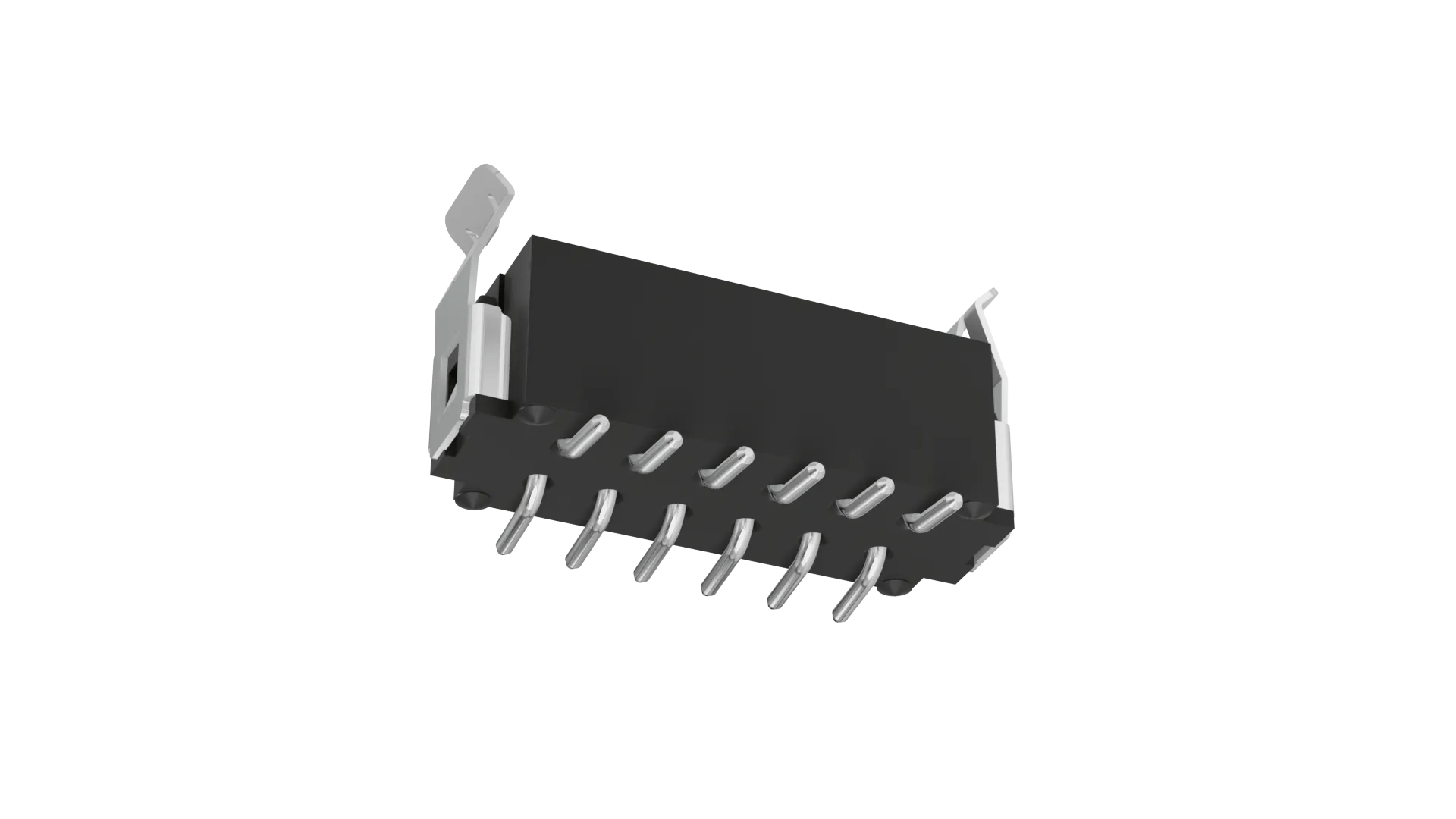

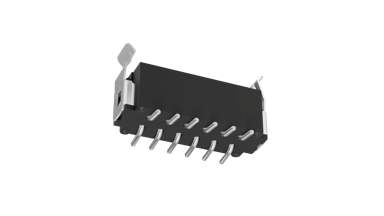

6+6 Pos. Male DIL Vertical SMT Conn. Latches
2.00mm Pitch High-Reliability Connector - Datamate L-Tek
Loading… Check availability
5 similar products View products
Traceparts account required
Product Description
- Double Row, 12 (6+6) x Surface Mount contacts – Gold finish on contact area, Tin finish on termination.
- Locking latches – tooling required to separate mated connectors. Packaged in tubes.
- For complete pin numbering or pin out information, see Component Specification C005XX.
Traceparts account required
Technical Details
Specification
EU RoHS Status:
Contact Pitch:
2.00mm (0.079")
Contact Gender:
Male/Plug
Connector Orientation:
Vertical
Connection Type:
Surface Mount (SMT)
Mating Pin Size:
Ø0.5mm
Current Rating:
3.3A max individual contact, 3A max simultaneous (25°C)
Operating Temperature:
-55°C to +125°C
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Style of Latches:
Locking Latch
Polarising Features:
Yes
End Stackable:
No
Side Stackable:
No
Can be cut to another size:
No
Number of Rows:
2
Number of Signal Contacts:
12
Materials
Finish / Plating on Termination:
100% Tin over Nickel
Finish / Plating on Contact Surface:
Gold
Base Material of Contact:
Phosphor Bronze
Housing Material:
PPS
Housing Colour:
Black
Housing Material UL Rating:
UL94V-0
Packaging Style:
Tube
Dimensions
Individual Part Weight:
0.629g
Overall Dimensions (L x W x D) in mm:
16.10 x 7.50 x 9.05
Height of Connector above PCB:
9.05mm
Mating Profiles:
Frequently Asked Questions Ask a Question
Do you have a tool to help separate this connector when it is latched to the mating half?
The tool you need is the Z80-299. This is a kit of a handle, cross-bars and two latch separators, and has instructions to help you assemble the tool to the right size for your connector.
