Active Product

M80-8280842

4+4 Pos. Male DIL Vertical SMT Conn. Latches

2.00mm Pitch High-Reliability Connector - Datamate L-Tek

Order Sample

Add to Favorites

Loading… Check availability

5 similar products View products

Traceparts account required

Product Description

Double Row, 8 (4+4) x Surface Mount contacts – Gold finish on contact area, Tin finish on termination.
Locking latches – tooling required to separate mated connectors. Packaged in tubes.
For complete pin numbering or pin out information, see Component Specification C005XX.

M80-8280842 - 4+4 Pos. Male DIL Vertical SMT Conn. Latches

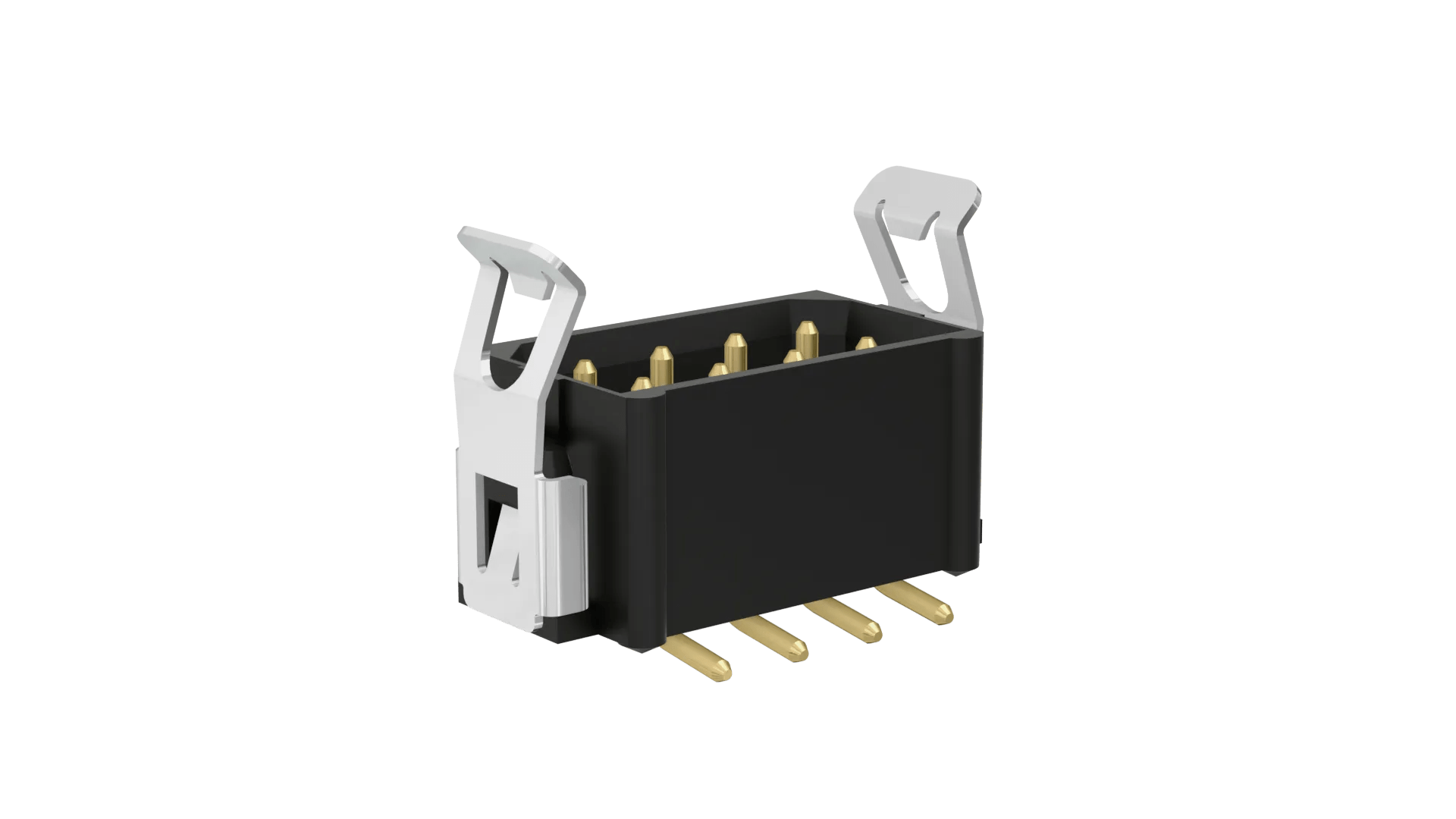

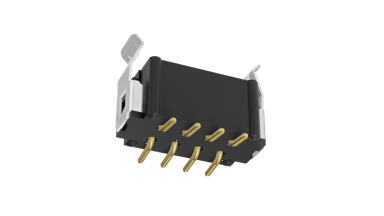

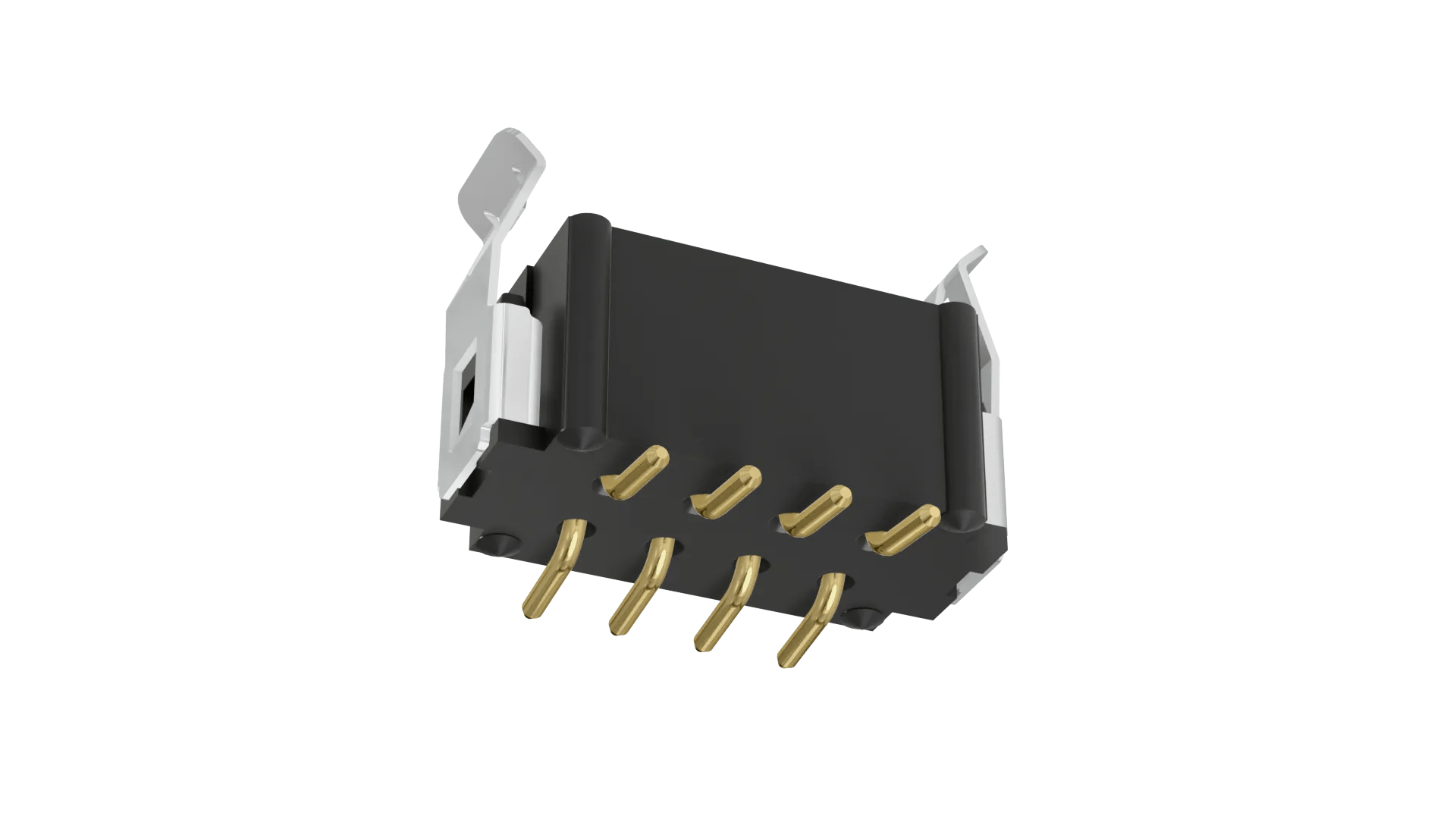

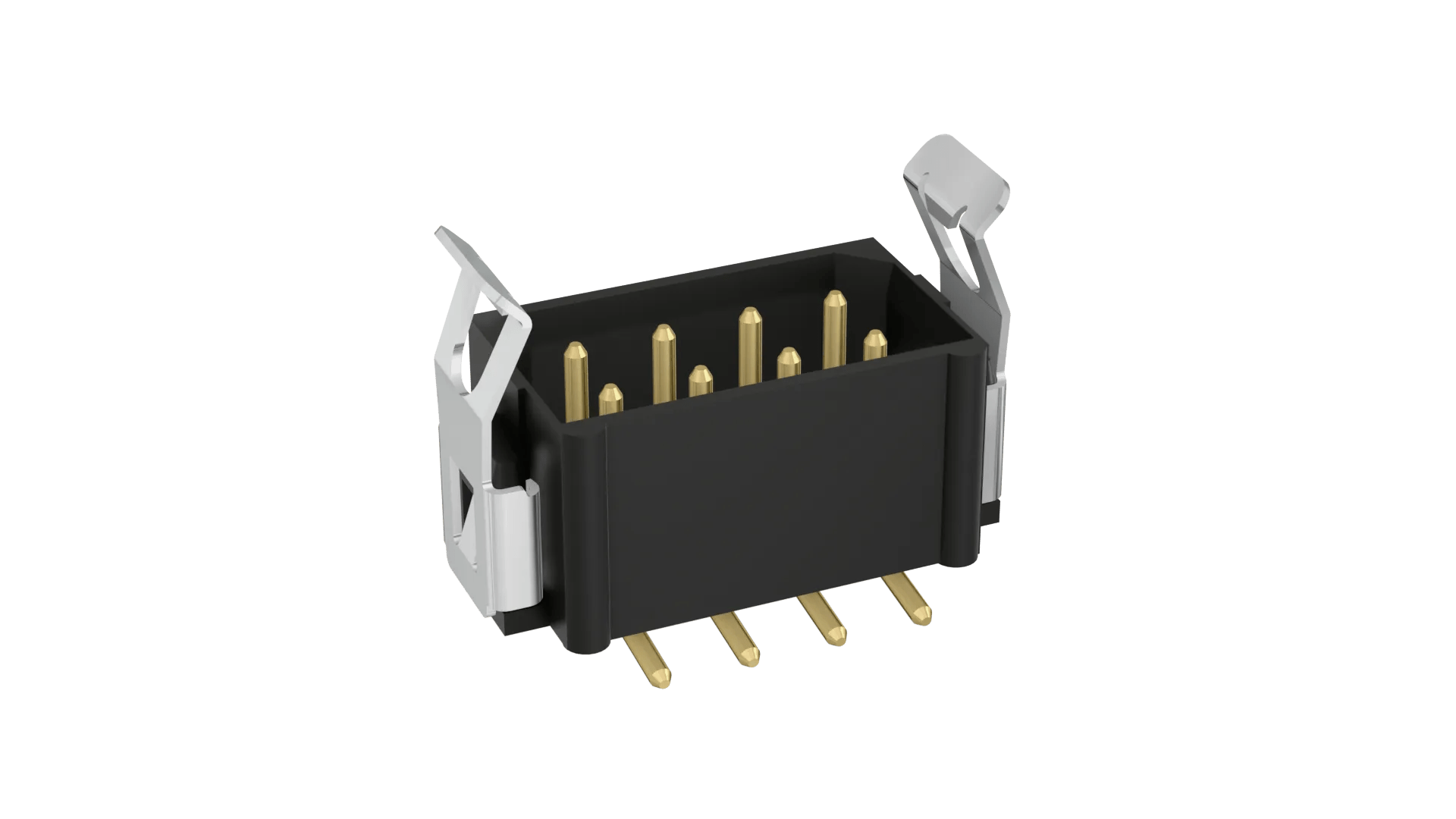

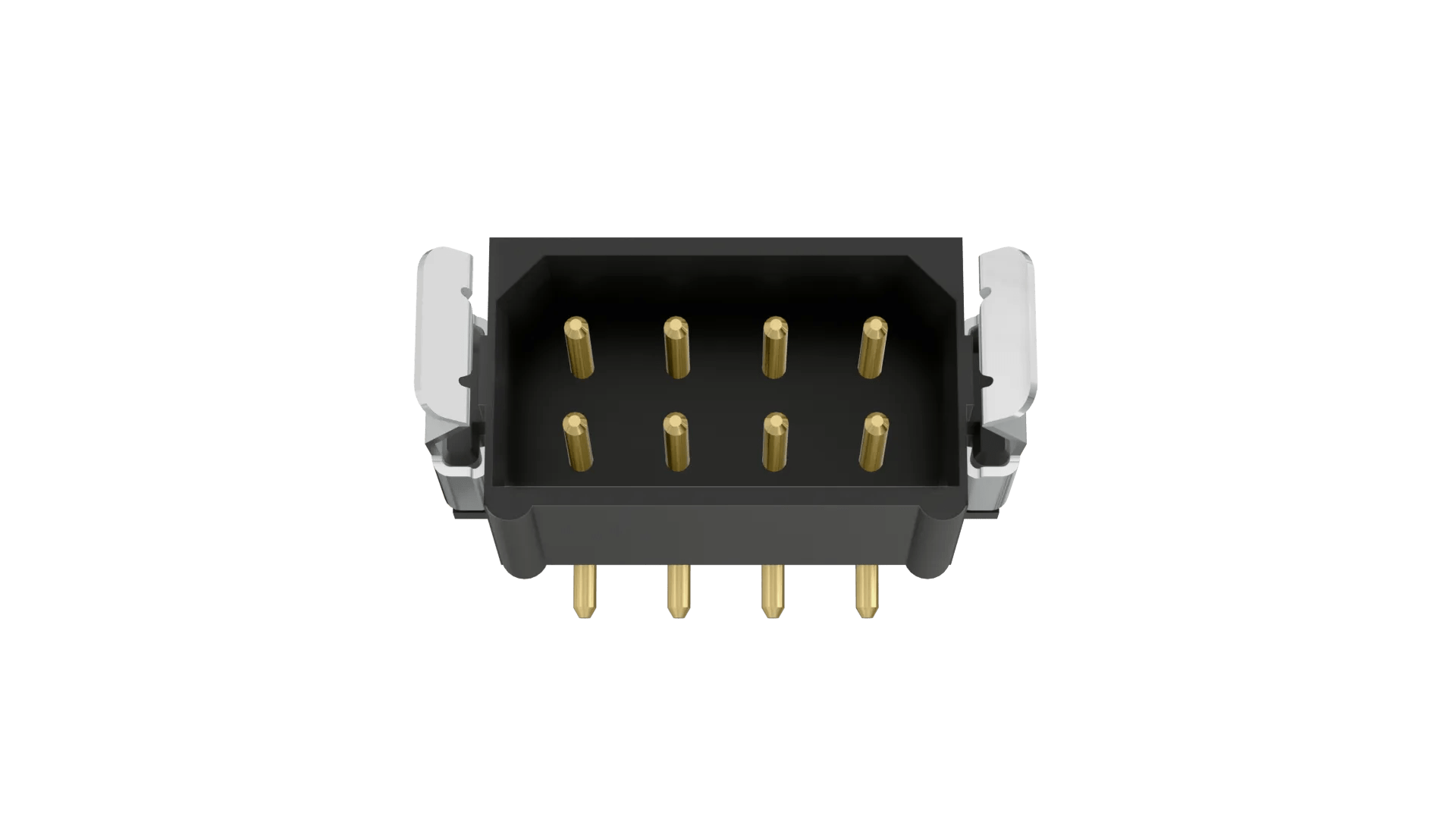

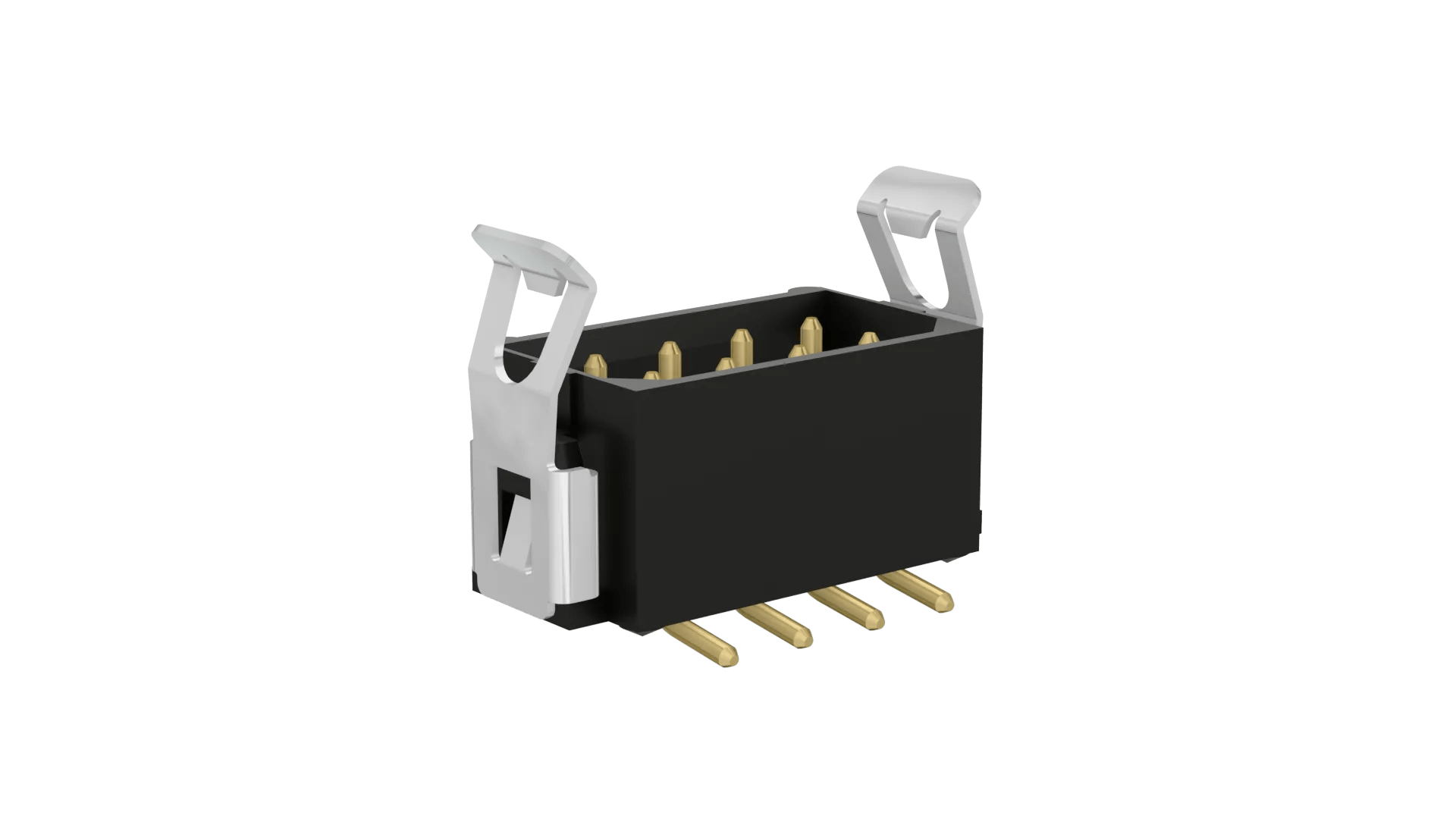

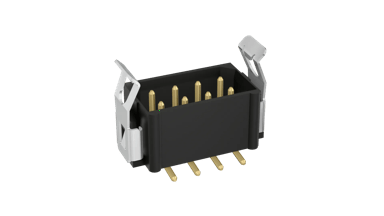

Representative image of product family

Traceparts account required

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with no Exemption required

Contact Pitch:

2.00mm (0.079")

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

Surface Mount (SMT)

Mating Pin Size:

Ø0.5mm

Current Rating:

3.3A max individual contact, 3A max simultaneous (25°C)

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Style of Latches:

Locking Latch

Polarising Features:

Yes

End Stackable:

Side Stackable:

Can be cut to another size:

Number of Rows:

Number of Signal Contacts:

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

PPS

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Individual Part Weight:

0.482g

Overall Dimensions (L x W x D) in mm:

12.10 x 7.50 x 9.05

Height of Connector above PCB:

9.05mm

Mating Profiles:

Catalog page - Datamate L-Tek Mating Profiles

Frequently Asked Questions Ask a Question

The tool you need is the Z80-299. This is a kit of a handle, cross-bars and two latch separators, and has instructions to help you assemble the tool to the right size for your connector.

Was this answer useful?

Downloads

RoHS Compliant (2015/863/EU) with no Exemption required

PDF Download

How can we help you?

If you would like to talk to someone about Harwin’s product, technical knowledge or documentation, contact one of our Experts for assistance.
