Home > M80-8131205
Active

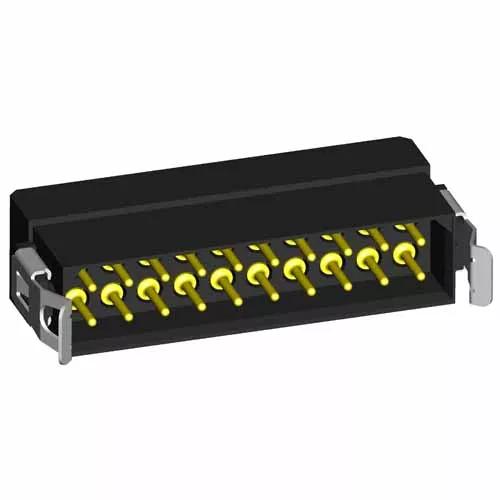

M80-8131205

6+6 Pos. Male DIL 22AWG Cable Conn. Kit, Latches

2.00mm Pitch High-Reliability Connector - Datamate L-Tek

  • Complete kit: Double Row housing (with locking latches fitted), 12 x barrel crimp contacts loose – Gold finish on contact area and crimp area.
  • Large Bore – suitable for 22AWG cable (Ø1.1mm max insulation). Spare contacts = M80-0400005. Locking latches – tooling required to separate mated connectors.
Add to Favorites

Technical Details

Specification

Contact Pitch:

2.00mm (0.079")

Contact Gender:

Male/Plug

Connector Orientation:

Straight

Connection Type:

Cable (Crimp)

Cable Conductor Size:

22AWG

Mating Pin Size:

Ø0.5mm

Current Rating:

Dependent on mating connector

Operating Temperature:

-55°C to +125°C

Style of Latches:

Locking Latch

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

12

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Brass

Housing Material:

Polyamide (Nylon) 46

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

1.397g

Overall Dimensions (L x W x D) in mm:

16.10 x 6.00 x 11.70

Availability

Limited availability or made-to-order
Distributor Location Quantity

*Stock available: contact distributor to purchase

Questions & Answers Ask a Question

Do you have a tool to help separate this connector when it is latched to the mating half?

The tool you need is the Z80-299. This is a kit of a handle, cross-bars and two latch separators, and has instructions to help you assemble the tool to the right size for your connector.

Was this answer helpful?

100% found this helpful

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - M80-813.pdf

ZIP

M80-8131205 CAD Model (ZIP file containing STP and IGES)

Download
PDF

C005XX Component Specification - Datamate M80 and M83 Series (2.00mm, 4.00mm pitch High-Reliability)

TEST REPORTS

PDF

Test Report HT001 - Datamate Mechanical Endurance - number of cycles, up to 10,000

PDF

Test Report HT002 - Datamate Voltage Proof, Voltage Flashover, and Insulation Resistance

PDF

Test Report HT006 - Datamate L-Tek and J-Tek Male Crimp Retention and Integrity (Pull-Off Force)

PDF

Test Report HT011 - Datamate Mechanical - High Temperature Mould material for L-Tek crimp sockets

PDF

Test Report HT016 - Datamate L-Tek Female Crimp detailed Mechanical Forces and Contact Resistance

PDF

Test Report HT017 - Datamate L-Tek Contact Resistance after 3 and 15 years Artificial Aging

PDF

Test Report HT019 - Datamate Frequency Testing to EIA-364-108-2000(2007), USB2.0

PDF

Test Report HT025 - Datamate L-Tek Environmental - Detailed Vibration, Shock and Bump

PDF

Test Report HT044 - Datamate L-Tek Locking Latch number of operations with applicable hand tools

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with Exemption 6c

PDF

REACH Harwin statement (12-Feb-2020) including 205 SVHC (16-Jan-2020), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

PDF

Material composition for M80-813 series

INSTRUCTION SHEETS

PDF

Product Training Module - Overview Guide to the Datamate range, 2 & 4mm pitch High-Reliability

PDF

Product Training Module - Guide to Datamate Latches (L-Tek), Jackscrews (J-Tek) and 101Lok

PDF

Product Training Module - Cable Connectors and Assemblies from Harwin

PDF

IS-01 - M22520/2-01 Hand Crimp Tool Instruction Sheet

PDF

IS-25 - Z80-280 Assembly Tool Instruction Sheet

PDF

IS-30 - Z80-299 Datamate Separator Tool Instruction Sheet

OTHER DOWNLOADS

PDF

3D PDF file - M80-8131205_3D.pdf

PDF

Catalog page - Datamate L-Tek Male Crimp Kit

PDF

Catalog page - Datamate L-Tek Specification, Pin Numbering

PDF

Catalog page - Datamate L-Tek Mating Profiles

PDF

Catalog page - Datamate Introduction

XLSX

Distributor part numbers for suitable cables for Datamate, Gecko, M300
