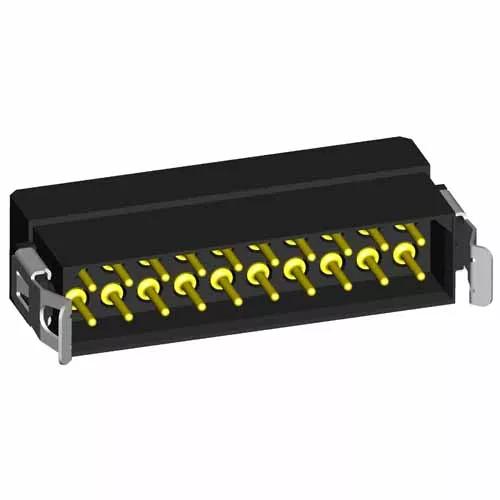

6+6 Pos. Male DIL 24-28AWG Cable Conn. Kit, Latches
2.00mm Pitch High-Reliability Connector - Datamate L-Tek
- Complete kit: Double Row housing (with locking latches fitted), 12 x barrel crimp contacts loose – Gold finish on contact area and crimp area.
- Small Bore – suitable for 24 to 28AWG cable (Ø1.1mm max insulation). Spare contacts = M80-0410005. Locking latches – tooling required to separate mated connectors.
EU RoHS Status:
Cable Conductor Size:
Mating Pin Size:
Dependent on mating connector
-55°C to +125°C
Style of Latches:
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Termination:
Finish / Plating on Contact Surface:
Base Material of Contact:
Polyamide (Nylon) 46
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
16.10 x 6.00 x 11.70
Questions & Answers Ask a Question
Do you have a tool to help separate this connector when it is latched to the mating half?
The tool you need is the Z80-299. This is a kit of a handle, cross-bars and two latch separators, and has instructions to help you assemble the tool to the right size for your connector.
Was this answer helpful?
100% found this helpful
M80-8121205 CAD Model (ZIP file containing STP and IGES)Download
Test Report HT006 - Datamate L-Tek and J-Tek Male Crimp Retention and Integrity (Pull-Off Force)
Test Report HT011 - Datamate Mechanical - High Temperature Mould material for L-Tek crimp sockets
Test Report HT016 - Datamate L-Tek Female Crimp detailed Mechanical Forces and Contact Resistance
