M80-8090305

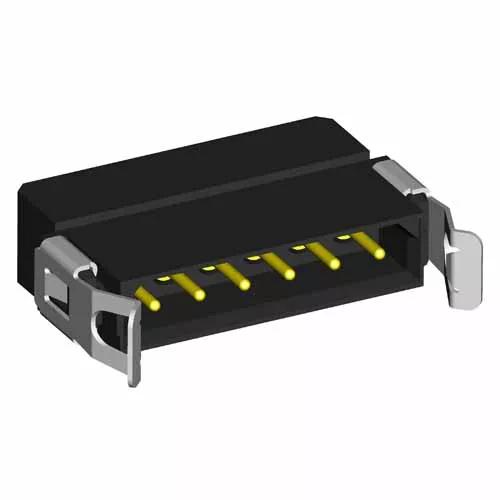

3 Pos. Male SIL 22AWG Cable Conn. Kit, Latches

2.00mm Pitch High-Reliability Connector - Datamate L-Tek

  • Complete kit: Single Row housing (with locking latches fitted), 3 x barrel crimp contacts loose – Gold finish on contact area and crimp area.
  • Large Bore – suitable for 22AWG cable (Ø1.1mm max insulation). Spare contacts = M80-0400005. Locking latches – tooling required to separate mated connectors.
  • For complete pin numbering or pin out information, see Component Specification C005XX.
Add to Favorites

Technical Details

Specification

Contact Pitch:

2.00mm (0.079")

Contact Gender:

Male/Plug

Connector Orientation:

Straight

Connection Type:

Cable (Crimp)

Cable Conductor Size:

22AWG

Mating Pin Size:

Ø0.5mm

Current Rating:

Dependent on mating connector

Operating Temperature:

-55°C to +125°C

Style of Latches:

Locking Latch

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

1

Number of Signal Contacts:

3

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Brass

Housing Material:

Polyamide (Nylon) 46

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.556g

Overall Dimensions (L x W x D) in mm:

10.10 x 4.00 x 11.70

Availability

193 in stock

Info Circle

Low availability or made to order”: “This product is typically manufactured to order. When out of stock, minimum order quantities may apply.

Limited availability or made-to-order
Distributor Location Quantity (Updated Daily)
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 193

Questions & Answers Ask a Question

Is there a hood or connector cover applicable for this connector? Does the M80-880xx98 hood work?

The M80-880 hoods are designed for dual-row female crimp connectors M80-888xx05 and M80-889xx05 only – they do not fit on the male crimp connectors from the Datamate L-Tek range.  We don’t have a strain relief hood, backshell or connector cover available for the male crimp connectors in Datamate L-Tek, sorry.

What is the thinnest gauge of wire which can be used with this connector?

This connector is only designed to be used with 22AWG equipment wire. The diameter of the insulation must be below 1.1mm diameter to fit within the rear of the contact. However, only the conductor is crimped, so we do not specify a lower limit on the diameter of the insulation.

Do you have a tool to help separate this connector when it is latched to the mating half?

The tool you need is the Z80-299. This is a kit of a handle, cross-bars and two latch separators, and has instructions to help you assemble the tool to the right size for your connector.
