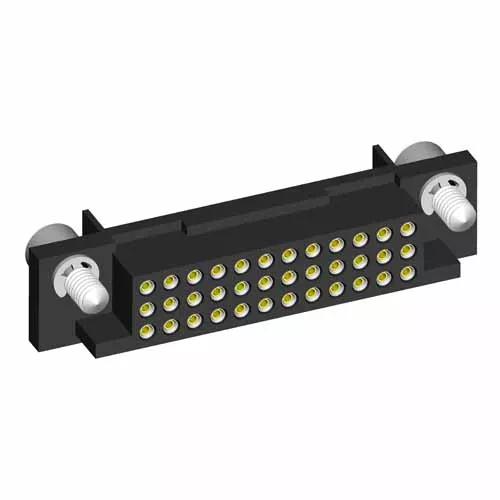

17 x 3-Row Female 22AWG Cable Conn. Kit, Jackscrews
2.00mm Pitch Datamate 3-Row Connector (Legacy Series)
- Complete kit: Triple Row housing with 2mm hex socket head (Allen) jackscrews fitted and potting walls retained, 51 x contacts loose.
- Large Bore – suitable for 22AWG cable (Ø1.1mm max insulation). Spare contacts = M80-0110005. Gold finish on contact clip and contact shell.
- For complete pin numbering or pin out information, see Component Specification C017XX.
EU RoHS Status:
Cable Conductor Size:
Mating Pin Size:
-55°C to +125°C
Style of Jackscrews:
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Termination:
Finish / Plating on Contact Surface:
Base Material of Contact:
Beryllium Copper contact clip, Brass shell
Polyamide (Nylon) 46
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
47.00 x 8.40 x 10.00
