Home > M80-7054505
Active Product

M80-7054505

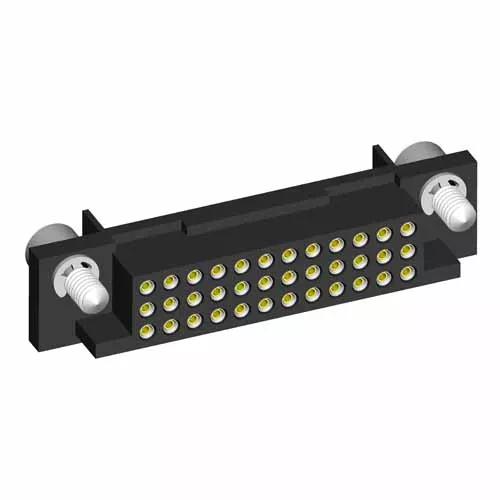

15 x 3-Row Female 24-28AWG Cable Conn. Kit, Jackscrews

2.00mm Pitch Datamate 3-Row Connector (Legacy Series)

Add to Favorites

Made to order

6 similiar products View products

Samacsys account required

Download

No login is required

Product Description

  • Complete kit: Triple Row housing with 2mm hex socket head (Allen) jackscrews fitted and potting walls retained, 45 x contacts loose.
  • Small Bore – suitable for 24 to 28AWG cable (Ø1.1mm max insulation). Spare contacts = M80-0130005. Gold finish on contact area and termination.
  • For complete pin numbering or pin out information, see Component Specification C017XX.

Technical Details

Specification

Contact Pitch:

2.00mm (0.079")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Straight

Connection Type:

Cable (Crimp)

Cable Conductor Size:

24-28AWG

Mating Pin Size:

Ø0.5mm

Current Rating:

3.3A max individual contact, 3A max simultaneous (25°C)

Operating Temperature:

-55°C to +125°C

Style of Jackscrews:

Floating Jackscrew with Hex Socket Head (Standard Gender)

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

3

Number of Signal Contacts:

45

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper contact clip, Brass shell

Housing Material:

Polyamide (Nylon) 46

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tray

Dimensions

Individual Part Weight:

5.384g

Overall Dimensions (L x W x D) in mm:

43.00 x 8.40 x 10.00

Thread Size:

M2.5

Frequently Asked Questions Ask a Question

When I crimp this terminal, the conductor crimp is over the inspection hole – isn’t this a defect per IPC/WHMA-A-620?

We have a support article relating to this question, but essentially the hole you see is not designed to be an inspection hole. It is a plating hole, to allow the finish materials to reach the bottom of the crimp bore and help ensure performance. As such it is not relevant to IPC-A-620. Applying a crimp using the correct tools will indeed overlap the plating hole by 25 to 50%, but this is intended and expected. The design of the Datamate connector is so compact, there is no room to move the crimp area away from this hole without making the whole connector design larger.

Was this answer useful?

Downloads

TECHNICAL DOCUMENTS

TEST REPORTS

ENVIRONMENTAL COMPLIANCE

RoHS Compliant (2015/863/EU) with Exemption 6c

PDF Download
