2.00mm Pitch Datamate 3-Row Connector (Legacy Series)

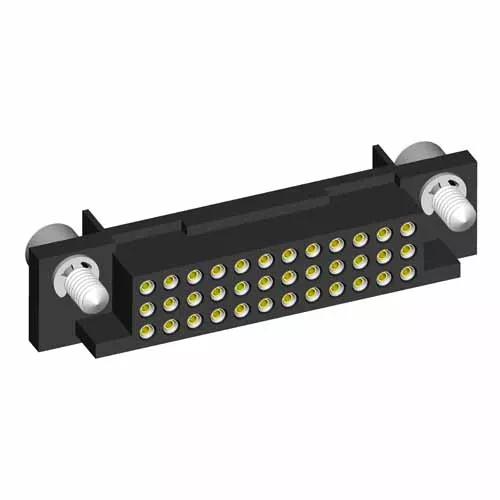

Complete kit: Triple Row housing with 2mm hex socket head (Allen) jackscrews fitted and potting walls retained, 27 x contacts loose.
Small Bore - suitable for 24 to 28 AWG cable (Ø1.1mm max insulation). Spare contacts = M80-0130005. Gold finish on contact area and termination.
For complete pin numbering or pin out information, see Component Specification C017XX.
View Technical Details & Downloads
Checking stock availability...
Check Availability
Related Products
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Product Information
Technical Documentation
Environmental Compliance
Test Reports
Technical Details
Product Characteristics
End Stackable:
No
Style of Jackscrews:
Screw Fixing (floating) with Hex Socket Head
Mating Pin Size:
Ø0.5mm
Number of Rows:
3
Connector Orientation:
Straight
Country of Origin:
GB
Side Stackable:
No
Number of Signal Contacts:
27
Operating Temperature:
-55°C to +125°C
RoHS Status:
RoHS Compliant (2015/863/EU) with Exemption 6c
Current Rating:
3.3A max individual contact, 3A max simultaneous (25°C)
Polarised:
Yes
Cuttable:
No
Materials
Finish / Plating on Contact Surface:
Gold
Housing Material:
Polyamide (Nylon) 46
Base Material of Contact:
Beryllium Copper contact clip, Brass shell
Flammability Rating:
UL94V-0
Packaging Style:
Tray
Finish / Plating on Termination:
Gold
Housing Colour:
Black
Dimensions
Contact Pitch:
2.00mm (0.079")
Weight:
3.73g
Dimensions:
31.00 x 8.40 x 10.00
Thread Size:
M2.5
Wire Size:
24 AWG26 AWG28 AWG
Downloads
Product Training Module - Cable Connectors and Assemblies from Harwin
Product Training Module - Cable Products from Harwin
IS-01 - M22520/2-01 Hand Crimp Tool Instruction Sheet
IS-25 - Z80-280 Assembly Tool Instruction Sheet
Distributor part numbers for suitable cables for Datamate + Gecko + M300 & Kona
Product Datasheet - Datamate range: signal connectors (HRi)
Technical Drawing / Datasheet - M80-705.pdf
C017XX Component Specification - Datamate M80-7XX Legacy 3-Row connectors
C049XX Component Specification - Cable Assembly Specifications for all HRi products
Outgassing data for Harwin products (plastics)
Plating thickness on Datamate signal contacts & T-Contact
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement - includes all material legislations
Material composition for M80-705 series
RoHS - M80-7052705
Test Report HT001 - Datamate Mechanical Endurance - number of cycles + up to 10 +000
