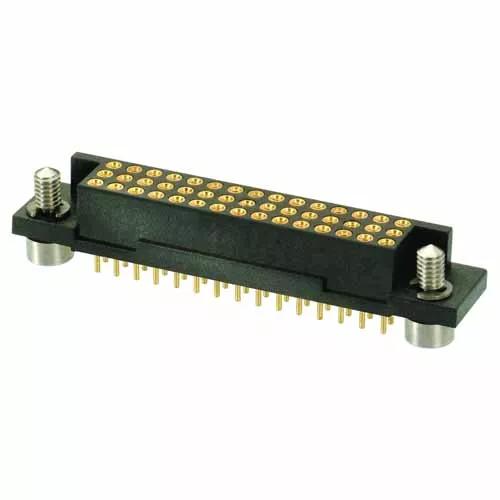

Image may be representative. Refer to the product title for more information.
Triple Row, 51 (3 x 17) x 3mm PC Tail contacts with jackscrews - Gold finish on contact area and termination.
Potting walls removed on connector housing. Jackscrew head accepts 2mm A/F hex (Allen) key.
For complete pin numbering or pin out information, see Component Specification C017XX.
Checking stock availability...
Technical Drawings & CADs
Jump to technical details
Technical Drawing
View
TraceParts
CAD/ECAD
TraceParts
3D Viewer
SamacSys
3D Model, PCB Symbol & Footprint
Related Products
Further Details
Jump To:
Technical Details
Product Characteristics
Materials
Dimensions
Downloads
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Technical Details
Product Characteristics
End Stackable
No
Style of Jackscrews
Screw Fixing (floating) with Hex Socket Head
Mating Pin Size
Ø0.5mm
Number of Rows
3
Connector Orientation
Vertical
Country of Origin
GB
Side Stackable
No
Number of Signal Contacts
51
Operating Temperature
-55°C to +125°C
RoHS Status
RoHS Compliant (2015/863/EU) with Exemption 6c
Current Rating
3.3A max individual contact, 3A max simultaneous (25°C)
Soldering Data
Max Solder Temperature: 260°C for 10 seconds
Polarised
Yes
Cuttable
No
Materials
Finish / Plating on Contact Surface
Gold
Housing Material
Polyamide (Nylon) 46
Base Material of Contact
Beryllium Copper contact clip, Brass shell
Flammability Rating
UL94V-0
Packaging Style
Tray
Finish / Plating on Termination
Gold
Housing Colour
Black
Dimensions
Contact Pitch
2.00mm (0.079")
Weight
5.159g
Dimensions
47.00 x 8.40 x 9.55
Thread Size
M2.5
PC Tail Length
3.00mm
Height of Connector above PCB
6.18mm
Downloads
Technical Documentation
Technical Drawing / Datasheet - M80-704.pdf
C017XX Component Specification - Datamate M80-7XX Legacy 3-Row connectors
Outgassing data for Harwin products (plastics)
Plating thickness on Datamate signal contacts & T-Contact
Test Reports
Test Report HT001 - Datamate Mechanical Endurance - number of cycles + up to 10 +000
Test Report HT002 - Datamate Voltage Proof + Voltage Flashover + and Insulation Resistance
Test Report HT004 - Datamate J-Tek Environmental - Vibration + Shock + Bump + Acceleration and other tests
Test Report HT015 - Datamate Environmental (Vibration + Shock + Bump) - J-Tek and 101Lok
Test Report HT017 - Datamate L-Tek Contact Resistance after 3 and 15 years Artificial Aging
Test Report HT019 - Datamate Frequency Testing to EIA-364-108-2000(2007) + USB2.0
Test Report HT025 - Datamate L-Tek Environmental - Detailed Vibration + Shock and Bump
Environmental Compliance
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement
Material composition for M80-704 series
RoHS Declaration - M80-7045105
