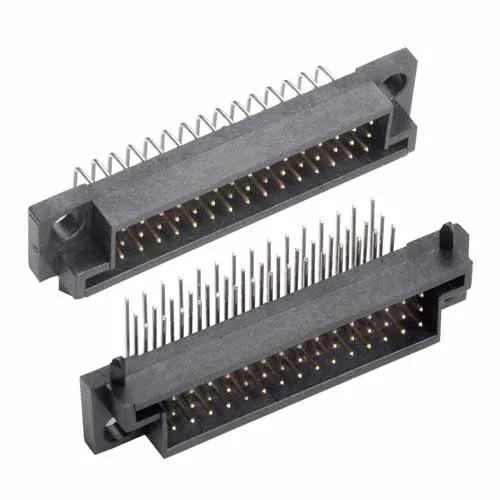

Triple Row Horizontal male connector, 51 (3 x 17) x 2.3mm Throughboard contacts, no jackscrews - Gold finish on contact area, Tin/Lead finish on termination.
2.00mm Pitch High-Reliability Datamate connector system.
For complete pin numbering or pin out information, see Component Specification C017XX.
View Technical Details
Out of Stock
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Technical Details
Product Characteristics
End Stackable:
No
Style of Jackscrews:
None fitted
Mating Pin Size:
Ø0.5mm
Number of Rows:
3
Connector Orientation:
Horizontal
Country of Origin:
GB
Side Stackable:
No
Number of Signal Contacts:
51
Operating Temperature:
-55°C to +125°C
RoHS Status:
Not RoHS Compliant (2015/863/EU)
Current Rating:
3.3A max individual contact, 3A max simultaneous (25°C)
Soldering Data:
Max Solder Temperature: 235°C for 5 seconds
Polarised:
Yes
Cuttable:
No
Materials
Finish / Plating on Contact Surface:
Gold
Housing Material:
Polyamide (Nylon) 46
Base Material of Contact:
Phosphor Bronze
Flammability Rating:
UL94V-0
Packaging Style:
Tray
Finish / Plating on Termination:
Tin/Lead
Housing Colour:
Black
Dimensions
Contact Pitch:
2.00mm (0.079")
Weight:
3.239g
Dimensions:
47.00 x 11.15 x 12.00
PC Tail Length:
2.60mm
Height of Connector above PCB:
9.00mm
Downloads
Technical Documentation
Technical Drawing / Datasheet - M80-703.pdf
C017XX Component Specification - Datamate M80-7XX Legacy 3-Row connectors
Outgassing data for Harwin products (plastics)
Plating thickness on Datamate signal contacts & T-Contact
Test Reports
Test Report HT001 - Datamate Mechanical Endurance - number of cycles + up to 10 +000
Test Report HT002 - Datamate Voltage Proof + Voltage Flashover + and Insulation Resistance
Test Report HT004 - Datamate J-Tek Environmental - Vibration + Shock + Bump + Acceleration and other tests
Test Report HT015 - Datamate Environmental (Vibration + Shock + Bump) - J-Tek and 101Lok
Test Report HT017 - Datamate L-Tek Contact Resistance after 3 and 15 years Artificial Aging
Test Report HT019 - Datamate Frequency Testing to EIA-364-108-2000(2007) + USB2.0
Test Report HT025 - Datamate L-Tek Environmental - Detailed Vibration + Shock and Bump
Environmental Compliance
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement
Material composition for M80-703 series
