M80-7014522

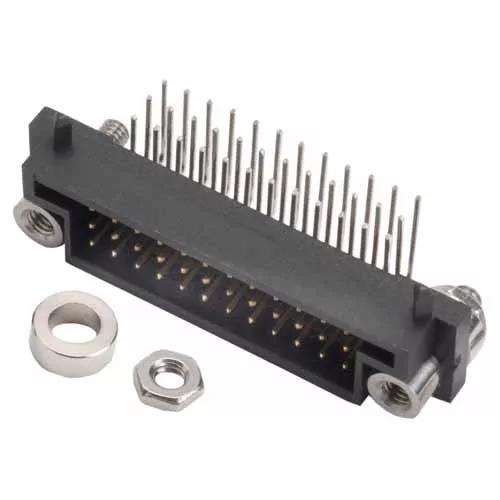

15 x 3-Row Male Horizontal Throughboard Conn. Jackscrews
2.00mm Pitch Datamate 3-Row Connector (Legacy Series)
3 in stock Check availability
4 similiar products View products
Samacsys account required
No login is required
Product Description
- Triple Row, 45 (3 x 15) x 2.3mm PC Tail contacts with board-mount jackscrews – Gold finish on contact area, Tin/Lead finish on termination.
- Hexagonal nuts and washers provided for assembly to panel mount stud.
- For complete pin numbering or pin out information, see Component Specification C017XX.
Samacsys account required
No login is required
Technical Details
Specification
EU RoHS Status:
Contact Pitch:
2.00mm (0.079")
Contact Gender:
Male/Plug
Connector Orientation:
Horizontal
Connection Type:
PC Tail / Throughboard
Mating Pin Size:
Ø0.5mm
Current Rating:
3.3A max individual contact, 3A max simultaneous (25°C)
Operating Temperature:
-55°C to +125°C
Soldering Data:
Max Solder Temperature: 235°C for 5 seconds
Style of Jackscrews:
Internal Thread Jackscrew with Board Mount Stud and Slotted Nuts (Standard Gender)
Polarising Features:
Yes
End Stackable:
No
Side Stackable:
No
Can be cut to another size:
No
Number of Rows:
3
Number of Signal Contacts:
45
Materials
Finish / Plating on Termination:
Tin/Lead
Finish / Plating on Contact Surface:
Gold
Base Material of Contact:
Phosphor Bronze
Housing Material:
Polyamide (Nylon) 46
Housing Colour:
Black
Housing Material UL Rating:
UL94V-0
Packaging Style:
Tray
Dimensions
Individual Part Weight:
5.425g
Overall Dimensions (L x W x D) in mm:
43.00 x 11.85 x 12.00
Thread Size:
M2.5
Height of Connector above PCB:
9.00mm
Length of Throughboard Tail:
2.60mm
Frequently Asked Questions Ask a Question
Are the board/panel mount nuts supplied with this connector, or do I have to order them separately?
Yes, these connectors are supplied with the board/panel mount nuts – they will come packaged in a separate bag.
