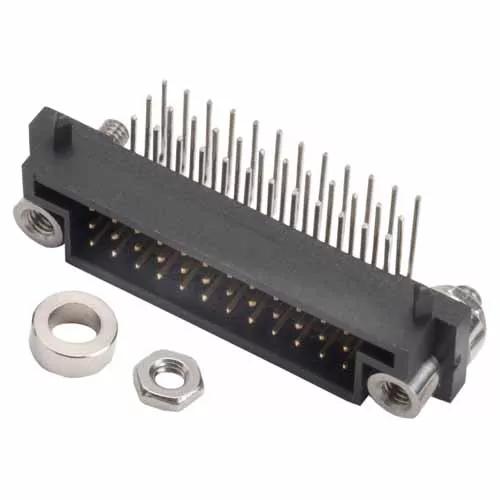

2.00mm Pitch Datamate 3-Row Connector (Legacy Series)
Triple Row, 27 (3 x 9) x 2.3mm PC Tail contacts with board-mount jackscrews - Gold finish on contact area, Tin/Lead finish on termination.
Hexagonal nuts and washers provided for assembly to panel mount stud.
For complete pin numbering or pin out information, see Component Specification C017XX.
View Technical Details & Downloads
Checking stock availability...
Check Availability
Related Products
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Technical Details
Product Characteristics
End Stackable:
No
Style of Jackscrews:
Internal Thread Fixing with Board/Front Panel Mount
Mating Pin Size:
Ø0.5mm
Number of Rows:
3
Connector Orientation:
Horizontal
Country of Origin:
GB
Side Stackable:
No
Number of Signal Contacts:
27
Operating Temperature:
-55°C to +125°C
RoHS Status:
Not RoHS Compliant (2015/863/EU)
Current Rating:
3.3A max individual contact, 3A max simultaneous (25°C)
Soldering Data:
Max Solder Temperature: 235°C for 5 seconds
Polarised:
Yes
Cuttable:
No
Materials
Finish / Plating on Contact Surface:
Gold
Housing Material:
Polyamide (Nylon) 46
Base Material of Contact:
Phosphor Bronze
Flammability Rating:
UL94V-0
Packaging Style:
Tray
Finish / Plating on Termination:
Tin/Lead
Housing Colour:
Black
Dimensions
Contact Pitch:
2.00mm (0.079")
Weight:
4.468g
Dimensions:
31.00 x 11.85 x 12.00
Thread Size:
M2.5
PC Tail Length:
2.60mm
Height of Connector above PCB:
9.00mm
Downloads
Technical Drawing / Datasheet - M80-701.pdf
C017XX Component Specification - Datamate M80-7XX Legacy 3-Row connectors
Outgassing data for Harwin products (plastics)
Plating thickness on Datamate signal contacts & T-Contact
Test Report HT001 - Datamate Mechanical Endurance - number of cycles + up to 10 +000
Test Report HT002 - Datamate Voltage Proof + Voltage Flashover + and Insulation Resistance
Test Report HT004 - Datamate J-Tek Environmental - Vibration + Shock + Bump + Acceleration and other tests
Test Report HT015 - Datamate Environmental (Vibration + Shock + Bump) - J-Tek and 101Lok
Test Report HT017 - Datamate L-Tek Contact Resistance after 3 and 15 years Artificial Aging
Test Report HT019 - Datamate Frequency Testing to EIA-364-108-2000(2007) + USB2.0
Test Report HT025 - Datamate L-Tek Environmental - Detailed Vibration + Shock and Bump
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement - includes all material legislations
Material composition for M80-701 series
RoHS - M80-7012722
