Active Product

M80-7003622

12 x 3-Row Male Vertical Throughboard Conn. Jackscrews

2.00mm Pitch Datamate 3-Row Connector (Legacy Series)

Add to Favorites

Loading… Check availability

4 similar products View products

Traceparts account required

Product Description

Triple Row, 36 (3 x 12) x 3mm PC Tail contacts with board-mount jackscrews – Gold finish on contact area, Tin/Lead finish on termination.
Hexagonal nuts and washers provided for assembly to panel mount stud.
For complete pin numbering or pin out information, see Component Specification C017XX.

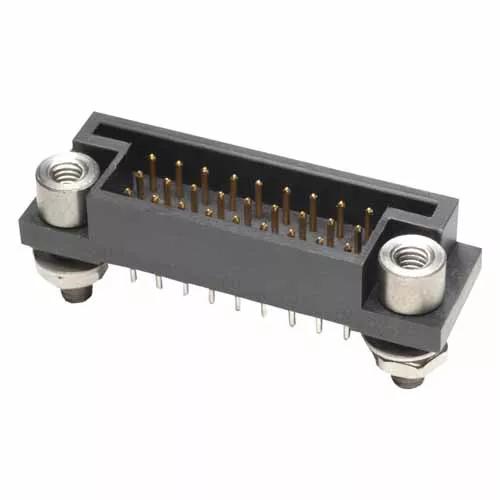

M80-7003622 - 12 x 3-Row Male Vertical Throughboard Conn. Jackscrews

Representative image of product family

Traceparts account required

Technical Details

EU RoHS Status:

Not RoHS Compliant (2015/863/EU)

Contact Pitch:

2.00mm (0.079")

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

Ø0.5mm

Current Rating:

3.3A max individual contact, 3A max simultaneous (25°C)

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 235°C for 5 seconds

Style of Jackscrews:

Internal Thread Jackscrew with Board Mount Stud and Slotted Nuts (Standard Gender)

Polarising Features:

Yes

End Stackable:

Side Stackable:

Can be cut to another size:

Number of Rows:

Number of Signal Contacts:

Finish / Plating on Termination:

Tin/Lead

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

Polyamide (Nylon) 46

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tray

Individual Part Weight:

3.992g

Overall Dimensions (L x W x D) in mm:

37.00 x 9.00 x 11.85

Thread Size:

M2.5

Height of Connector above PCB:

6.10mm

Length of Throughboard Tail:

3.00mm

Frequently Asked Questions Ask a Question

Yes, these connectors are supplied with the board/panel mount nuts – they will come packaged in a separate bag.
