M80-7002742

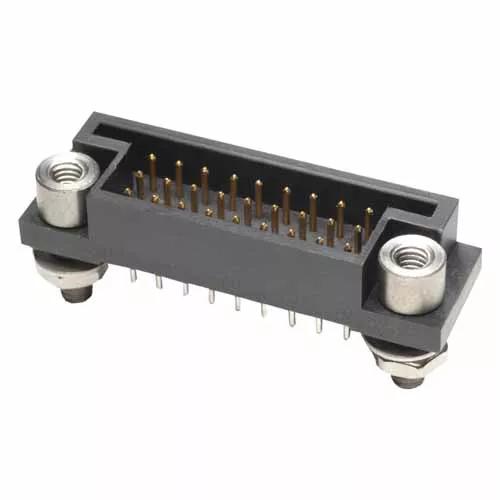

9 x 3-Row Male Vertical Throughboard Conn. Jackscrews

2.00mm Pitch Datamate 3-Row Connector (Legacy Series)

  • Triple Row, 27 (3 x 9) x 3mm PC Tail contacts with board-mount jackscrews – Gold finish on contact area, Tin finish on termination.
  • Hexagonal nuts and washers provided for assembly to panel mount stud.
  • For complete pin numbering or pin out information, see Component Specification C017XX.
Availability
Add to Favorites

Technical Details

Specification

Contact Pitch:

2.00mm (0.079")

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

Ø0.5mm

Current Rating:

3.3A max individual contact, 3A max simultaneous (25°C)

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Style of Jackscrews:

Internal Thread Jackscrew with Board Mount Stud and Slotted Nuts (Standard Gender)

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

3

Number of Signal Contacts:

27

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

Polyamide (Nylon) 46

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tray

Dimensions

Individual Part Weight:

3.611g

Overall Dimensions (L x W x D) in mm:

31.00 x 9.00 x 11.85

Thread Size:

M2.5

Height of Connector above PCB:

6.10mm

Length of Throughboard Tail:

3.00mm
