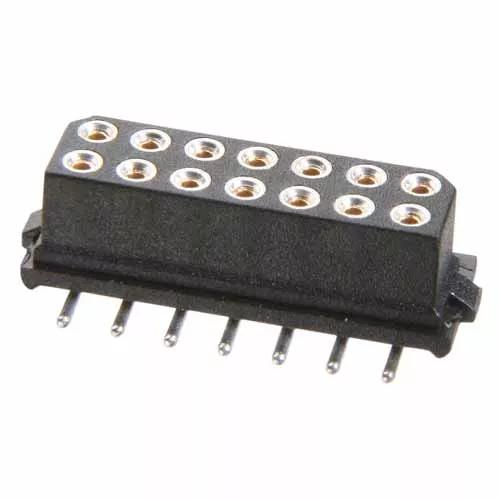

6+6 Pos. Female DIL Vertical SMT Conn. for Latches (P+P)
2.00mm Pitch High-Reliability Connector - Datamate L-Tek
- Double Row female connector, 12 (6+6) x Surface Mount contacts – Gold finish on contact area and termination.
- If mating to a latched male connector, clearance holes in PCB are required. Packaged in tubes, with Pick & Place caps.
- For complete pin numbering or pin out information, see Component Specification C005XX.
EU RoHS Status:
Surface Mount (SMT)
Mating Pin Size:
3.3A max individual contact, 3A max simultaneous (25°C)
-55°C to +125°C
Max Solder Temperature: 260°C for 10 seconds
Style of Latches:
Compatible with latches
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Termination:
Finish / Plating on Contact Surface:
Base Material of Contact:
Beryllium Copper contact clip, Brass shell
Polyamide (Nylon) 46
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
15.15 x 7.50 x 5.60
Height of Connector above PCB:
128 in stock
Low availability or made to order: This product is typically manufactured to order. When out of stock, minimum order quantities may apply.
Questions & Answers Ask a Question
Do you have a tool to help separate this connector when it is latched to the mating half?
The tool you need is the Z80-299. This is a kit of a handle, cross-bars and two latch separators, and has instructions to help you assemble the tool to the right size for your connector.
