M80-6811042P

5+5 Pos. Female DIL Vertical SMT Conn. for Latches (P+P)

2.00mm Pitch High-Reliability Connector - Datamate L-Tek

Order Sample

Add to Favorites

Loading… Check availability

5 similar products View products

Traceparts account required

Product Description

Double Row female connector, 10 (5+5) x Surface Mount contacts – Gold finish on contact area, Tin finish on termination.
If mating to a latched male connector, clearance holes in PCB are required. Packaged in tubes, with Pick & Place caps.
For complete pin numbering or pin out information, see Component Specification C005XX.

M80-6811042P - 5+5 Pos. Female DIL Vertical SMT Conn. for Latches (P+P)

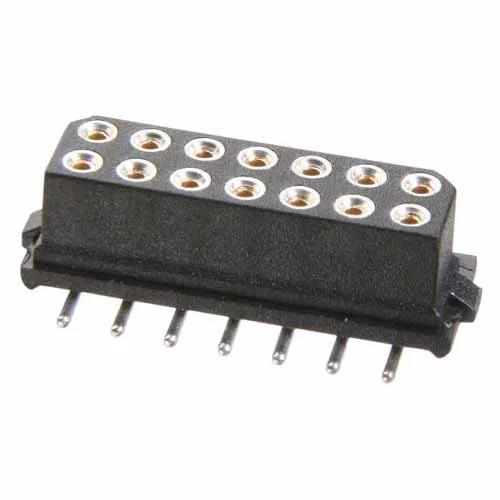

Representative image of product family

Traceparts account required

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with Exemption 6c

Contact Pitch:

2.00mm (0.079")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Vertical

Connection Type:

Surface Mount (SMT)

Mating Pin Size:

Ø0.5mm

Current Rating:

3.3A max individual contact, 3A max simultaneous (25°C)

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Style of Latches:

Compatible with latches

Polarising Features:

Yes

End Stackable:

Side Stackable:

Can be cut to another size:

Number of Rows:

Number of Signal Contacts:

Entry Style:

Top Entry

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper contact clip, Brass shell

Housing Material:

Polyamide (Nylon) 46

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Individual Part Weight:

0.843g

Overall Dimensions (L x W x D) in mm:

13.15 x 7.50 x 5.60

Height of Connector above PCB:

5.60mm

Mating Profiles:

Catalog page - Datamate L-Tek Mating Profiles

Frequently Asked Questions Ask a Question

The tool you need is the Z80-299. This is a kit of a handle, cross-bars and two latch separators, and has instructions to help you assemble the tool to the right size for your connector.

Was this answer useful?
