9+9 Pos. Female DIL 22AWG Cable Conn. Kit, for Latches
2.00mm Pitch High-Reliability Connector - Datamate L-Tek
Made to order
5 similiar products View products

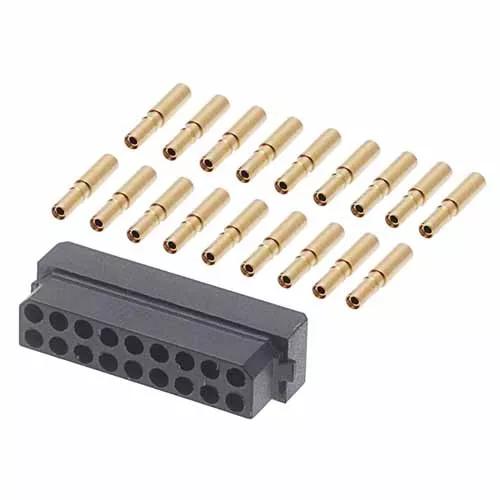

- Complete kit: Double Row housing (using high-temperature plastic, resists to 295°C), 18 x barrel crimp contacts loose – Gold finish on contact area and termination.
- Large Bore – suitable for 22AWG cable (Ø1.1mm max insulation). Spare contacts = M80-0110005.
- For complete pin numbering or pin out information, see Component Specification C005XX.
EU RoHS Status:
Cable Conductor Size:
Mating Pin Size:
3.3A max individual contact, 3A max simultaneous (25°C)
-55°C to +125°C
Style of Latches:
Compatible with latches
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Termination:
Finish / Plating on Contact Surface:
Base Material of Contact:
Beryllium Copper contact clip, Brass shell
Polyamide (Nylon) 46
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
21.15 max x 5.40 x 8.15 max
Frequently Asked Questions Ask a Question
When I crimp this terminal, the conductor crimp is over the inspection hole – isn’t this a defect per IPC/WHMA-A-620?
We have a support article relating to this question, but essentially the hole you see is not designed to be an inspection hole. It is a plating hole, to allow the finish materials to reach the bottom of the crimp bore and help ensure performance. As such it is not relevant to IPC-A-620. Applying a crimp using the correct tools will indeed overlap the plating hole by 25 to 50%, but this is intended and expected. The design of the Datamate connector is so compact, there is no room to move the crimp area away from this hole without making the whole connector design larger.
Was this answer useful?
Do you have a tool to help separate this connector when it is latched to the mating half?
The tool you need is the Z80-299. This is a kit of a handle, cross-bars and two latch separators, and has instructions to help you assemble the tool to the right size for your connector.
Was this answer useful?
RoHS Compliant (2015/863/EU) with Exemption 6cPDF Download
