M80-5T13842MC

19+19 Pos. Male DIL Vertical Throughboard Conn. 101Lok

2.00mm Pitch High-Reliability Connector - Datamate J-Tek

Order Sample

Add to Favorites

Made to order

6 similiar products View products

Samacsys account required

Download

No login is required

Product Description

Double Row, 3mm PC Tail connector with 101Lok retainers – 38 contacts (19+19).
Gold finish on contact area, Tin finish on termination.
For complete pin numbering or pin out information, see Component Specification C005XX.

M80-5T13842MC - 19+19 Pos. Male DIL Vertical Throughboard Conn. 101Lok

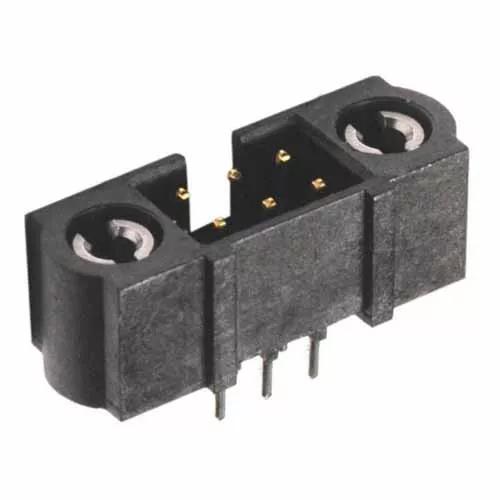

Representative image of product family

Samacsys account required

Download

No login is required

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with no Exemption required

Contact Pitch:

2.00mm (0.079")

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

Ø0.5mm

Current Rating:

Dependent on mating contact

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Style of Jackscrews:

101Lok Bayonet Receptacle Fixing

Polarising Features:

Yes

End Stackable:

Side Stackable:

Can be cut to another size:

Number of Rows:

Number of Signal Contacts:

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

PPS

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Individual Part Weight:

2.153g

Overall Dimensions (L x W x D) in mm:

48.00 x 6.00 x 8.85

Height of Connector above PCB:

5.55mm

Length of Throughboard Tail:

3.30mm

Mating Profiles:

Catalog page - Datamate J-Tek Mating Profiles
