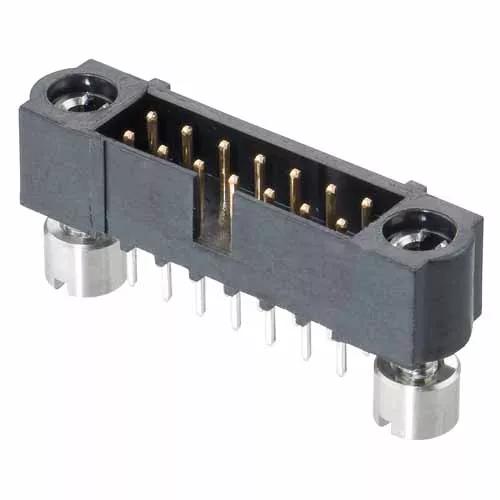

12+12 Pos. Male DIL Vertical Throughboard Conn. 101Lok
2.00mm Pitch High-Reliability Connector - Datamate J-Tek
- Double Row, 3mm PC Tail connector, 101Lok retainers with 5mm board mount stud + slotted nuts supplied loose – 24 contacts (12+12). For spare board mount nuts, order M80-2130000B.
- Gold finish on contact area, Tin finish on termination. Slotted nuts provided for assembly to board mount jackscrews.
- For complete pin numbering or pin out information, see Component Specification C005XX.
EU RoHS Status:
PC Tail / Throughboard
Mating Pin Size:
Dependent on mating contact
-55°C to +125°C
Max Solder Temperature: 260°C for 10 seconds
Style of Jackscrews:
101Lok Bayonet Receptacle with Board Mount Stud
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Termination:
100% Tin over Nickel
Finish / Plating on Contact Surface:
Base Material of Contact:
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
34.00 x 6.00 x 10.55
Height of Connector above PCB:
Length of Throughboard Tail:
Low availability or made to order: This product is typically manufactured to order. When out of stock, minimum order quantities may apply.
* Please request minimum quantities, lead times and pricing from an authorized distributor.
Questions & Answers Ask a Question
Are the board/panel mount nuts supplied with this connector, or do I have to order them separately?
Yes, these connectors are supplied with the board/panel mount nuts – they will come packaged in a separate bag. If you need some spares, you can use part number M80-2130000B to order more.
What torque value should be used for these jackscrews?
The torque value for board or panel mounting is 21±2cmN. This value is given in the Component Specification C005xx (page 14).
