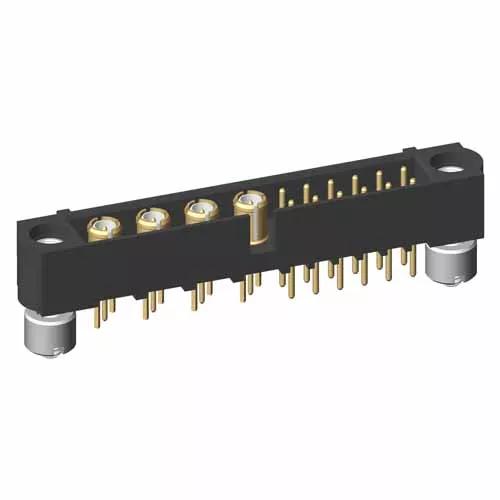

12+4 Pos. Male Signal+Coax Vertical Throughboard Conn. Jackscrews
2.00mm/4.00mm Pitch High-Reliability Connector - Datamate Mix-Tek
- Jackscrews + 5mm board mount (with slotted nuts), 12 x signal and 4 x coax contacts assembled for vertical PCB connection.
- 3mm length PC Tail signal contacts, 3mm length PC Tail coax contacts.
- Gold finish on contact area and termination.
EU RoHS Status:
PC Tail / Throughboard
Mating Pin Size:
Coax: 0.5A, Signal: Dependent on mating connector
-55°C to +125°C
Max Solder Temperature: 260°C for 10 seconds
Style of Jackscrews:
Jackscrew with Board Mount
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Number of Special (Power or Coax) Contacts:
Finish / Plating on Termination:
Finish / Plating on Contact Surface:
Base Material of Contact:
Phosphor Bronze (signal), Phosphor Bronze inner contact + Beryllium Copper outer shell (coax)
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
38.00 x 6.00 x 10.55
Height of Connector above PCB:
Length of Throughboard Tail:
3.30mm & 3.00mm
No availability information is currently available for this product.
M80-5T11205M3-04-311-00-000 CAD Model (ZIP file containing STP and IGES)Download
Test Report HT004 - Datamate J-Tek Environmental - Vibration, Shock, Bump, Acceleration and other tests
Test Report HT020 - Datamate Mix-Tek Special Contacts - Environmental, Mechanical and Electrical
