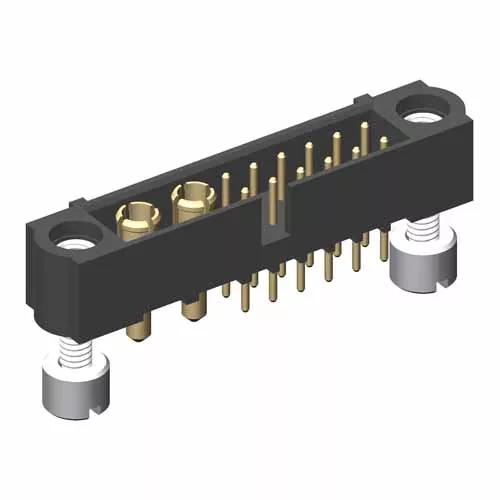

M80-5T11205M3-02-331-00-000

12+2 Pos. Male Signal+Power Vertical Throughboard Conn. Jackscrews


2.00mm/4.00mm Pitch High-Reliability Connector - Datamate Mix-Tek

  • Jackscrews + 5mm board mount (with slotted nuts), 12 x signal and 2 x power contacts assembled for vertical PCB connection. 3mm length PC Tail signal contacts, 3.5mm length PC Tail power contacts.

  • Gold finish on contact area and termination. For spare board mount nuts, order M80-2130000B.

  • For complete pin numbering or pin out information, see the Component Specification C005XX.

View Technical Details & Downloads


Checking stock availability...

Check Availability

Further Details

Jump To:

Technical Details

Product Characteristics

Materials

Dimensions

Downloads

Technical Documentation

Product Information

Test Reports

Environmental Compliance

Technical Details

Product Characteristics

  • End Stackable:

    No

  • Style of Jackscrews:

    Internal Thread Fixing with Board/Front Panel Mount

  • Mating Pin Size:

    Ø0.5mm (signal)

  • Number of Rows:

    Mixed

  • Connector Orientation:

    Vertical

  • Country of Origin:

    GB

  • Side Stackable:

    No

  • Number of Power/Coax Contacts:

    2

  • Number of Signal Contacts:

    12

  • Operating Temperature:

    -55°C to +125°C

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with Exemption 6c

  • Current Rating:

    Signal = 3.3A max individual contact, 3A max simultaneous; Power = 20A max per contact

  • Soldering Data:

    Max Solder Temperature: 260°C for 10 seconds

  • Polarised:

    Yes

  • Cuttable:

    No

Materials

  • Finish / Plating on Contact Surface:

    Gold

  • Housing Material:

    PPS

  • Base Material of Contact:

    Phosphor Bronze (signal), Beryllium Copper (power)

  • Flammability Rating:

    UL94V-0

  • Packaging Style:

    Tube

  • Finish / Plating on Termination:

    Gold

  • Housing Colour:

    Black

Dimensions

  • Contact Pitch:

    2.00mm/4.00mm (0.079"/0.157")

  • Weight:

    2.349g

  • Dimensions:

    30.00 x 6.00 x 10.55

  • Thread Size:

    M2

  • PC Tail Length:

    3.30mm and 3.50mm

  • Height of Connector above PCB:

    5.55mm

Downloads

    Technical Documentation

  • Technical Drawing / Datasheet - M80-5T11205M3-02-331-00-000.pdf

  • C005XX Component Specification - Datamate M80 and M83 Series (2.00mm + 4.00mm pitch High-Reliability)

  • Outgassing data for Harwin products (plastics)

  • Plating thickness on Datamate signal contacts & T-Contact

  • Plating thickness on Datamate power and coax contacts

  • Product Information

  • Catalog page - Datamate Mix-Tek Pin Numbering + Mating Profiles

  • Product Training Module - Overview Guide to the Datamate range + 2 & 4mm pitch High-Reliability

  • Product Training Module - Guide to Datamate Latches (L-Tek) + Jackscrews (J-Tek) and 101Lok

  • Datamate J-Tek and Mix-Tek - list of currently available Jackscrew types and their mating jackscrews

  • Product Datasheet - Datamate Mix-Tek range (HRi)

  • Test Reports

  • Test Report HT001 - Datamate Mechanical Endurance - number of cycles + up to 10 +000

  • Test Report HT002 - Datamate Voltage Proof + Voltage Flashover + and Insulation Resistance

  • Test Report HT004 - Datamate J-Tek Environmental - Vibration + Shock + Bump + Acceleration and other tests

  • Test Report HT015 - Datamate Environmental (Vibration + Shock + Bump) - J-Tek and 101Lok

  • Test Report HT017 - Datamate L-Tek Contact Resistance after 3 and 15 years Artificial Aging

  • Test Report HT019 - Datamate Frequency Testing to EIA-364-108-2000(2007) + USB2.0

  • Test Report HT020 - Datamate Mix-Tek Special Contacts - Environmental + Mechanical and Electrical

  • Test Report HT025 - Datamate L-Tek Environmental - Detailed Vibration + Shock and Bump

  • Test Report HT035 - Datamate Mix-Tek Power Connectors - Mechanical and Electrical

  • Test Report HT078 - Datamate Mix-Tek 20A Power testing

  • Environmental Compliance

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Environmental Legislation Statement - includes all material legislations

  • RoHS - M80-5T11205M3-02-331-00-000
