M80-5T11205M1-04-331-00-000

12+4 Pos. Male Signal+Power Vertical Throughboard Conn. Jackscrews

2.00mm/4.00mm Pitch High-Reliability Connector - Datamate Mix-Tek

Order Sample

Add to Favorites

Loading… Check availability

1 similar products View products

Traceparts account required

Product Description

Jackscrews, 12 x signal and 4 x power contacts assembled for vertical PCB connection. 3mm length PC Tail signal contacts, 3.5mm length PC Tail power contacts.
Gold finish on contact area and termination.
For complete pin numbering or pin out information, see Component Specification C005XX.

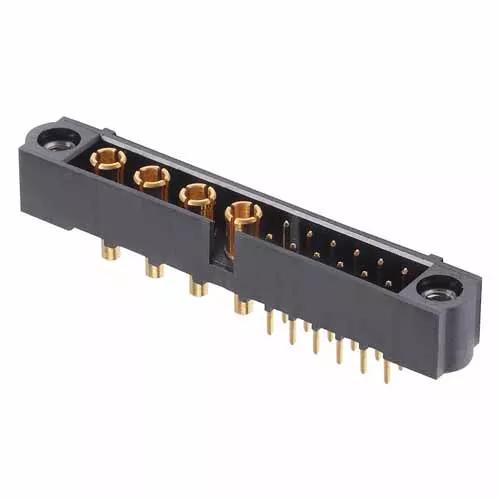

M80-5T11205M1-04-331-00-000 - 12+4 Pos. Male Signal+Power Vertical Throughboard Conn. Jackscrews

Youtube video for M80-5T11205M1-04-331-00-000

CAD drawing of M80-5T11205M1-04-331-00-000

Traceparts account required

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with Exemption 6c

Contact Pitch:

2.00mm/4.00mm (0.079"/0.157")

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

Ø0.5mm (signal)

Current Rating:

Signal = 3.3A max individual contact, 3A max simultaneous; Power = 20A max per contact

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Style of Jackscrews:

Internal Thread Jackscrew (Standard Gender)

Polarising Features:

Yes

End Stackable:

Side Stackable:

Can be cut to another size:

Number of Rows:

Mixed

Number of Signal Contacts:

Number of Special (Power or Coax) Contacts:

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze (signal), Beryllium Copper (power)

Housing Material:

PPS

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Individual Part Weight:

2.329g

Overall Dimensions (L x W x D) in mm:

38.00 x 6.00 x 9.05

Thread Size:

Height of Connector above PCB:

5.55mm

Length of Throughboard Tail:

3.30mm and 3.50mm

Mating Profiles:

Catalog page - Datamate Mix-Tek Pin Numbering, Mating Profiles

Frequently Asked Questions Ask a Question

The torque value for mating jackscrews is 23cmN max. This value is given in the Component Specification C005xx (page 14).

Was this answer useful?
