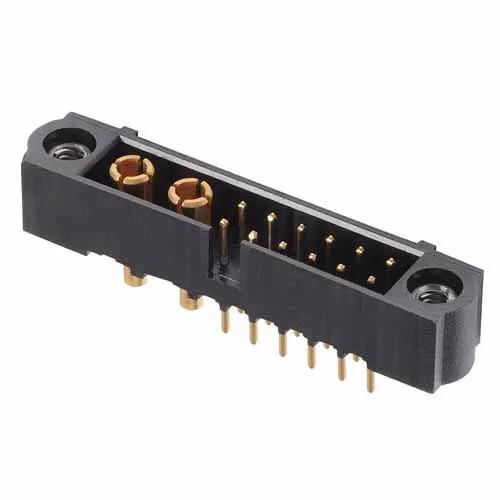

M80-5T11205M1-02-331-00-000

12+2 Pos. Male Signal+Power Vertical Throughboard Conn. Jackscrews

2.00mm/4.00mm Pitch High-Reliability Connector - Datamate Mix-Tek

Add to Favorites

107 in stock   Check availability

1 similiar products View products

Samacsys account required

Download

No login is required

Product Description

  • Jackscrews, 12 x signal and 2 x power contacts assembled for vertical PCB connection. 3mm length PC Tail signal contacts, 3.5mm length PC Tail power contacts.
  • Gold finish on contact area and termination.
  • For complete pin numbering or pin out information, see Component Specification C005XX.

Technical Details

Specification

Contact Pitch:

2.00mm/4.00mm (0.079"/0.157")

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

Ø0.5mm (signal)

Current Rating:

Signal = 3.3A max individual contact, 3A max simultaneous; Power = 20A max per contact

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Style of Jackscrews:

Internal Thread Jackscrew (Standard Gender)

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

Mixed

Number of Signal Contacts:

12

Number of Special (Power or Coax) Contacts:

2

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze (signal), Beryllium Copper (power)

Housing Material:

PPS

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Dimensions

Individual Part Weight:

1.698g

Overall Dimensions (L x W x D) in mm:

30.00 x 6.00 x 9.05

Thread Size:

M2

Height of Connector above PCB:

5.55mm

Length of Throughboard Tail:

3.30mm & 3.50mm

Frequently Asked Questions Ask a Question

What torque value should be used for these jackscrews?

The torque value for mating jackscrews is 23cmN max. This value is given in the Component Specification C005xx (page 14).

Was this answer useful?

What is the mating cycle-life of this part?

All Datamate connectors are rated to 500 operating cycles minimum. You can locate this figure (usually called Durability) in the Datamate Component Specification C005xx. This document is also listed in the Technical Documents, under Downloads further down the page.

Was this answer useful?
