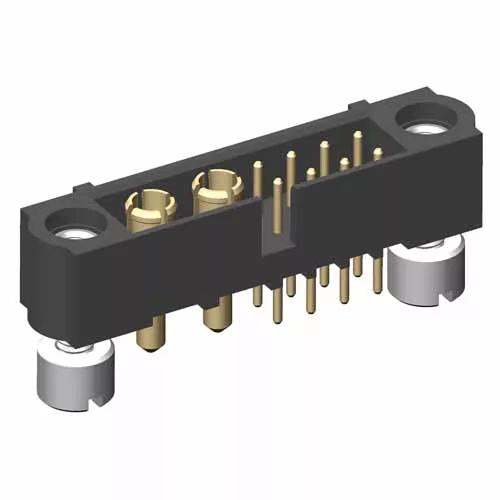

8+2 Pos. Male Signal+Power Vertical Throughboard Conn. Jackscrews
2.00mm/4.00mm Pitch High-Reliability Connector - Datamate Mix-Tek
- Jackscrews + 3.5mm board mount (with slotted nuts), 8 x signal and 2 x power contacts assembled for vertical PCB connection. 3mm length PC Tail signal contacts, 3.5mm length PC Tail power contacts.
- Gold finish on contact area and termination. For spare board mount nuts, order M80-2130000B.
- For complete pin numbering or pin out information, see Component Specification C005XX.
EU RoHS Status:
PC Tail / Throughboard
Mating Pin Size:
Signal = 3.3A max individual contact, 3A max simultaneous; Power = 20A max per contact
-55°C to +125°C
Max Solder Temperature: 260°C for 10 seconds
Style of Jackscrews:
Internal Thread Jackscrew with Board Mount Stud and Slotted Nuts (Standard Gender)
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Number of Special (Power or Coax) Contacts:
Finish / Plating on Termination:
Finish / Plating on Contact Surface:
Base Material of Contact:
Phosphor Bronze (signal), Beryllium Copper (power)
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
26.00 x 6.00 x 9.05
Height of Connector above PCB:
Length of Throughboard Tail:
3.30mm & 3.50mm
Frequently Asked Questions Ask a Question
Are the board/panel mount nuts supplied with this connector, or do I have to order them separately?
Yes, these connectors are supplied with the board/panel mount nuts – they will come packaged in a separate bag. If you need some spares, you can use part number M80-2130000B to order more.
Was this answer useful?
What torque value should be used for these jackscrews?
The torque value for board or panel mounting is 21±2cmN. The torque value for mating jackscrews is 23cmN max. Both values are given in the Component Specification C005xx (page 14).
Was this answer useful?
RoHS Compliant (2015/863/EU) with Exemption 6cPDF Download
