M80-5T10605M2-04-331-00-000

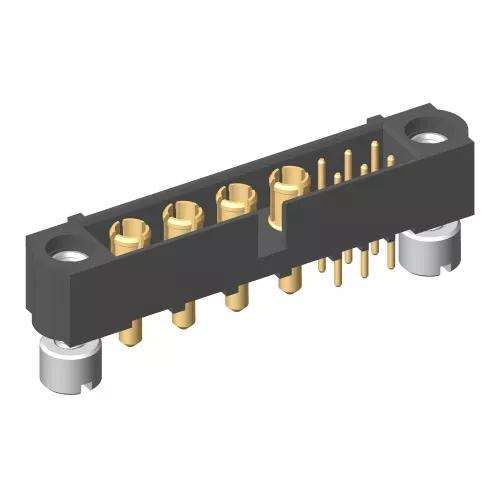

6+4 Pos. Male Signal+Power Vertical Throughboard Conn. Jackscrews


2.00mm/4.00mm Pitch High-Reliability Connector - Datamate Mix-Tek

  • Jackscrews + 3.5mm board mount (with slotted nuts), 6 x signal and 4 x power contacts assembled for vertical PCB connection. 3mm length PC Tail signal contacts, 3.5mm length PC Tail power contacts.

  • Gold finish on contact area and termination. For spare board mount nuts, order M80-2130000B.

  • For complete pin numbering or pin out information, see Component Specification C005XX.

View Technical Details & Downloads


Checking stock availability...

Check Availability

Further Details

Jump To:

Technical Details

Product Characteristics

Materials

Dimensions

Downloads

Technical Documentation

Environmental Compliance

Technical Details

Product Characteristics

  • End Stackable:

    No

  • Style of Jackscrews:

    Internal Thread Jackscrew with Board Mount Stud and Slotted Nuts (Standard Gender)

  • Mating Pin Size:

    Ø0.5mm (signal)

  • Number of Rows:

    Mixed

  • Connector Orientation:

    Vertical

  • Side Stackable:

    No

  • Number of Special (Power or Coax) Contacts:

    4

  • Number of Signal Contacts:

    6

  • Operating Temperature:

    -55°C to +125°C

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with Exemption 6c

  • Current Rating:

    Signal = 3.3A max individual contact, 3A max simultaneous; Power = 20A max per contact

  • Soldering Data:

    Max Solder Temperature: 260°C for 10 seconds

  • Polarised:

    Yes

  • Cuttable:

    No

Materials

  • Finish / Plating on Contact Surface:

    Gold

  • Housing Material:

    PPS

  • Base Material of Contact:

    Phosphor Bronze (signal), Beryllium Copper (power)

  • Flammability Rating:

    UL94V-0

  • Packaging Style:

    Single Pack

  • Finish / Plating on Termination:

    Gold

  • Housing Colour:

    Black

Dimensions

  • Contact Pitch:

    2.00mm/4.00mm (0.079"/0.157")

  • Weight:

    2.702g

  • Dimensions:

    32.00 x 6.00 x 9.05

  • Thread Size:

    M2

  • PC Tail Length:

    3.30mm and 3.50mm

  • Height of Connector above PCB:

    5.55mm

Downloads

    Technical Documentation

  • Outgassing data for Harwin products (plastics)

  • Environmental Compliance

  • RoHS - M80-5T10605M2-04-331-00-000

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Environmental Legislation Statement - includes all material legislations

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
