2.00mm/4.00mm Pitch High-Reliability Connector - Datamate Mix-Tek

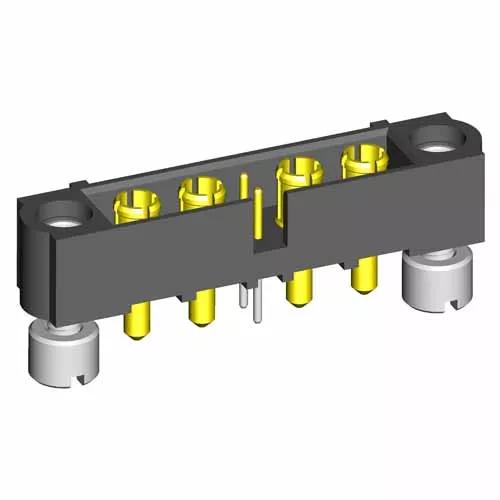

Jackscrews + 3.5mm board mount (with slotted nuts), 2 x signal and 4 x power contacts assembled for vertical PCB connection. 3mm length PC Tail signal contacts, 3.5mm length PC Tail power contacts.
Signal: Gold finish on contact area, Tin/Lead finish on termination. Power: Gold finish on contact area and termination. For spare board mount nuts, order M80-2130000B.
For complete pin numbering or pin out information, see the Component Specification C005XX.
View Technical Details & Downloads
Checking stock availability...
Check Availability
Related Products
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Technical Details
Product Characteristics
End Stackable:
No
Style of Jackscrews:
Internal Thread Fixing with Board/Front Panel Mount
Mating Pin Size:
Ø0.5mm (signal)
Number of Rows:
Mixed
Connector Orientation:
Vertical
Country of Origin:
GB
Side Stackable:
No
Number of Power/Coax Contacts:
4
Number of Signal Contacts:
2
Operating Temperature:
-55°C to +125°C
RoHS Status:
Not RoHS Compliant (2015/863/EU)
Current Rating:
Signal = 3.3A max individual contact, 3A max simultaneous; Power = 20A max per contact
Soldering Data:
Max Solder Temperature: 235°C for 5 seconds
Polarised:
Yes
Cuttable:
No
Materials
Finish / Plating on Contact Surface:
Gold
Housing Material:
PPS
Base Material of Contact:
Phosphor Bronze (signal), Beryllium Copper (power)
Flammability Rating:
UL94V-0
Packaging Style:
Tube
Finish / Plating on Termination:
Tin/Lead (signal), Gold (power)
Housing Colour:
Black
Dimensions
Contact Pitch:
2.00mm/4.00mm (0.079"/0.157")
Weight:
2.555g
Dimensions:
28.00 x 6.00 x 9.05
Thread Size:
M2
PC Tail Length:
3.30mm and 3.50mm
Height of Connector above PCB:
5.55mm
Downloads
Technical Drawing / Datasheet - M80-5T10222M2-02-331-02-331.pdf
C005XX Component Specification - Datamate M80 and M83 Series (2.00mm + 4.00mm pitch High-Reliability)
Outgassing data for Harwin products (plastics)
Plating thickness on Datamate signal contacts & T-Contact
Plating thickness on Datamate power and coax contacts
Catalog page - Datamate Mix-Tek Pin Numbering + Mating Profiles
Product Training Module - Overview Guide to the Datamate range + 2 & 4mm pitch High-Reliability
Product Training Module - Guide to Datamate Latches (L-Tek) + Jackscrews (J-Tek) and 101Lok
Datamate J-Tek and Mix-Tek - list of currently available Jackscrew types and their mating jackscrews
Product Datasheet - Datamate Mix-Tek range (HRi)
Test Report HT001 - Datamate Mechanical Endurance - number of cycles + up to 10 +000
Test Report HT002 - Datamate Voltage Proof + Voltage Flashover + and Insulation Resistance
Test Report HT004 - Datamate J-Tek Environmental - Vibration + Shock + Bump + Acceleration and other tests
Test Report HT015 - Datamate Environmental (Vibration + Shock + Bump) - J-Tek and 101Lok
Test Report HT017 - Datamate L-Tek Contact Resistance after 3 and 15 years Artificial Aging
Test Report HT019 - Datamate Frequency Testing to EIA-364-108-2000(2007) + USB2.0
Test Report HT020 - Datamate Mix-Tek Special Contacts - Environmental + Mechanical and Electrical
Test Report HT025 - Datamate L-Tek Environmental - Detailed Vibration + Shock and Bump
Test Report HT035 - Datamate Mix-Tek Power Connectors - Mechanical and Electrical
Test Report HT078 - Datamate Mix-Tek 20A Power testing
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement - includes all material legislations
RoHS - M80-5T10222M2-02-331-02-331
