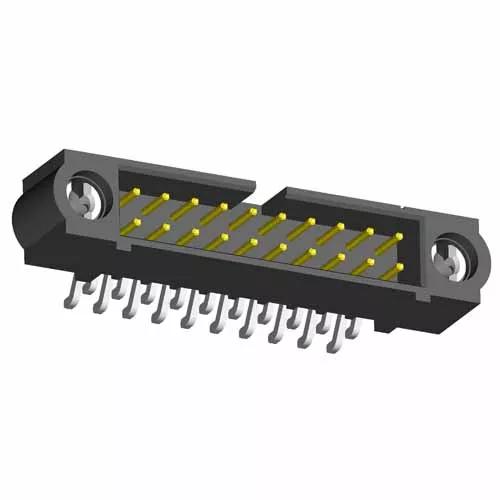

13+13 Pos. Male DIL Horizontal SMT Conn. 101Lok
2.00mm Pitch High-Reliability Connector - Datamate J-Tek
Made to order
5 similiar products View products
Samacsys account required
No login is required
EU RoHS Status:
Surface Mount (SMT)
Mating Pin Size:
Dependent on mating contact
-55°C to +125°C
Max Solder Temperature: 260°C for 10 seconds
Style of Jackscrews:
101Lok Bayonet Receptacle Fixing
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Termination:
100% Tin over Nickel
Finish / Plating on Contact Surface:
Base Material of Contact:
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
36.00 x 10.10 x 6.00
Height of Connector above PCB:
