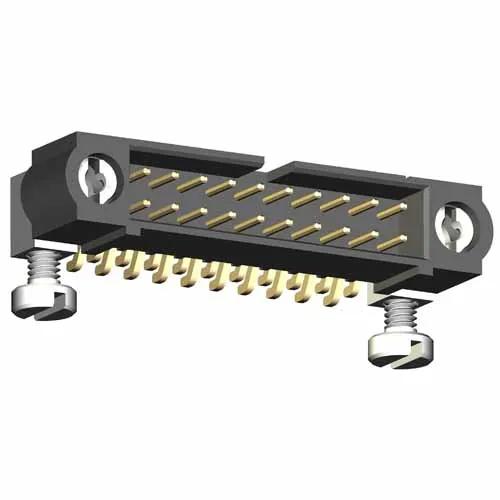

11+11 Pos. Male DIL Horizontal SMT Conn. 101Lok
2.00mm Pitch High-Reliability Connector - Datamate J-Tek
- Double Row, Surface Mount connector, 101Lok retainers with 5mm board mount – 22 contacts (11+11).
- Gold finish on contact area, Tin finish on termination. Slotted bolts provided for assembly to board mount jackscrews. For spare board mount bolts, order M80-2270000B.
- For complete pin numbering or pin out information, see Component Specification C005XX.
EU RoHS Status:
Surface Mount (SMT)
Mating Pin Size:
Dependent on mating contact
-55°C to +125°C
Max Solder Temperature: 260°C for 10 seconds
Style of Jackscrews:
101Lok Bayonet Receptacle with Board Mount Stud
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Termination:
100% Tin over Nickel
Finish / Plating on Contact Surface:
Base Material of Contact:
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
32.00 x 10.10 x 6.00
Height of Connector above PCB:
Low availability or made to order: This product is typically manufactured to order. When out of stock, minimum order quantities may apply.
* Please request minimum quantities, lead times and pricing from an authorized distributor.
Questions & Answers Ask a Question
Are the board/panel mount bolts supplied with this connector, or do I have to order them separately?
Yes, these connectors are supplied with the board/panel mount bolts – they will come packaged in a separate bag. If you need some spares, you can use part number M80-2270000B to order more.
What torque value should be used for these jackscrews?
The torque value for board or panel mounting is 21±2cmN. This value is given in the Component Specification C005xx (page 14).
