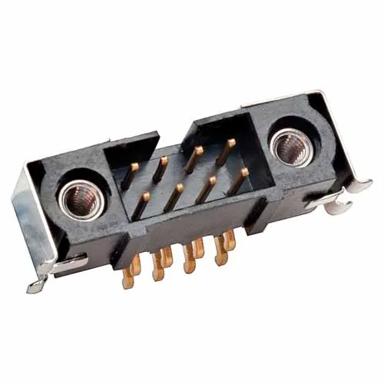

M80-5S20805MQ
4+4 Pos. Male DIL Horizontal SMT Conn. Jackscrews
2.00mm Pitch High-Reliability Connector - Datamate J-Tek
Made to order
7 similiar products View products
Samacsys account required
No login is required
Product Description
- Double Row, Surface Mount connector, Jackscrews (internal) and Surface Mount hold-down tabs – 8 contacts (4+4).
- Gold finish on contact area and termination. For spare SMT hold-down retaining nuts, order M80-2130000B.
- For complete pin numbering or pin out information, see Component Specification C005XX.
Samacsys account required
No login is required
Technical Details
Specification
EU RoHS Status:
Contact Pitch:
2.00mm (0.079")
Contact Gender:
Male/Plug
Connector Orientation:
Horizontal
Connection Type:
Surface Mount (SMT)
Mating Pin Size:
Ø0.5mm
Current Rating:
Dependent on mating contact
Operating Temperature:
-55°C to +125°C
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Style of Jackscrews:
Internal Thread Jackscrew with SMT Solder Hold-Down (Standard Gender)
Polarising Features:
Yes
End Stackable:
No
Side Stackable:
No
Can be cut to another size:
No
Number of Rows:
2
Number of Signal Contacts:
8
Materials
Finish / Plating on Termination:
Gold
Finish / Plating on Contact Surface:
Gold
Base Material of Contact:
Brass
Housing Material:
PPS
Housing Colour:
Black
Housing Material UL Rating:
UL94V-0
Packaging Style:
Tube
Dimensions
Individual Part Weight:
1.91g
Overall Dimensions (L x W x D) in mm:
18.00 x 10.10 x 6.20
Thread Size:
M2
Height of Connector above PCB:
6.20mm
Mating Profiles:
Frequently Asked Questions Ask a Question
What torque value should be used for these jackscrews?
The torque value for mating jackscrews is 23cmN max. This value is given in the Component Specification C005xx (page 14).
