M80-5S20805M5-00-000-02-33A
8+2 Pos. Male Signal+Power Horizontal SMT Conn. Jackscrews
2.00mm/4.00mm Pitch High-Reliability Connector - Datamate Mix-Tek
Made to order
2 similiar products View products
Samacsys account required
No login is required
Product Description

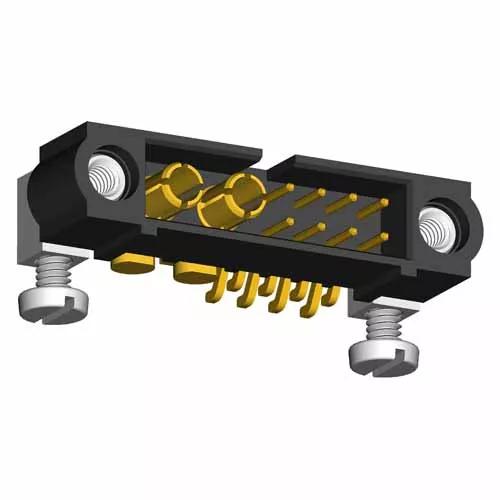

- Jackscrews + 5mm board mount (with slotted bolt), 8 x signal and 2 x power contacts assembled for horizontal PCB connection. Surface Mount signal and power contacts.
- Gold finish on contact area and termination. For spare board mount bolts, order M80-2270000B.
- For complete pin numbering or pin out information, see Component Specification C005XX.
Samacsys account required
No login is required
Technical Details
Specification
EU RoHS Status:
Contact Pitch:
2.00mm/4.00mm (0.079"/0.157")
Contact Gender:
Male/Plug
Connector Orientation:
Horizontal
Connection Type:
Surface Mount (SMT)
Mating Pin Size:
Ø0.5mm (signal)
Current Rating:
Signal = 3.3A max individual contact, 3A max simultaneous; Power = 20A max per contact
Operating Temperature:
-55°C to +125°C
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Style of Jackscrews:
Internal Thread Jackscrew with Slotted Board Mount Bolts (Standard Gender)
Polarising Features:
Yes
End Stackable:
No
Side Stackable:
No
Can be cut to another size:
No
Number of Rows:
Mixed
Number of Signal Contacts:
8
Number of Special (Power or Coax) Contacts:
2
Materials
Finish / Plating on Termination:
Gold
Finish / Plating on Contact Surface:
Gold
Base Material of Contact:
Brass (signal), Beryllium Copper (power)
Housing Material:
PPS
Housing Colour:
Black
Housing Material UL Rating:
UL94V-0
Packaging Style:
Tube
Dimensions
Individual Part Weight:
3.052g
Overall Dimensions (L x W x D) in mm:
26.00 x 10.10 x 6.00
Thread Size:
M2
Height of Connector above PCB:
6.00mm
Mating Profiles:
Frequently Asked Questions Ask a Question
Are the board/panel mount bolts supplied with this connector, or do I have to order them separately?
Yes, these connectors are supplied with the board/panel mount bolts – they will come packaged in a separate bag. If you need some spares, you can use part number M80-2270000B to order more.
Was this answer useful?
What torque value should be used for these jackscrews?
The torque value for board or panel mounting is 21±2cmN. The torque value for mating jackscrews is 23cmN max. Both values are given in the Component Specification C005xx (page 14).
Was this answer useful?
