Active

M80-5S20642MD

3+3 Pos. Male DIL Horizontal SMT Conn. 101Lok

2.00mm Pitch High-Reliability Connector - Datamate J-Tek

Double Row, Surface Mount connector, 101Lok retainers with 5mm board mount – 6 contacts (3+3).
Gold finish on contact area, Tin finish on termination. Slotted bolts provided for assembly to board mount jackscrews. For spare board mount bolts, order M80-2270000B.
For complete pin numbering or pin out information, see Component Specification C005XX.

Add to Basket

Availability

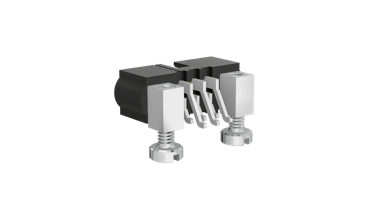

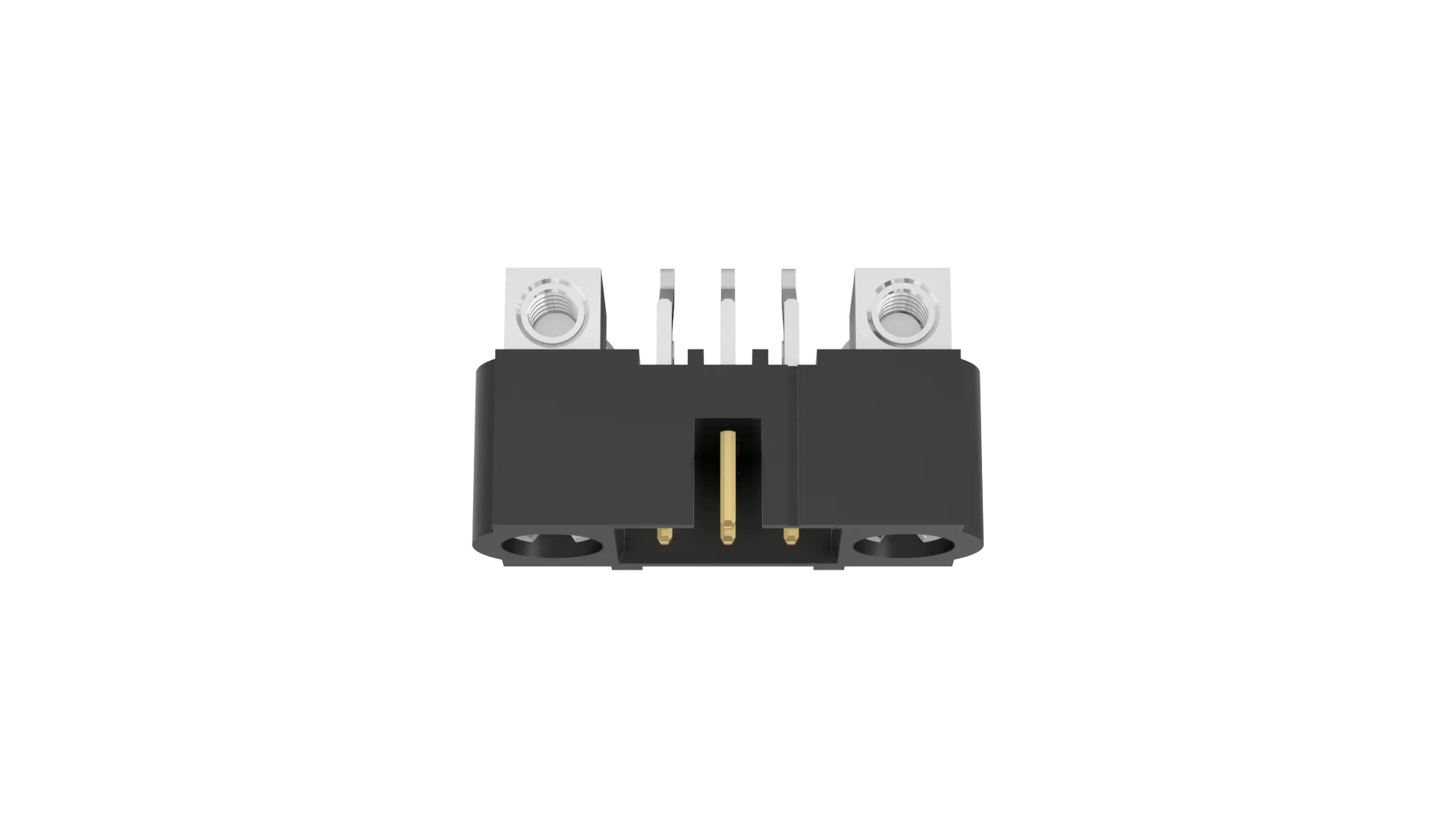

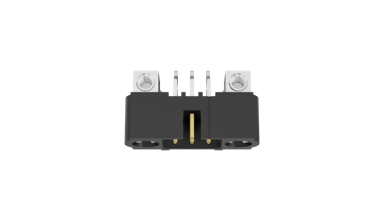

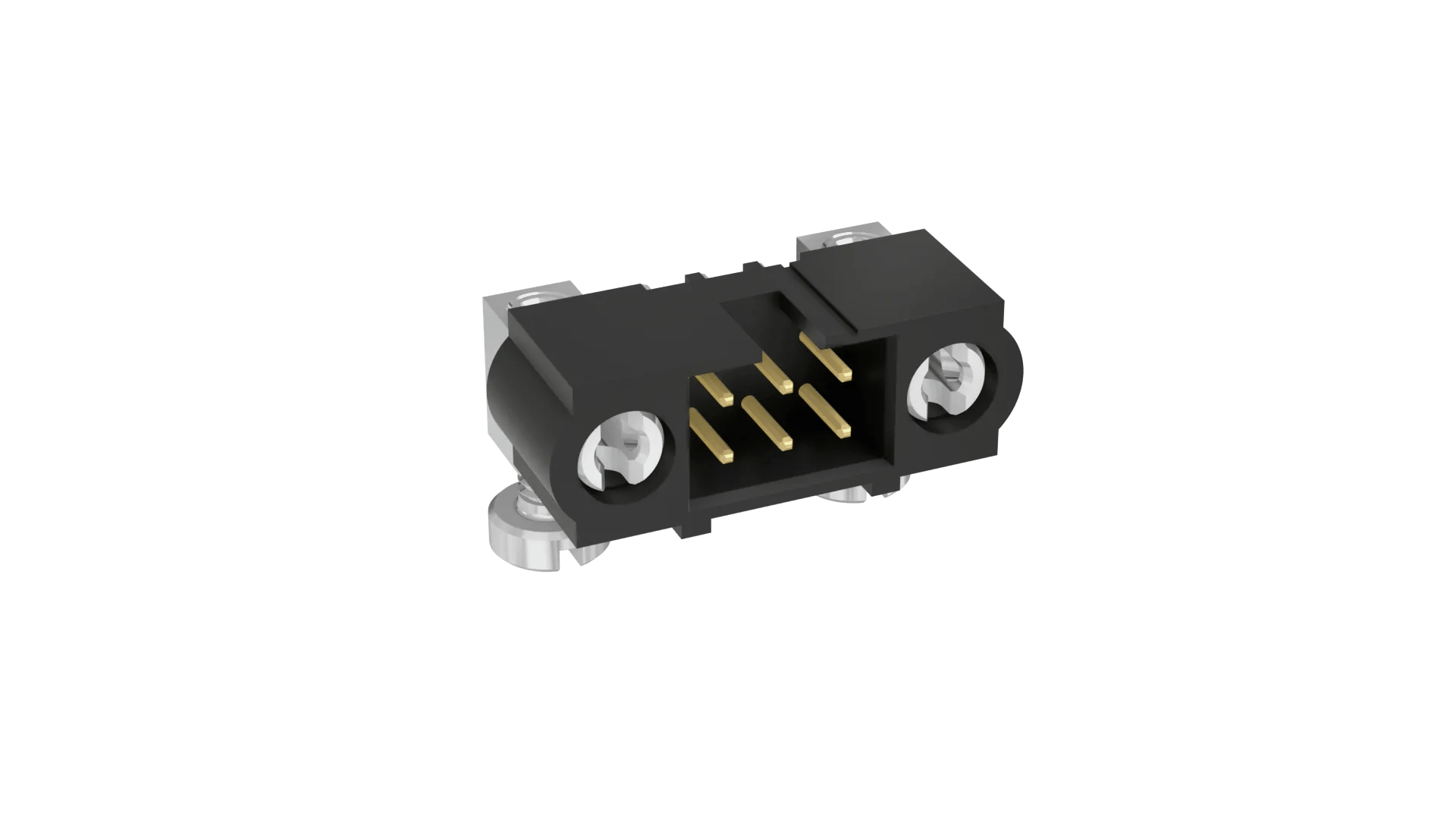

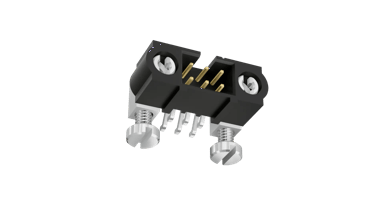

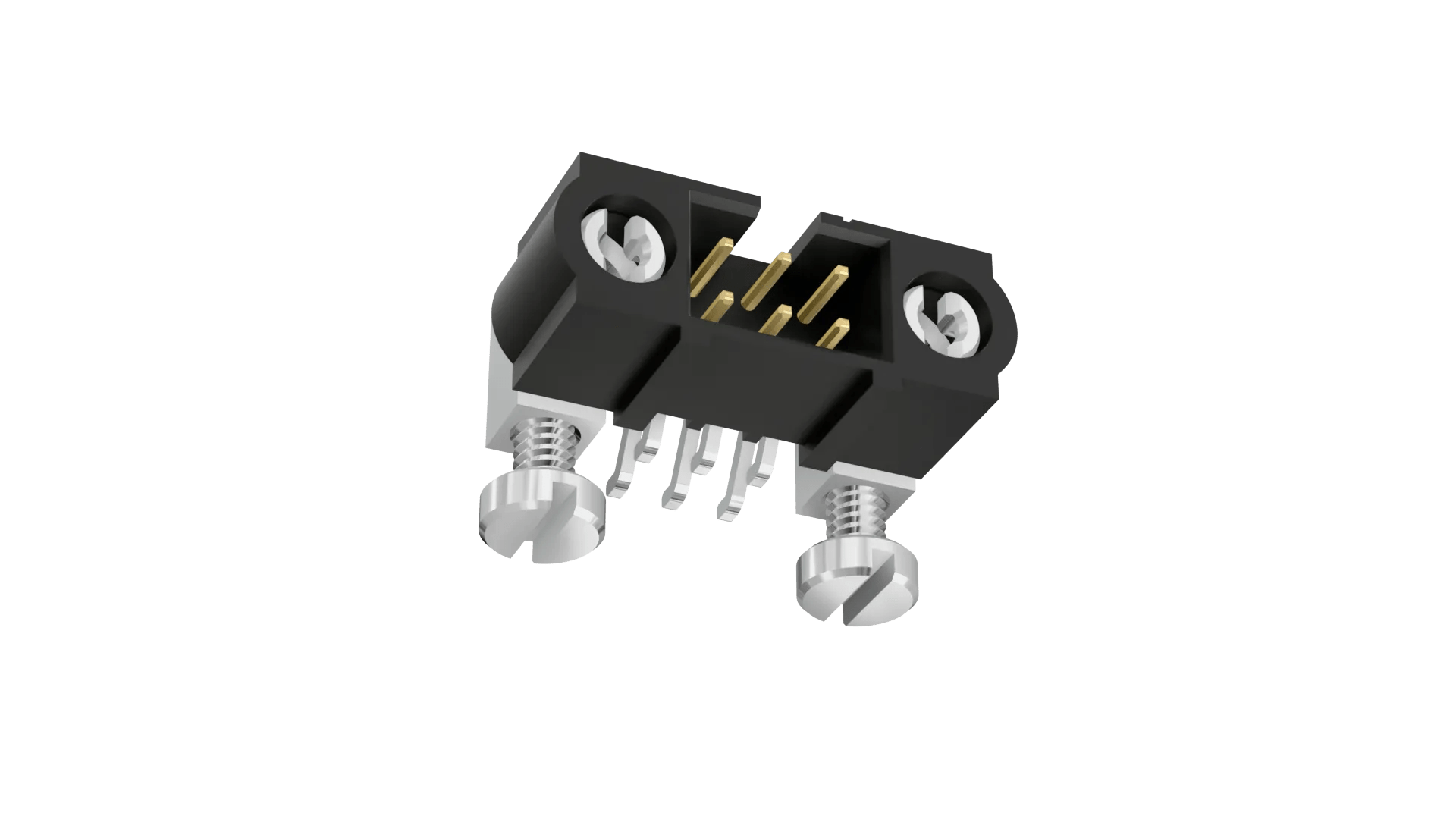

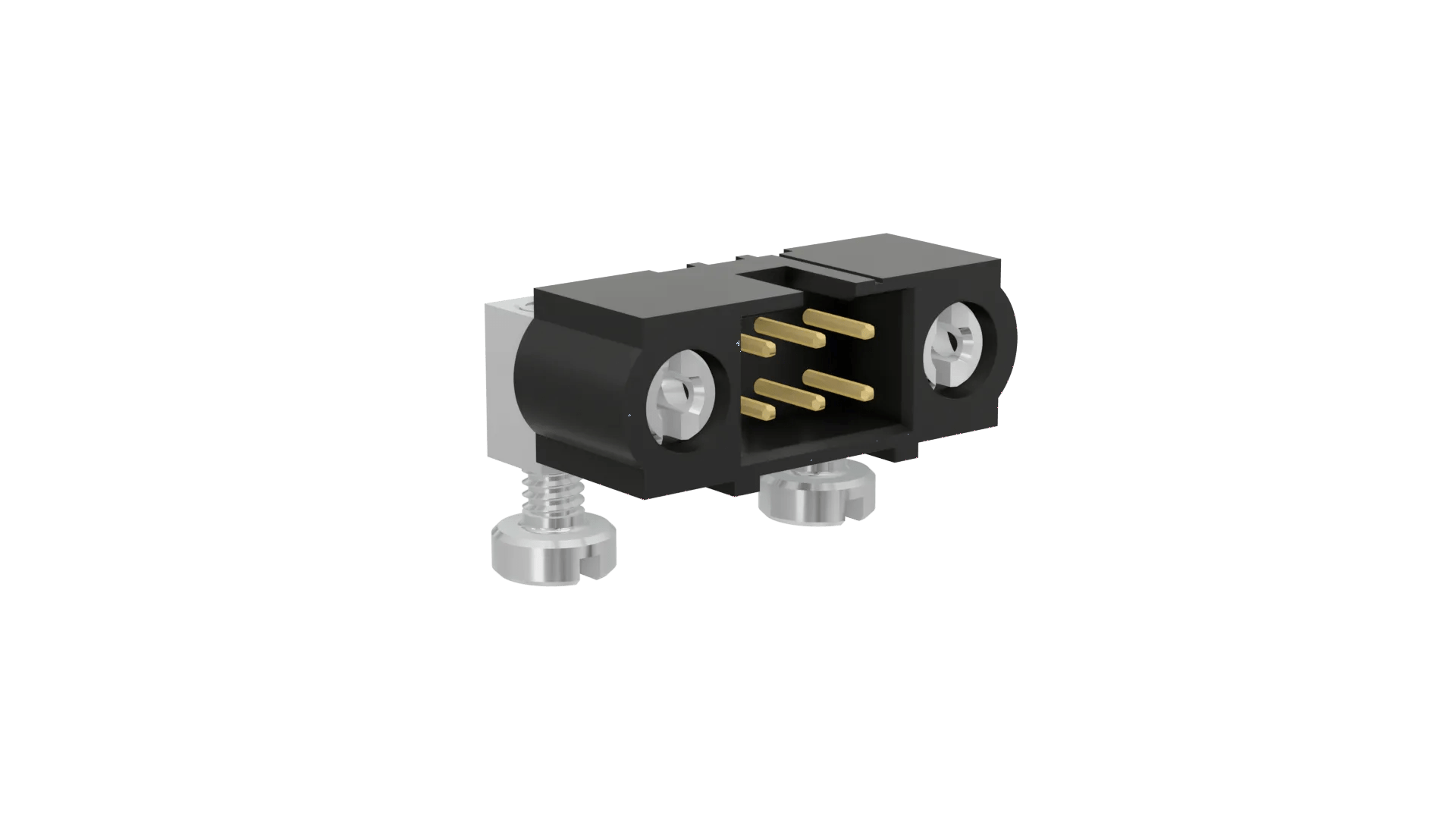

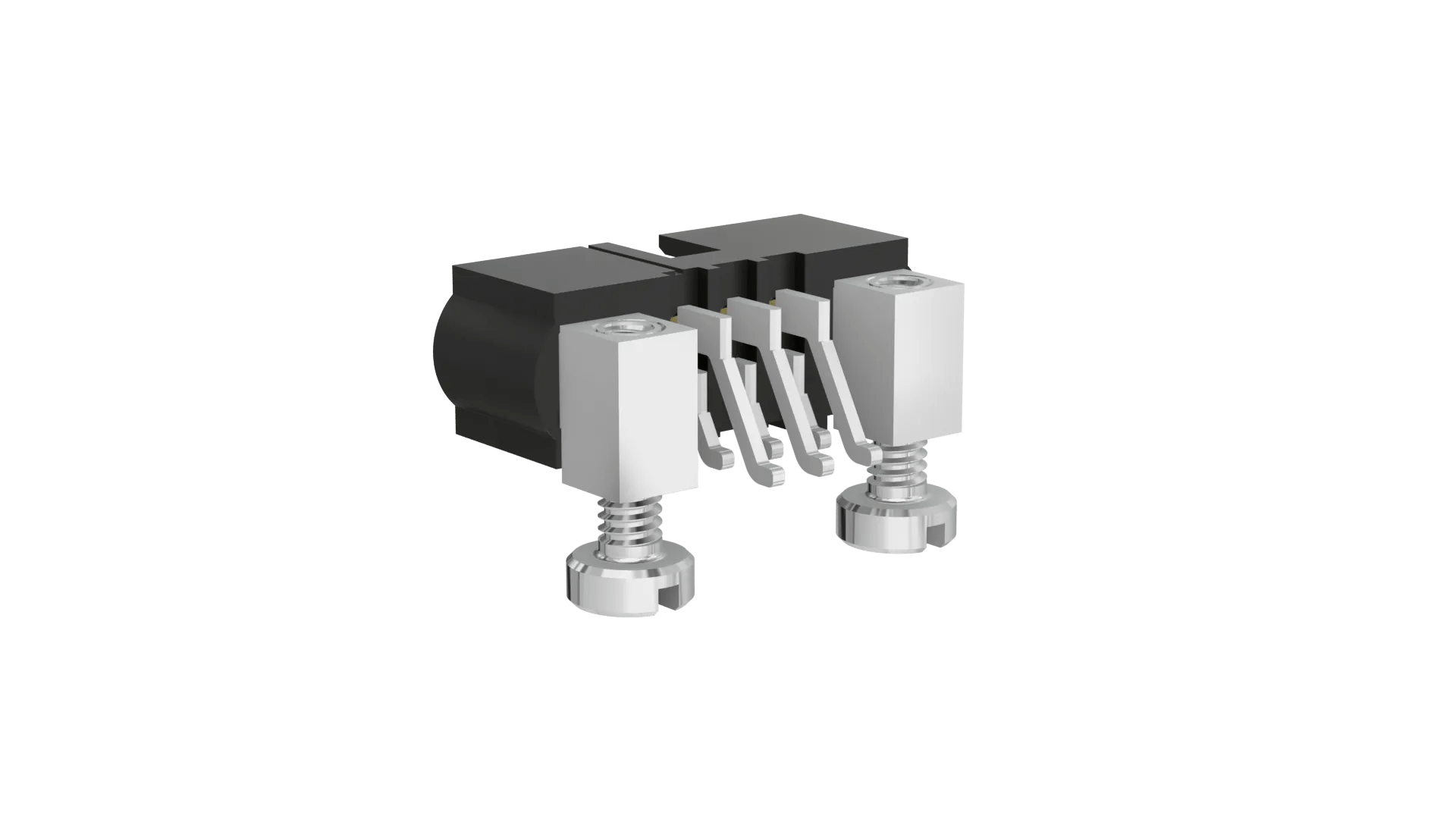

M80-5S20642MD - 3+3 Pos. Male DIL Horizontal SMT Conn. 101Lok

Representative image of product family

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with no Exemption required

Contact Pitch:

2.00mm (0.079")

Contact Gender:

Male/Plug

Connector Orientation:

Horizontal

Connection Type:

Surface Mount (SMT)

Mating Pin Size:

Ø0.5mm

Current Rating:

Dependent on mating contact

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Style of Jackscrews:

101Lok Bayonet Receptacle with Board Mount Stud

Polarising Features:

Yes

End Stackable:

Side Stackable:

Can be cut to another size:

Number of Rows:

Number of Signal Contacts:

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Brass

Housing Material:

PPS

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Individual Part Weight:

1.921g

Overall Dimensions (L x W x D) in mm:

16.00 x 10.10 x 6.00

Thread Size:

Height of Connector above PCB:

6.00mm

Mating Profiles:

Catalog page - Datamate J-Tek Mating Profiles

Availability

20 in stock

Questions & Answers Ask a Question

Are the board/panel mount bolts supplied with this connector, or do I have to order them separately?

Yes, these connectors are supplied with the board/panel mount bolts – they will come packaged in a separate bag. If you need some spares, you can use part number M80-2270000B to order more.

What torque value should be used for these jackscrews?

The torque value for board or panel mounting is 21±2cmN. This value is given in the Component Specification C005xx (page 14).
